ENGINE COMPARTMENT

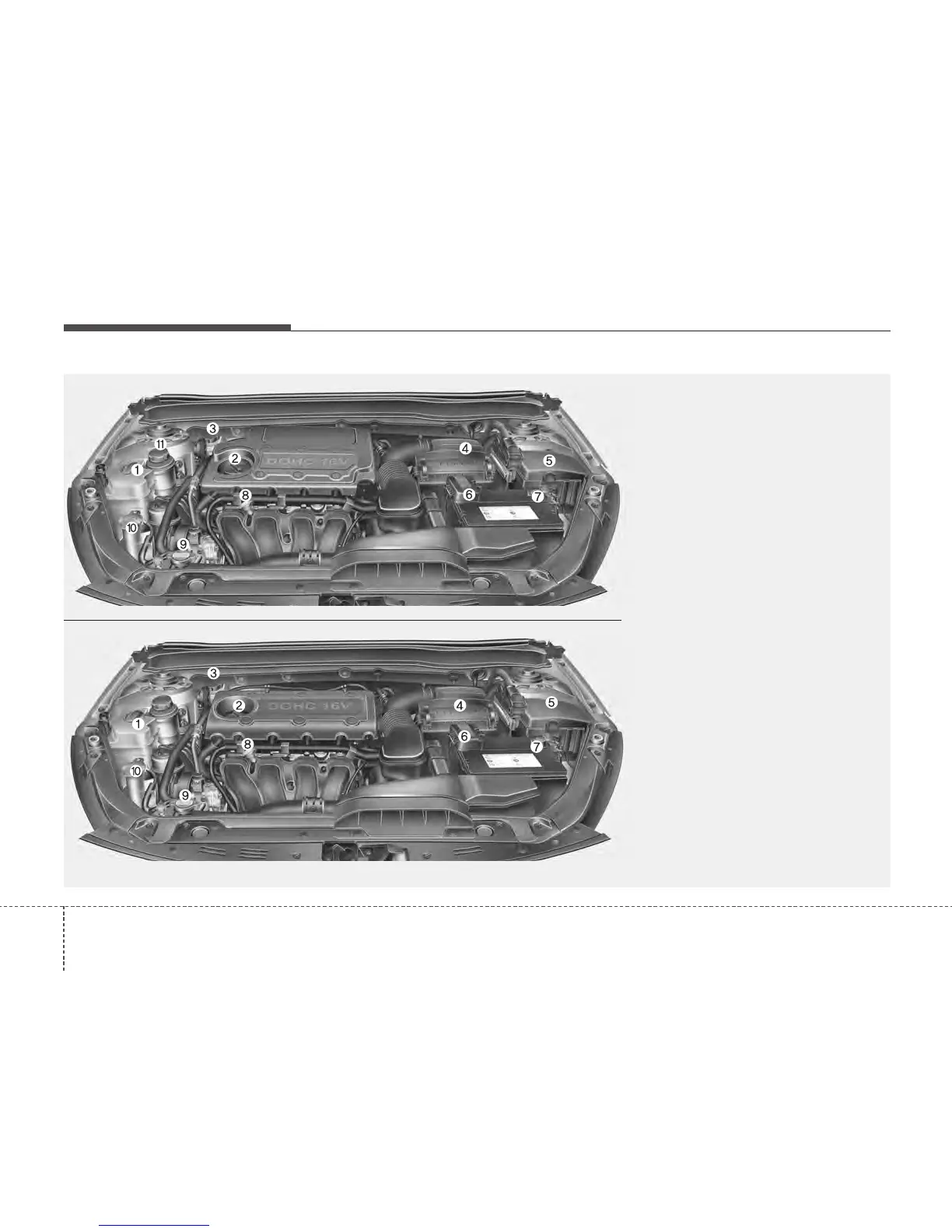

OTF070001R/OTF070071R
1. Engine coolant reservoir...................7-37
2. Engine oil filler cap ...........................7-34
3. Brake/Clutch* fluid reservoir .............7-39
4. Air cleaner.........................................7-44
5. Fuse box ...........................................7-65
6. Positive battery terminal ...................7-51
7. Negative battery terminal..................7-51
8. Engine oil dipstick.............................7-34
9. Radiator cap .....................................7-38
10. Windscreen washer fluid reservoir..7-42
11. Power steering fluid reservoir*........7-40
* : if equipped
■ Petrol Engine (THETA 2.0L)
❈ The actual engine compartment in the vehicle may differ from the illustration.
■ Petrol Engine (THETA 2.4L)
