Maintenance

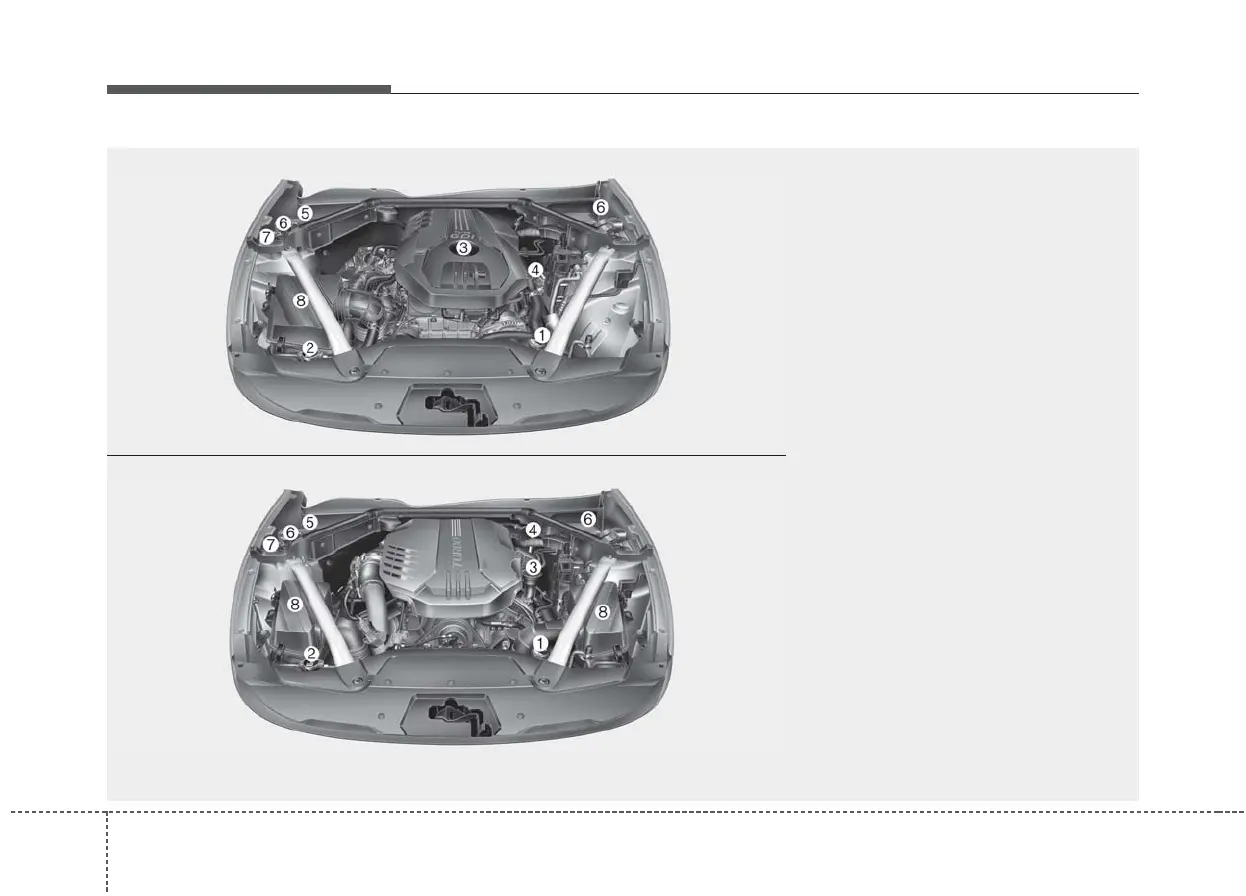

ENGINE COMPARTMENT
OCK077001R/OCK077002R
■■
THETA II 2.0L T-GDI Engine (Petrol)
❈ The actual engine room in the vehicle may differ from the illustration.
❈ The battery is in the luggage room.
■■
Lambda II PE 3.3L T-GDI Engine (Petrol)
1. Engine coolant reservoir
2. Radiator cap
3. Engine oil filler cap
4. Engine oil dipstick
5. Brake fluid reservoir
6. Fuse box
7. Windscreen washer fluid reservoir
8. Air cleaner
