CXRC REMOTE BASS INSTALLATION
(See page 6. CXRC not included.)
back view
AMP1
AMP2
SUB
L R S
SL R
GND REM +12V

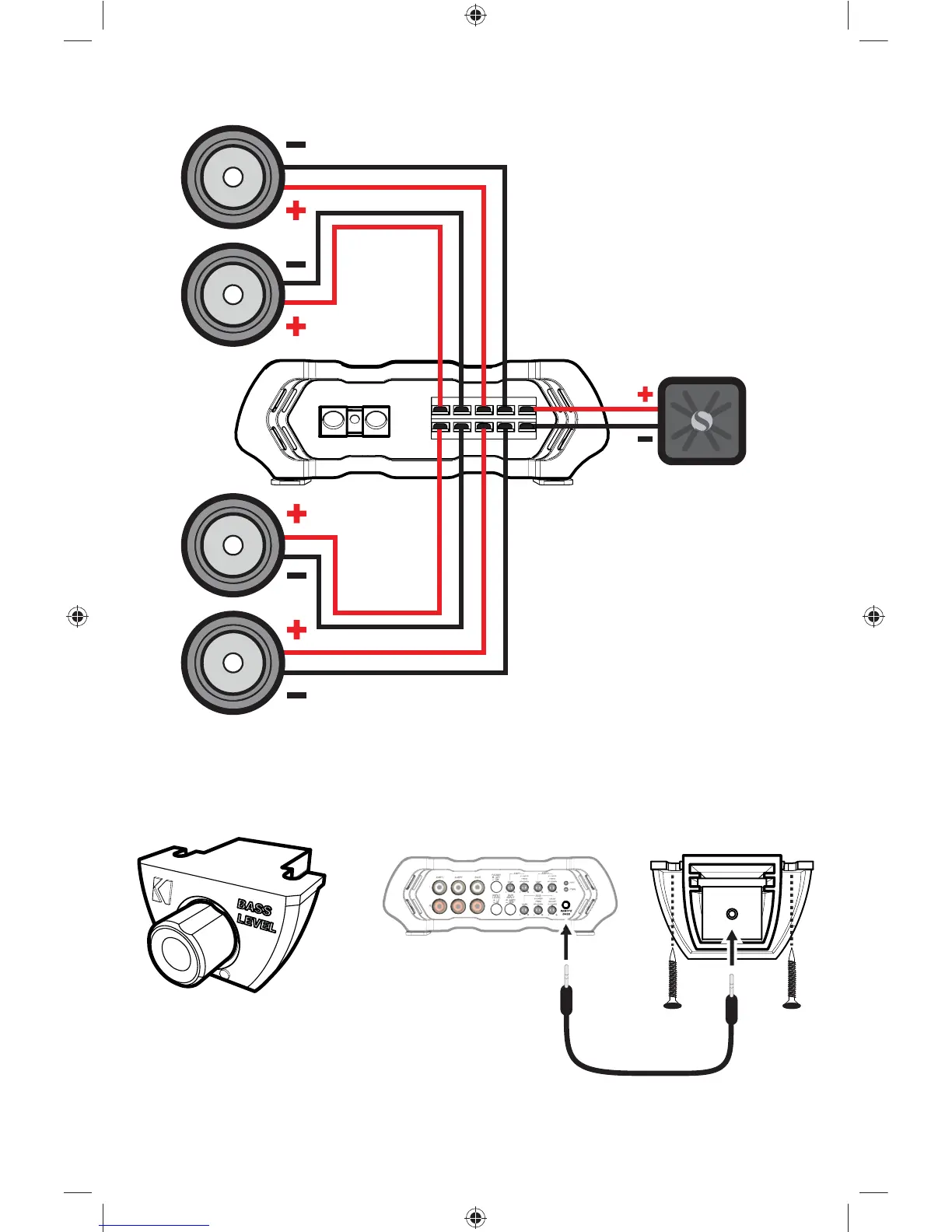

FOUR CHANNEL OPERATION with SUBWOOFER
minimum impedance of 2 ohms per channel (AMP1, AMP2, and SUB channels)
Surface-mount the CXRC remote
using the supplied screws.
Remote cable passes audio; do not
run cable parallel to power wires.
Connect the supplied 1/8th inch [3.5mm] patch cable to the
CXRC remote and the Remote Bass jack on the amplifi er
speakers
speakers
woofer
