5
AMP1
AMP2
SUB
L R S
SL R

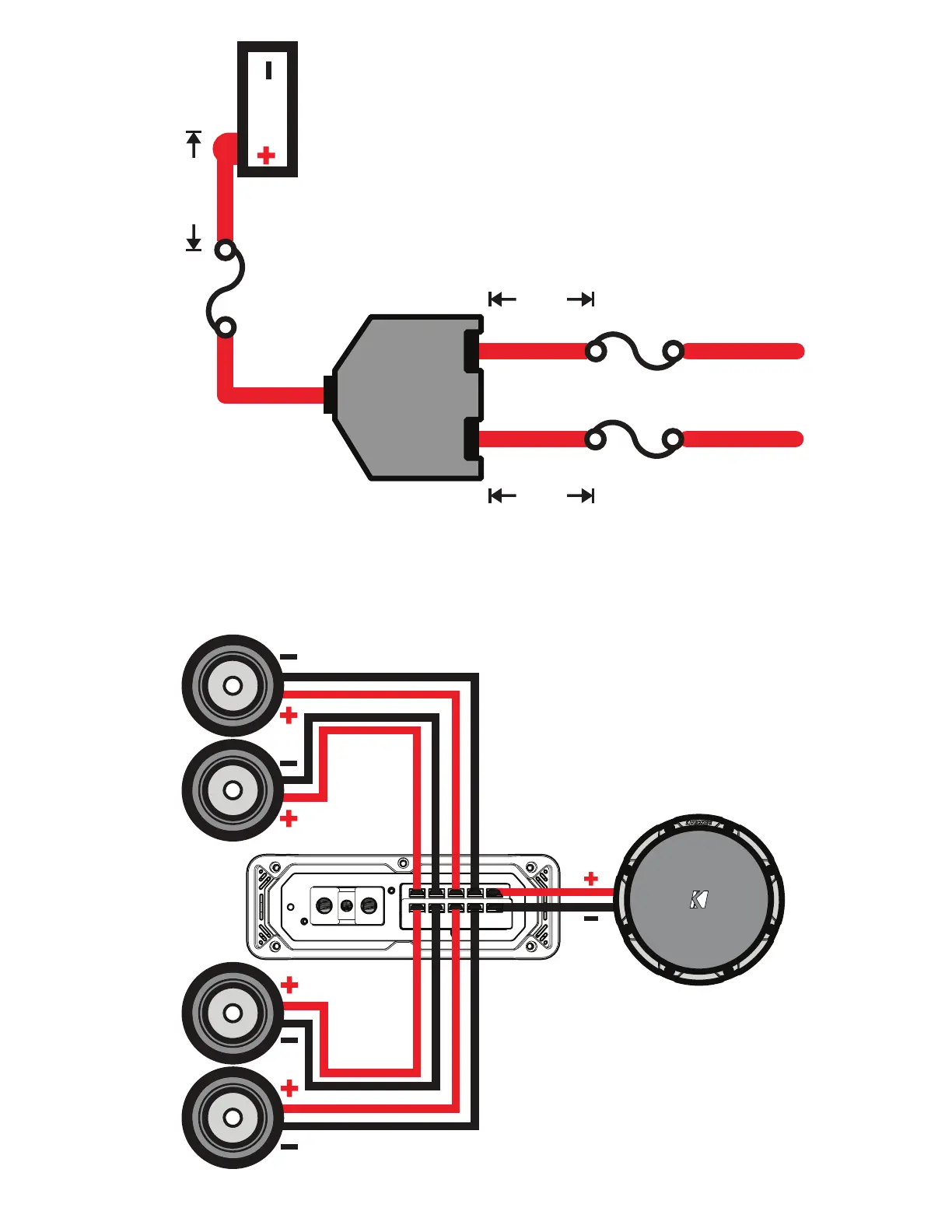

FOUR CHANNEL OPERATION with SUBWOOFER
minimum impedance of 2 ohms per channel (AMP1, AMP2, and SUB channels)
speakers
speakers
woofer
external fuse
external fuses
distribution block
≤18”
(45cm)
≤18”
(45cm)
≤18”
(45cm)
12V
For multiple amplifi er installations where distribution blocks
are used, each amplifi er should have its proper-rated fuse, or
breaker, installed between the amplifi er and the distribution
block within eighteen inches of the block, or on the distribution
block if it provides for fusing. The primary power wire should
also be fused between the battery and distribution block, within
eighteen inches of the battery’s positive terminal, with a fuse
or breaker rated at least to the sum of the individual amplifi er’s
fuse values
2016 CX 5-Channel Amp Rev C.indd 5 9/29/2015 4:03:31 PM
