Kicker CXA600.5 User Manual

4

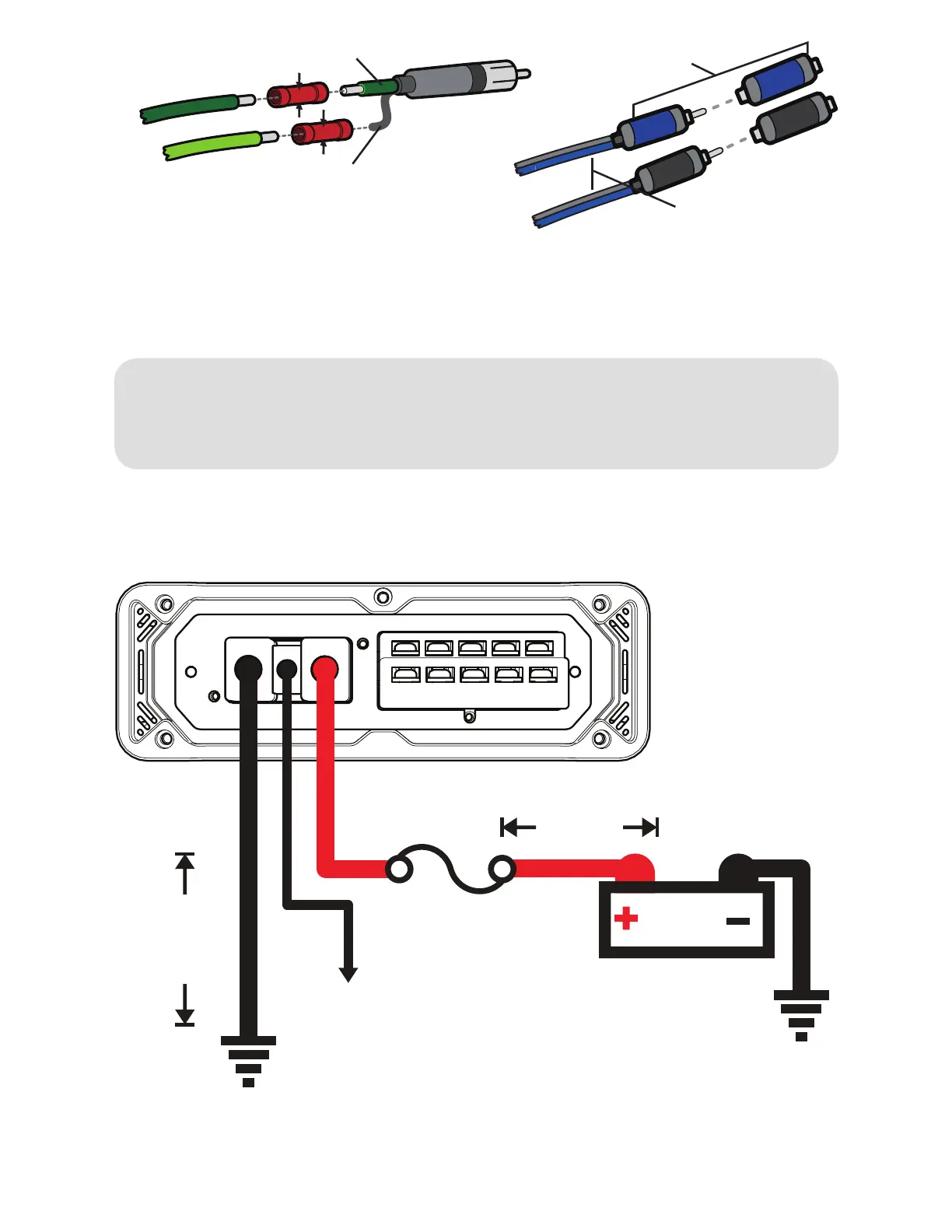

POWER WIRING
12V
GND REM +12V
battery
external fuse
remote turn-on
(see page 6)
bare-metal
chassis ground
bare-metal
chassis ground
≤18”
(45cm)
≤24”
(60cm)
Model External Fuse
(sold separately)
Power/Ground Wire KICKER Wiring Kit
CXA600.5 1 x 80 Ampere 4 Gauge PK4, CK44, ZCK44
Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your amplifi er. If you
ever need to remove the amplifi er from the vehicle after it has been installed, the ground wire should be the last
wire disconnected from the amplifi er--just the opposite as when you installed it.
source unit
high-level speaker
outputs
to amplifi er
shield
+
–
core conductor
OR
KICKER KISL (optional)
from source unit high-
level speaker outputs
to amplifi er
