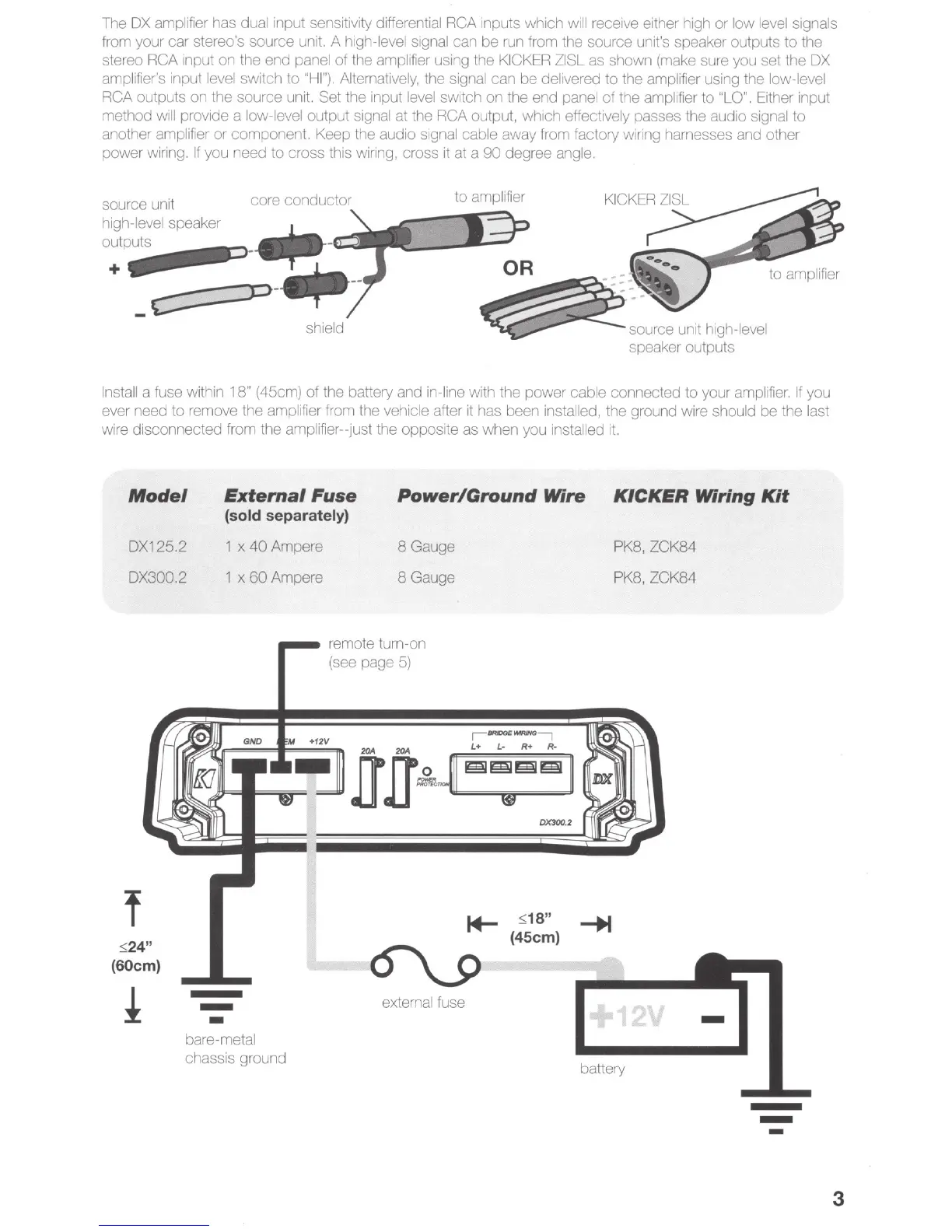

The
OX
amplifier has dual input sensitivity differential RCA 1nputs which will
rece1ve
either high or low level signals
from your car stereo's source unit. A high-level signal can
be
run from the source unit's speaker outputs to the
stereo RCA input on the end panel
of
the amplifier using the KICKER ZISL as shown (make sure you set the
OX
amplifier's
1nput
level switch to
"HI").
Alternatively, the signal can
be
delivered
to
the amplifier using the low-level
RCA outputs
on
the source unit. Set the input level switch on the end panel
of
the amplifier to "LO". Either input
method will provide a low-level output signal at the RCA output, which effectively passes the audio signal
to
another amplifier or component. Keep the audio signal cable away from factory wiring harnesses and other
power
wiring.
If
you
need to cross this wiring, cross it at a
90
degree angle.
source unit
high-level speaker
outputs
+
core conductor
to amplifier
shield
Install a fuse within 18" (45cm)
of
the battery and in-line with the
power
cable connected to your amplifier.
If
you
ever need to remove the amplifier from the vehicle after it has been installed, the ground wire should be the last
wire disconnected
frorr~
the amplifier--just the opposite
as
when you installed it.
Model
External
Fuse
(sold separately)
Power/Ground
Wire KICKER Wiring
Kit
OX125.2
OX300.2
~
24
"
(60cm)
1 x
40
Ampere
1 x
60
Ampere
-
-
bare-metal
chassis ground
8 Gauge
8 Gauge
remote turn-on
(see page
5)
external fuse
DX300
.2
I+-
~
18
"
(45cm)
PKB,
ZCK84
PKB,
ZCK84
+12V
battery
-
-
-
3
To Next Page
