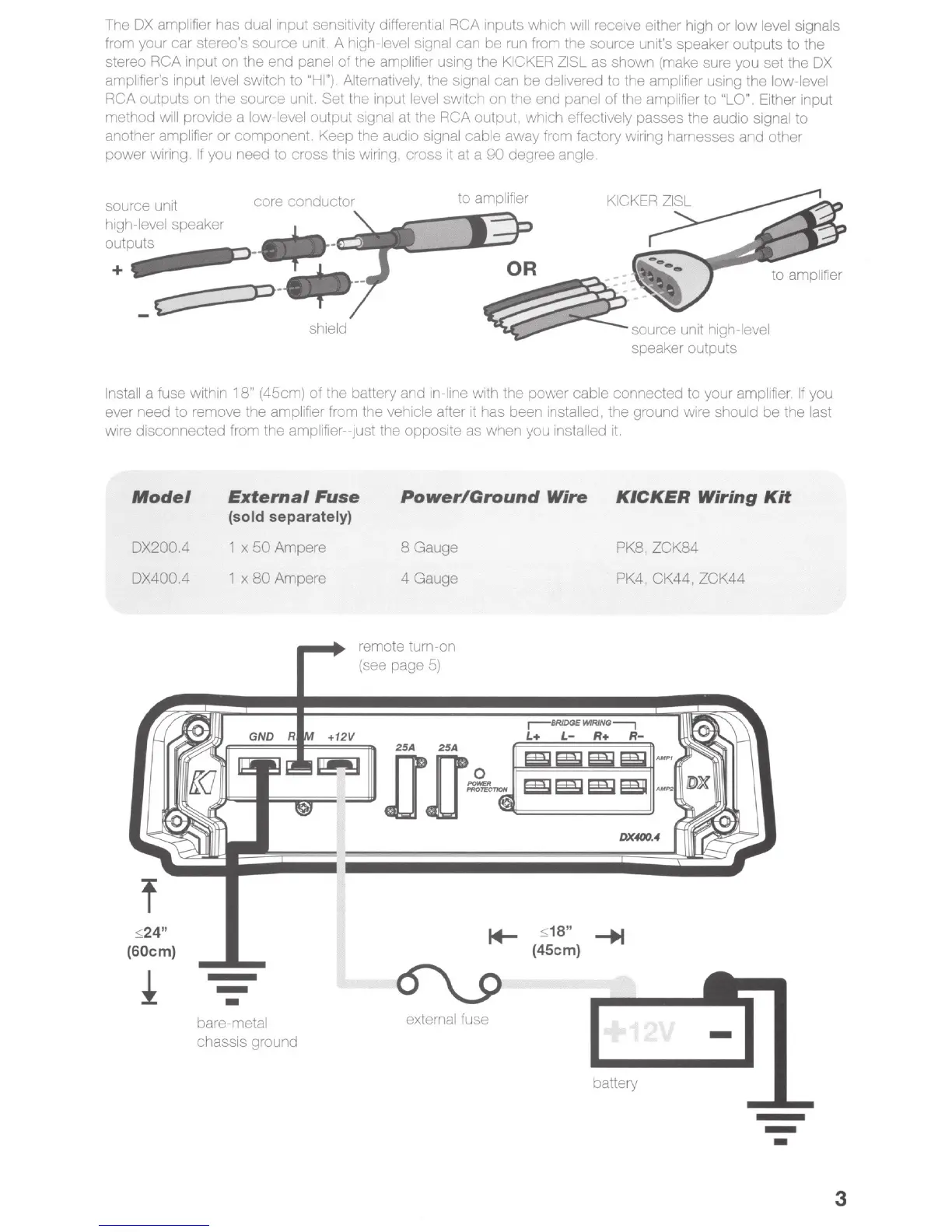

The
DX
amplifier has dual input sensitivity differential RCA inputs which will receive either high or low level signals
from your car stereo's source unit. A high-level signal can
be
run from the source unit's speaker outputs
to
the
stereo RCA input on the end panel of the amplifier using the KICKER ZISL as shown (make sure you set the
DX
amplifier's input level switch to
"HI")
Alternatively the signal can be delivered to the amplifier using the low-level
RCA outputs on the source unit. Set the input level
sw1tch
on the end panel of the amplifier to "LO". Either input
method will provide a low-level output signal at the RCA output
wh1ch
effectively passes the audio signal to
another amplifier or component Keep the audio signal cable away from factory wiring harnesses and other
power wiring
If
you need
to
cross this wiring cross
1t
at a
90
degree angle.
source
un1t
high-level speaker
outputs
+
core conductor
shield
to amplifier
OR
~
sourC€
unit high-level
speaker outputs
Install a fuse within 18" (45cm)
of
the battery and in-line
w1th
the power cable connected to your amplifier.
If
you
ever need to remove the amplifier from the vehicle after
it
has been installed, the ground
w1re
should be the last
w1re
disconnected from the amplifier--Just the opposite as when you installed it.
Model
DX200 4
DX400.4
f
::;;
24"
(60cm)
External
Fuse
(sold separately}
Power/Ground
Wire
1 x
50
Ampere
1 x
80
Ampere
-
-
bare-metal
chassis ground
8 Gauge
4 Gauge
remote turn-on
(see page
5)
1+-
0\.9
external fuse
::;;
18
"
(45cm)
KICKER
Wiring
Kit
PKB,
ZCK84
PK4, CK44, ZCK44
0)(4()().4
-+1
-
battery
-
-
3
