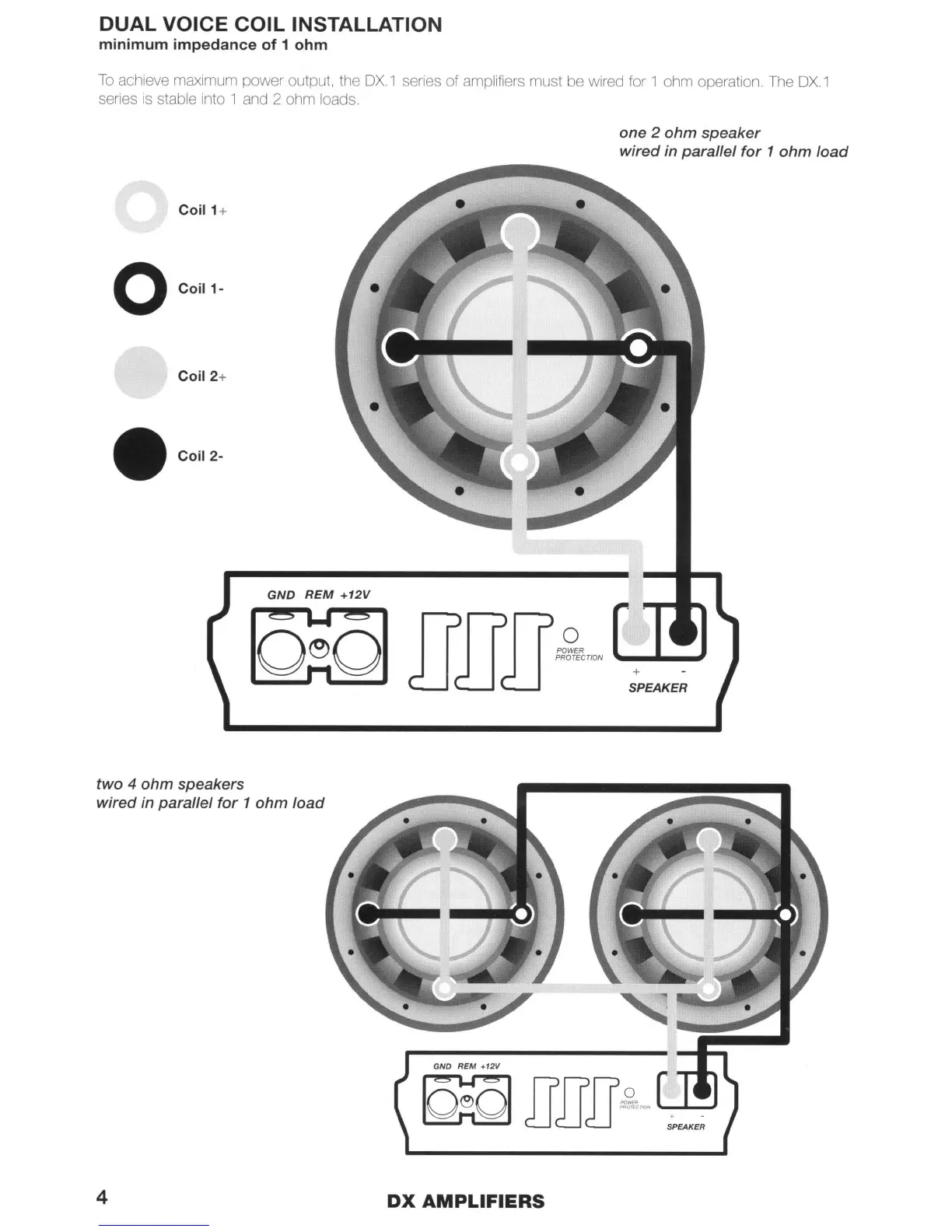

DUAL VOICE COIL INSTALLATION
minimum impedance of 1 ohm
To achieve maximum power output, the DX.1 series of amplifiers must be wired for 1 ohm operation. The DX.1
series is stable into 1 and 2 ohm loads.
one 2 ohm speaker
wired
in parallel for 1 ohm load
Coil 1+
oCoil 1-
Coil 2+
e Coil2-
GND REM +12V
two 4 ohm speakers
wired
in parallel for 1 ohm load
4
DX AMPLIFIERS
