Kicker DX600.5 - Page 4

4
REMOTE
BASS
ZXRC REMOTE BASS INSTALLATION
(See page 5. ZXRC not included.)
1. mount the
metal bracket
4-conductor phone cable
back view
2. slide the housing until it snaps
into the metal bracket
L+ L– R+ R– SUB
AMP1
–
+
30A
30A

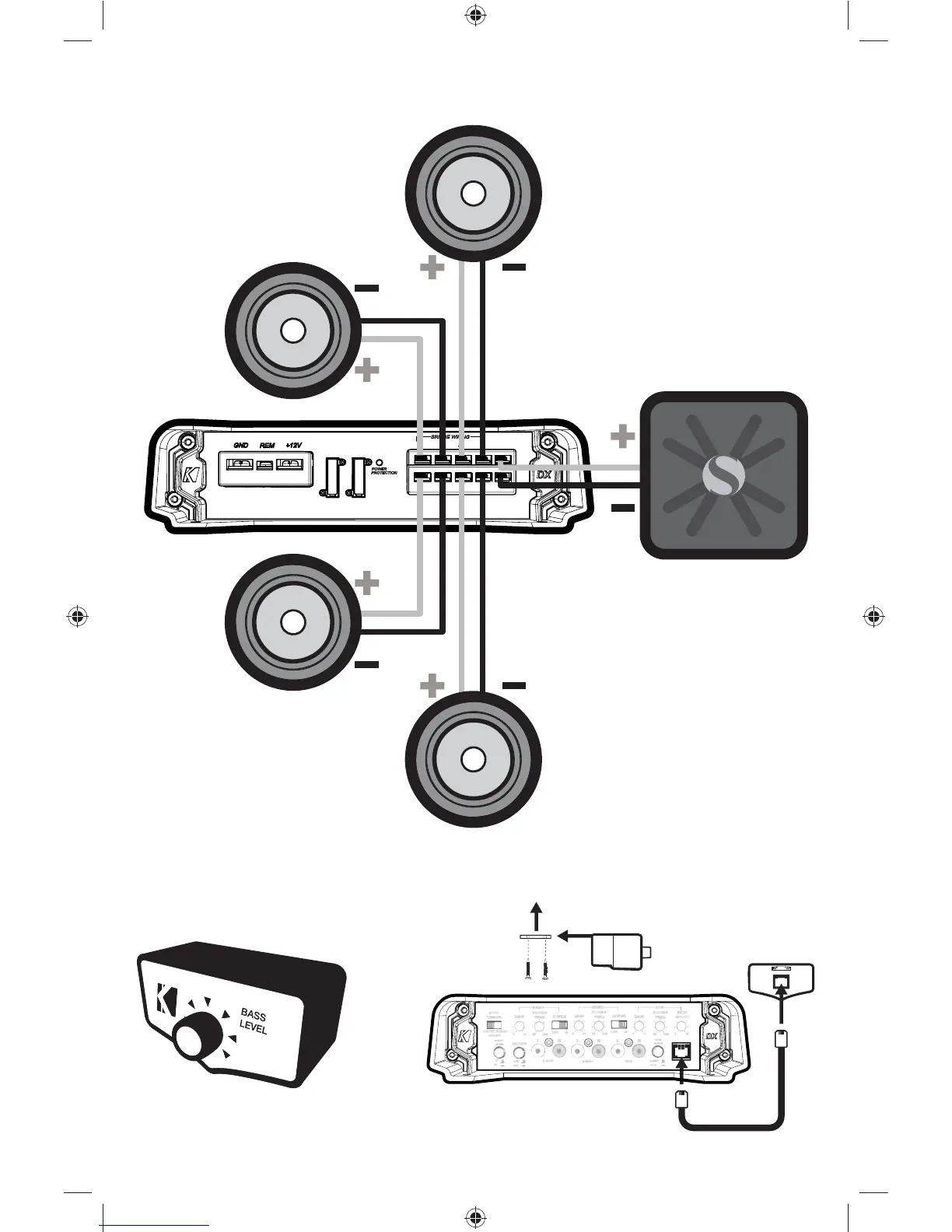

FOUR CHANNEL OPERATION with SUBWOOFER
minimum impedance of 2 ohms per channel (AMP1, AMP2, and SUB channels)
