System Diagrams
The following diagrams show the most common configurations for your Kicker
KX series amplifier.

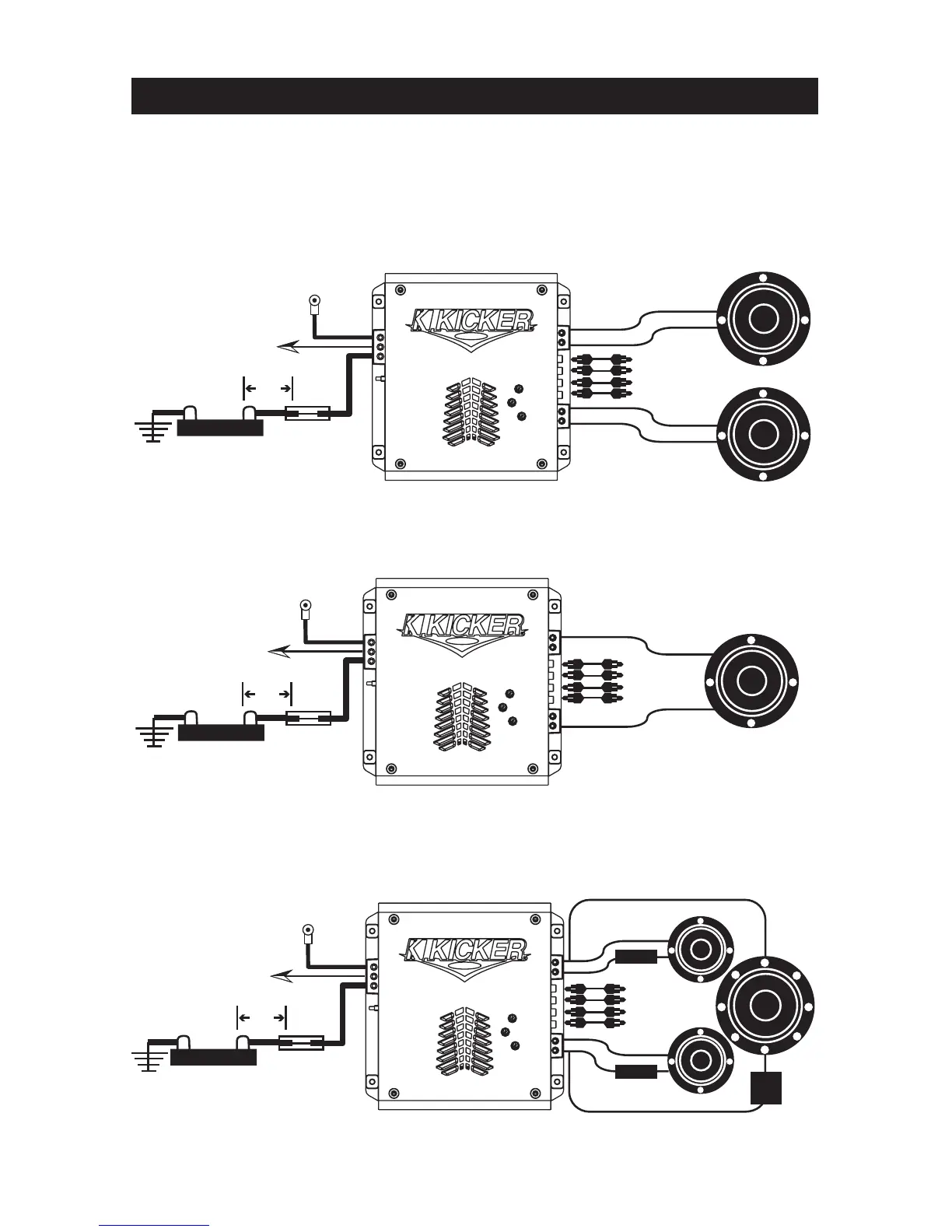

TWO CHANNEL OPERATION (STEREO)
KX series amplifiers are capable of operating into a minimum impedance of 2
ohms per channel in stereo operation.
GROUND
REMOTE
TURN-ON
BATTERY
+12V
FUSE
SIGNAL IN
SIGNAL OUT
L+
L
-
R+
R-
RIGHT SPEAKER(S)
LEFT SPEAKER(S)
+
_
+
_
18"
or less
BRIDGED OPERATION (MONO)
KX series amplifiers are capable of operating into a minimum impedance of 4
ohms when in bridged operation.
GROUND
REMOTE
TURN-ON
BATTERY
+12V
FUSE
SIGNAL IN
SIGNAL OUT
L+
L
-
R+
R-
_
+
MONO
SPEAKER(S)
18"
or less
GROUND
REMOTE
TURN-ON
BATTERY
+12V
FUSE
SIGNAL IN
SIGNAL OUT
L+
L
-
R+
R
-
RIGHT SPEAKER(S)
LEFT SPEAKER(S)
+
_
+
_
18"
or less
+
_
MONO
SPEAKER
HIGH PASS
CROSSOVER
HIGH PASS
CROSSOVER
LOW
PASS
CROSS-
OVER
STEREO AND MONO SIMULTANEOUSLY (SAMS)
KX series amplifiers are capable of operating into a minimum impedance of 4
ohms mono and 2 ohm stereo simultaneously with the use of passive
crossovers.
