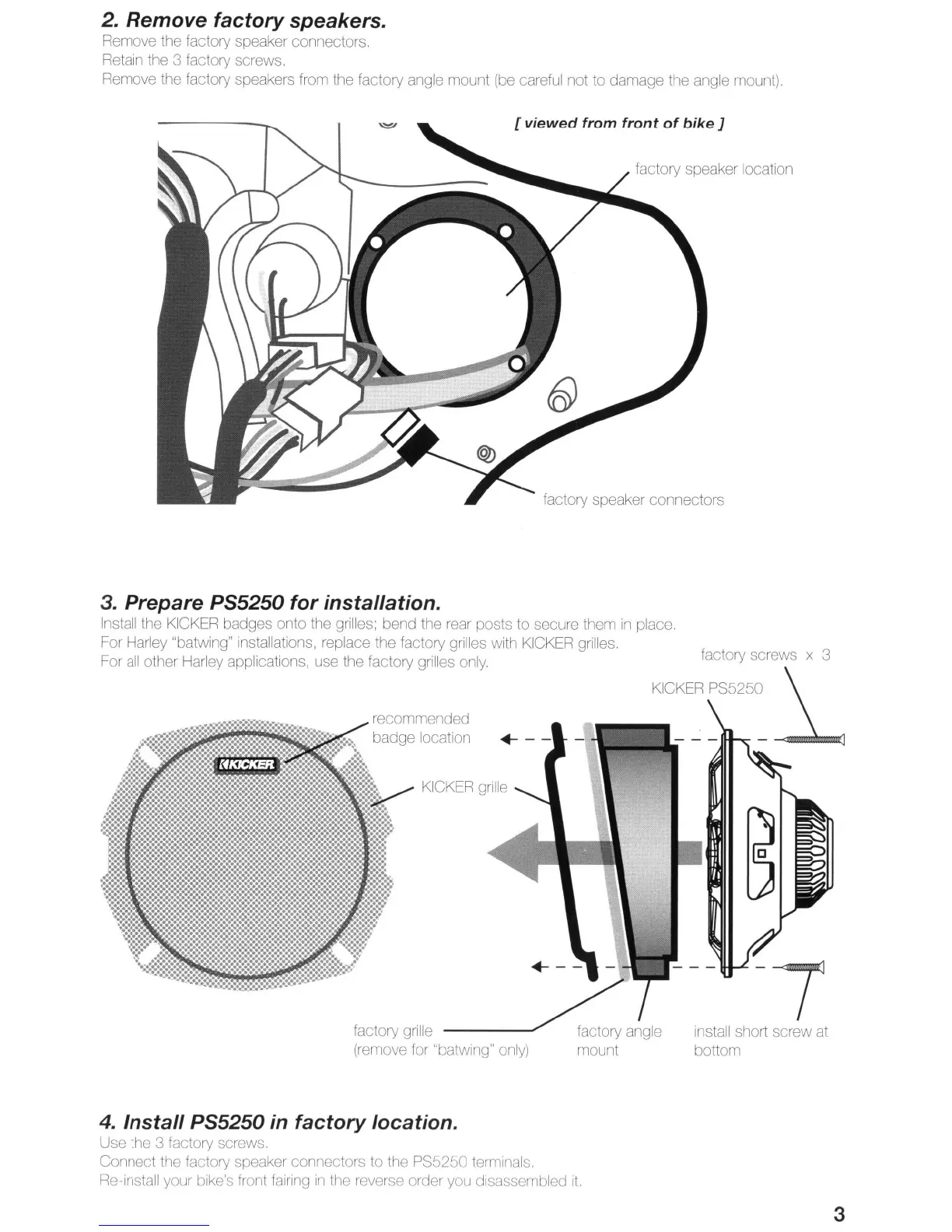

2. Remove factory speakers.
Remove the factory speaker connectors.
Retain the 3 factory screws.
Remove the factory speakers from the factory angle mount (be careful not to damage the angle mount).
[viewed
from front
of
bike]
factory speaker connectors
3.
Prepare PS5250 for installation.
Install the KICKER badges onto the grilles; bend the rear posts to secu
re
them
in
place.
For Harley "batwing" installations, replace the factory grilles with
KICKER
grilles.
factory screws x 3
KICKER
PS525~
l
For
all
other Harley applications, use the factory grilles only.
recommended
badge location
KICKER grille
factory grille
(remove for "batwing" only)
4. Install PS5250
in
factory location.
Use the 3 factory screws.
Connect the factory speaker connectors to the PS5250 terminals.
Re-install your bike's front fairing
in
the reverse order you disassembled
it.
install short screw at
bottom
3
