NOTE: These models will mount to the bracket in 4 positions (every 90 degrees).
NOTE: If either battery is missing (AA battery models), the alarm cannot mount on the mounting bracket.
The alarm is now activated! After installation / activation, test your alarm as described in Operation and
Testing section.
WARNING: Failure to properly install batteries in the correct orientation, or activate the 10 yr sealed
battery will prevent proper operation of this alarm and will prevent its response to fire and/or CO hazards.
9. Operation And Testing
This model meets the latest residential smoke alarm standards, which includes enhanced
resistance to nuisance alarms from cooking.
Operation
The alarm is operating once it is activated and
testing is complete (see “TESTING” below).
When products of combustion (smoke for smoke
only models, and smoke or CO for combination
smoke/CO models) are sensed, the unit sounds
a loud alarm with voice messages. (Voice only
on voice models) See Sections 1 and 2 for alarm
signal descriptions. In high levels of CO, the unit
will go into alarm in a shorter period of time than
at low levels of CO (combination smoke/CO models only).
Install
Remove
Mounting Bracket
Note orientation
of "A" line.
LED
To ensure aesthetic alignment, orient
the unit as shown on the mounting
bracket and rotate the unit completely until it stops.
After fully installed
(The button should
be at the bottom.)

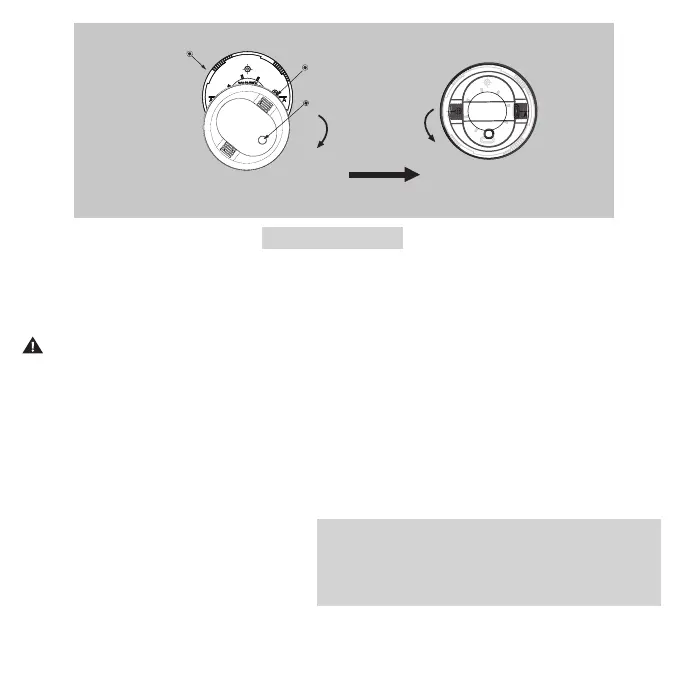

Figure 8-F
CO ALARM SENSOR RESPONSE TIMES
At 70 PPM, the unit must alarm within 60-240 minutes.
At 150 PPM, the unit must alarm within 10-50 minutes.
At 400 PPM, the unit must alarm within 4-15 minutes.
(Combination smoke/CO models only)
