Chapter 1: Introduction
4 2X-A Series Installation Manual
Product overview
This topic provides an introduction to the control panel user interface, LCD,
operator controls, and indicators.
For a detailed overview of front panel controls and indicators, see “Front panel
controls and indicators” on page 7.
The user interface

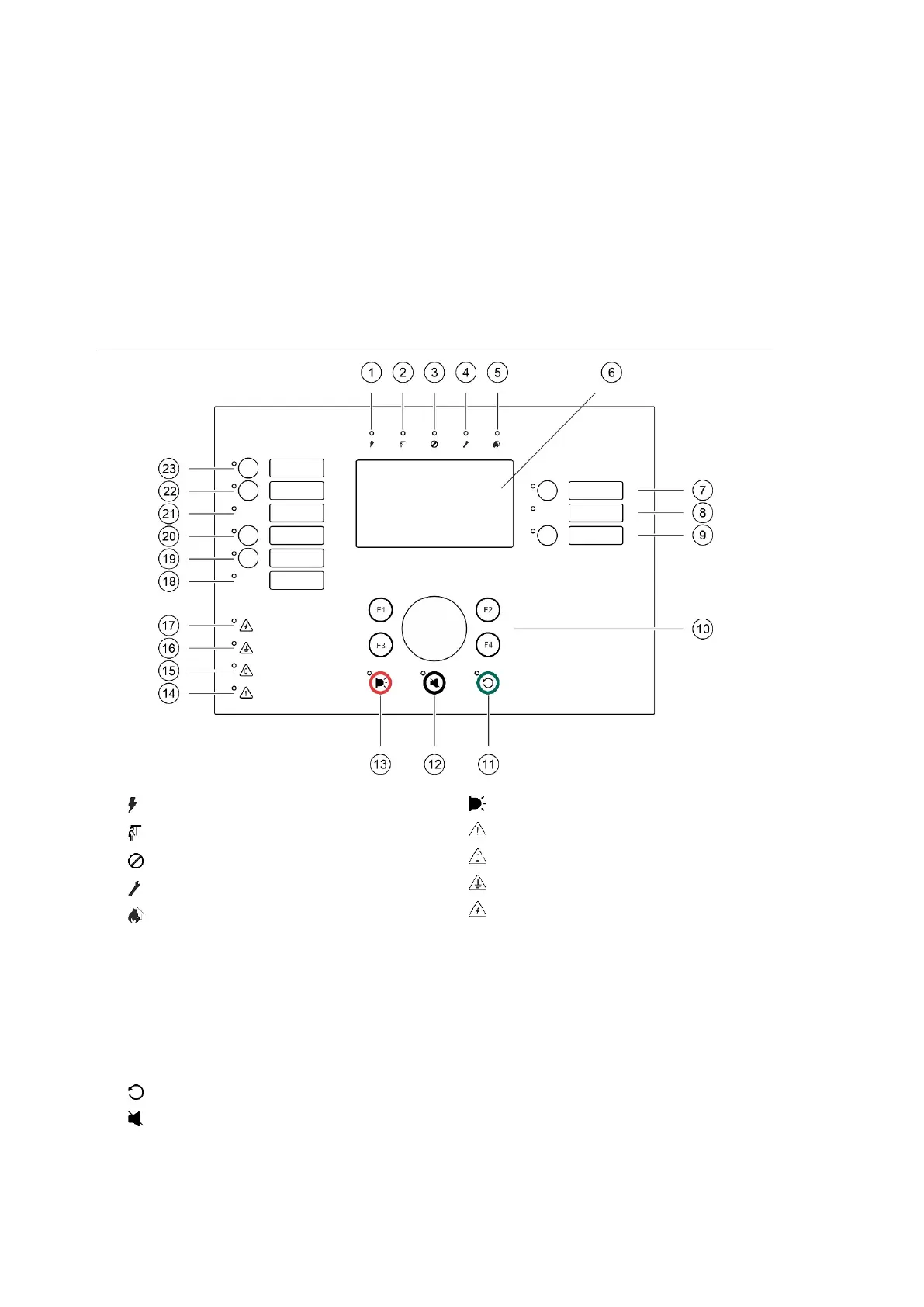

Figure 1: Fire panel user interface (with fire routing and fire protection controls)
1
. Supply LED
2
. General Test LED
3
. General Disable LED
4
. General Fault LED
5
. Alarm LED
6
. LCD
7
. Sounder Delay button and LED
8
. Sounder Fault/Disabled/Test LED
9
. Programmable output group start/stop
button and LED
10
. Jog dial and function buttons
11
. Reset button and LED
12. Panel Silence button and LED
13. Sounder Start/Stop Button and LED
14. System Fault LED
15. Low Battery LED
16. Earth Fault LED
17. Supply Fault LED
18. Fire Protection Fault/Disabled/Test LED
19. Fire Protection Delay button and LED
20. Fire Protection On/Acknowledged button
and LED
21. Fire Routing Fault/Disabled/Test LED
22. Fire Routing Delay button and LED
23. Fire Routing On/Acknowledged button and
LED
See “Assigning an output group to a programmable button” on page 116 for more
information on configuring programmable buttons.
