Chapter 2: Installation
2X-A Series Installation Manual 33

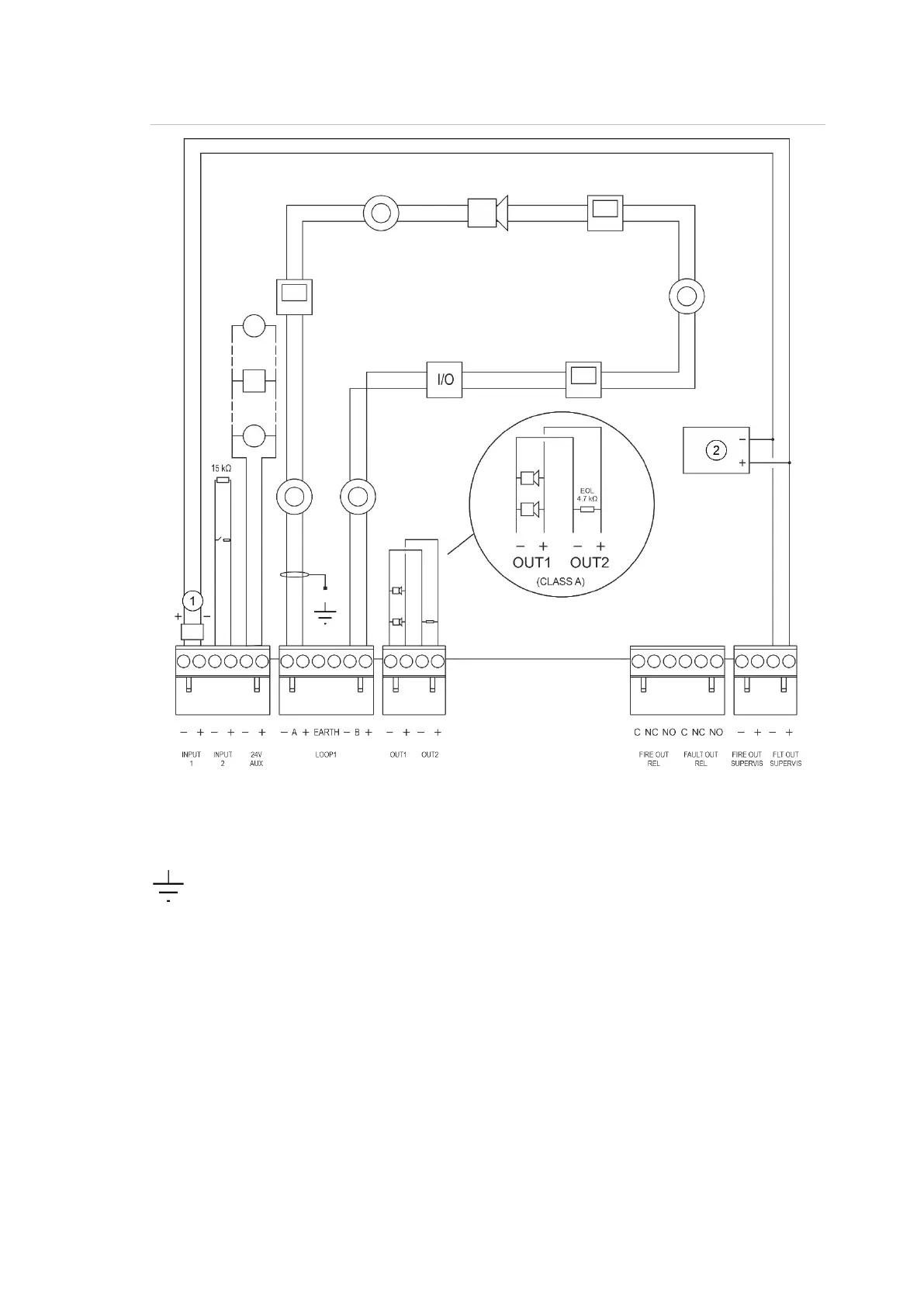

Figure 15: Overview of EN 54-13 fire system connections with a single Class A loop
1. 2010-FS-EOL end-of-line device
2. Fault indicating equipment
Earth connection: Connect one side to the earth studs in the control panel cabinet (
the loop EARTH terminal), the other side can be left floating. See “Cabinet and PCB
layout” on page 19 for the location of the earth studs.
