Kidde K-RLCD-C User Manual

P/N 3102382-EN • REV 02 • ISS 15DEC16 5
Table 3: DIP switch settings
Switch
Description
S1 to S5
Annunciator address.
The annunciator address (in binary). The factory setting is for address 2.
See Table 4 for examples. Possible values: 1 to 31.
S6
Baud rate.
OFF = 9600 baud (factory default setting)
ON = All other baud rates
S7
Annunciator circuit type.
OFF = Circuit supports Class B and Redundant Class B wiring
ON = Circuit supports Class B and Class A wiring
S8
Not used.

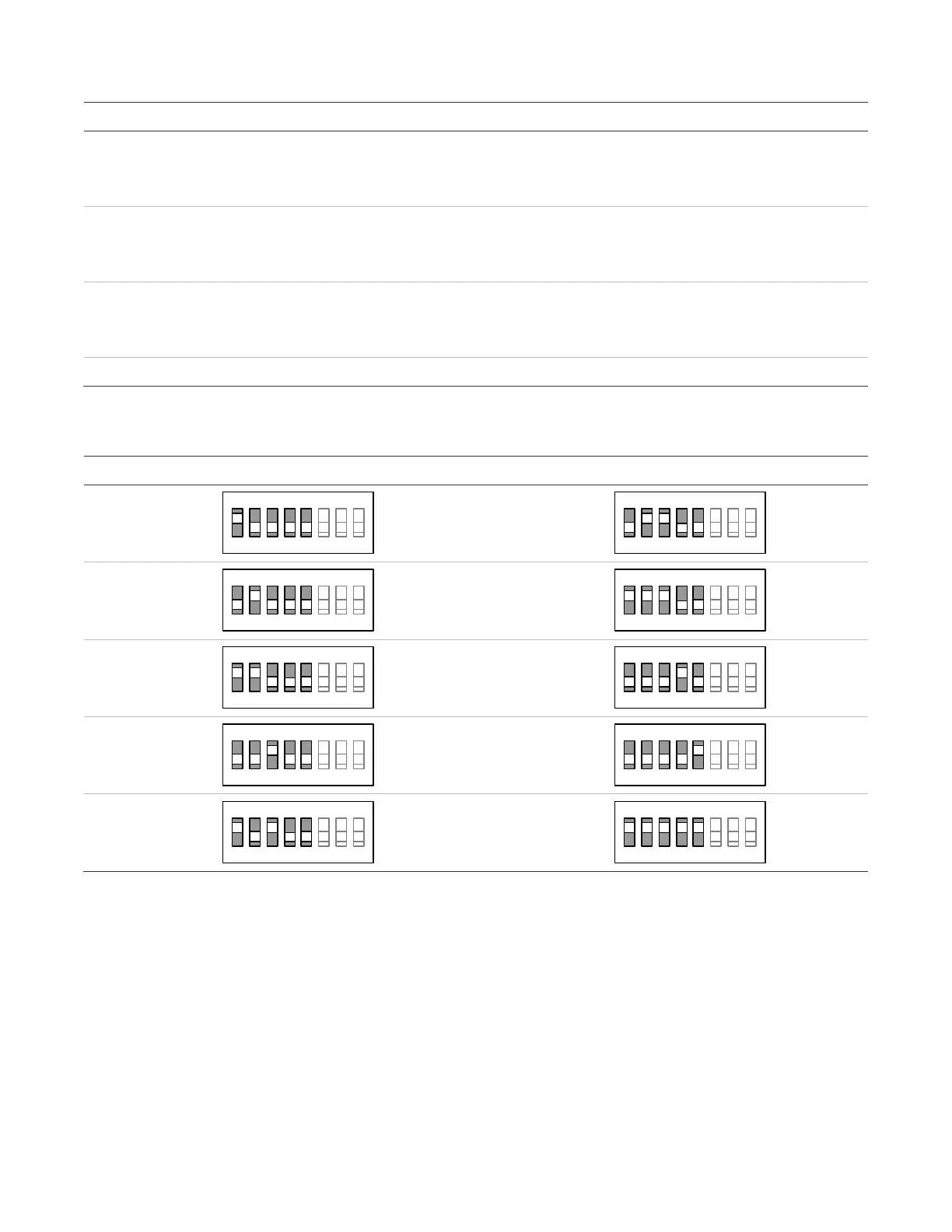

Table 4: Examples of DIP switch address settings
Address
Setting Address Setting
1
ON
1 2 3 4 5 6 7 8
6
ON
1 2 3 4 5 6 7 8
2
ON
1 2 3 4 5 6 7 8
7
ON
1 2 3 4 5 6 7 8
3
ON
1 2 3 4 5 6 7 8
8
ON
1 2 3 4 5 6 7 8
4
ON
1 2 3 4 5 6 7 8
16
ON
1 2 3 4 5 6 7 8
5
ON
1 2 3 4 5 6 7 8
31
ON
1 2 3 4 5 6 7 8
