Kidde K-RLCD-C User Manual

P/N 3102382-EN • REV 02 • ISS 15DEC16 1
Introduction to the K-R Series
The K-R Series Remote Annunciator provide remote annunciation for fire and emergency alarm systems. The
annunciators offer LCD or LED annunciation, and can include common controls. The expander uses LEDs.
The K-R Series includes three annunciator models and one expander model. One or two expanders can be
connected to any of the annunciator models. Figure 1 shows the four models in the K-R Series. Table 1 lists the
features of each model. Table 2 is a complete list of all models and accessories in the series.

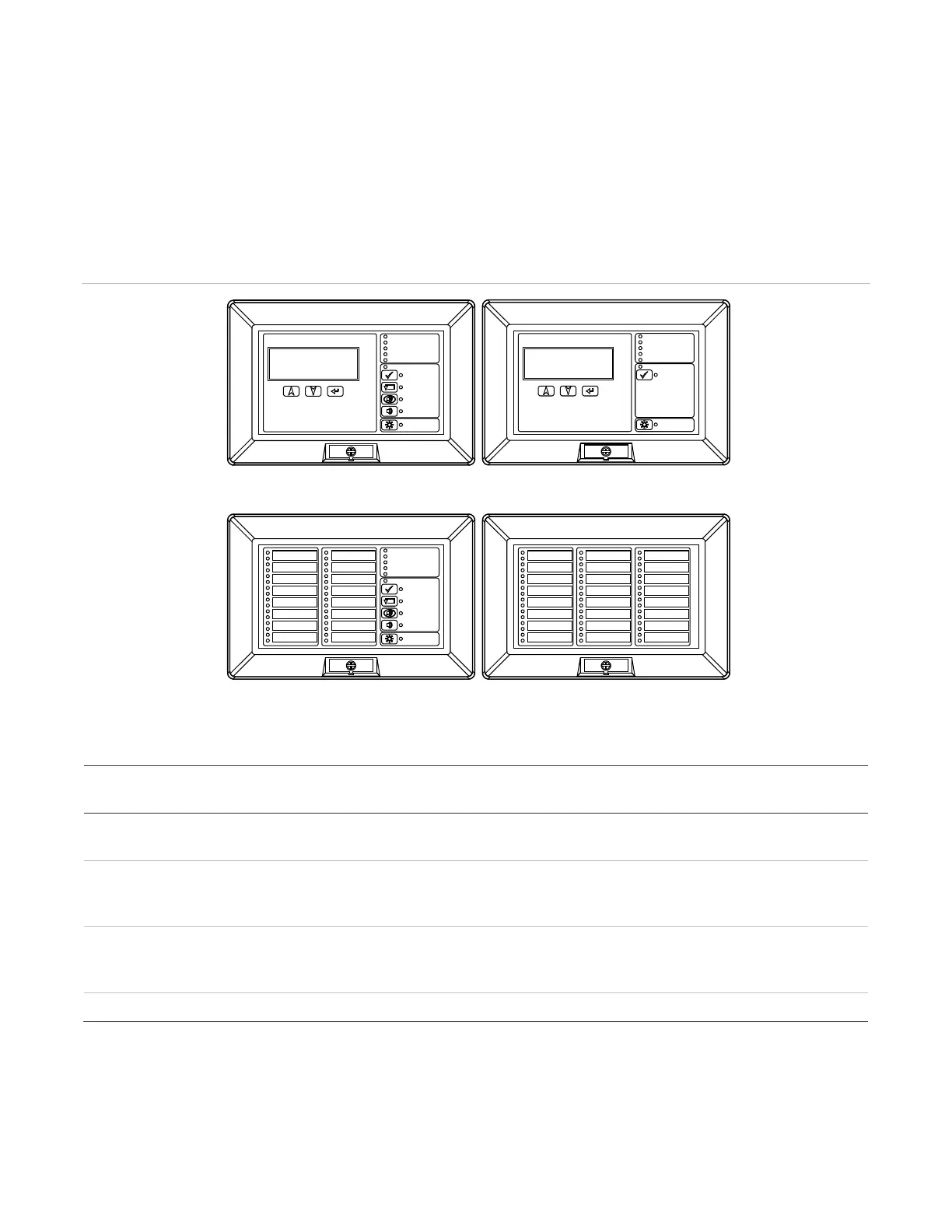

Figure 1: Models in the K-R Series
Table 1: Features of the models
Model
LCD Display Zone LEDs Common
controls
System
LEDs
Buzzer
K
-RLCD, K-RLCDF, K-RLCD-R,
K
-RLCD-PG, K-RLCD-SP
Yes No No Yes Yes
K
-RLCD-C, K-RLCD-CF,
K
-RLCD-CR, K-RLCD-C-PG,
K
-RLCD-C-SP
Yes No Yes Yes Yes
K
-RLED-C, K-RLED-CF,
K
-RLED-CR, K-RLED-C-PG,
K
-RLED-C-SP
No 16 pairs Yes Yes Yes
K
-RLED24, K-RLED24R No 24 pairs No No No
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
K-RLCD-Cx
K-RLED-Cx
K-RLCDx
K-RLED24x
Controls Enabled
Ack/Silence
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
