Kilews SKP-BC32HL User Manual

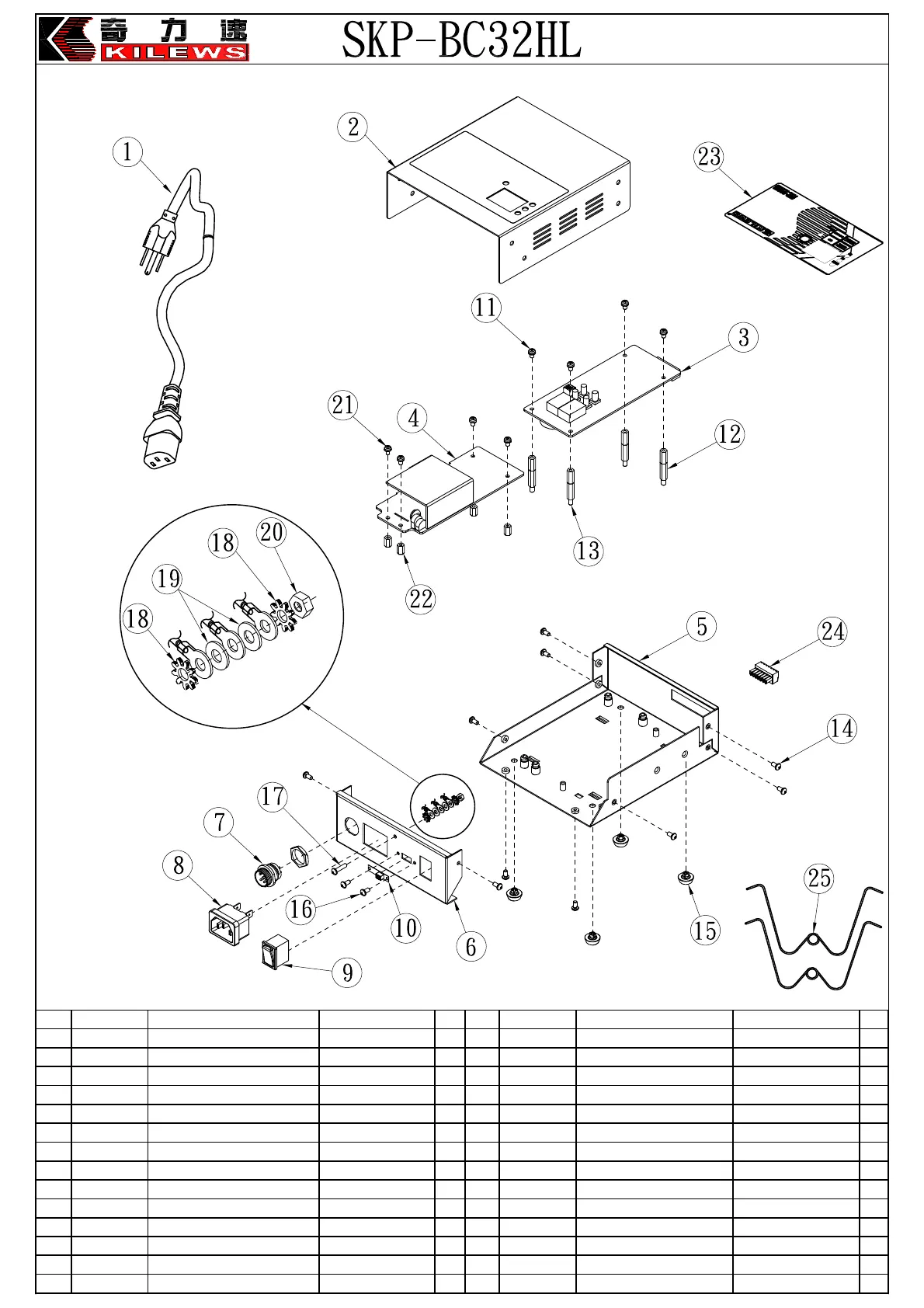

NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty
1 AA50002 America Plug
美插電源線
1 12 CH30224 PCB SUPPORT 30*5
控制板固定柱
30*5 2
AA50002-1 Australia Plug
中式三插電源線
1 13 CH30225 PCB SUPPORT 29*5
控制板固定柱
29*5 2
AA50002-2 Europe Plug
歐插電源線
1 14 CH30199 SCREW M3*6
外殼螺絲
M3*6 10
AA50002-3 British Plug
英插電源線
1 15 CH20103-3 RUBBER SHIM
腳墊
4
2 CA32002 HOUSING-UPSIDE
外殼上蓋
1 16 CH30221 SCREW M2*5 HI/LO
開關固定螺絲
M2*5 2
3 EG50101-21 CONTROL PCB-A
控制基板
-A 1 17 CH30222 SCREW
地線螺絲
1
4 EG50101-18 POWER PCB
電源基板
1 18 CH20302-3 WASHER
齒型華司
2
5 CB32002 HOUSING-UNDERSIDE
外殼下蓋
1 19 CH20305 WASHER
華司
2
6 CE32002 HOUSING-FRONT SIDE
外殼前蓋
1 20 CH20406 BOLT
螺帽
1
7 PZ50177 CONNECTOR ASS'Y 6PIN SET 6PIN
連接頭
(
套
) 1 21 CH30223 SCREW M2.5*12
電源板固定螺絲
4
8 E31702-2 EMI FILTER A'SSY
電源插座半成品
1 22 E31710 SPACER SUPPORT
隔離柱
4
9 P11401-7 POWER SWITCH
電源開關
1 23 Y18032 STICKER-MODEL
面板貼紙
1
10 P11402-6 HI/LO SWITCH HI/LO
開關
1 24 E31701-12 TERMINAL BLOCK 7PIN
接線端子
1
11 CH30198 SCREW
控制板固定螺絲
4 25 P12108 SUSPENSION BAIL
固定腳柱
2

Kilews SKP-BC32HL Specifications

General

Brand	Kilews
Model	SKP-BC32HL
Category	Controller
Language	English
