Kilews SKP-BC32HL User Manual

SKP-BC32HL POWER CONTROLLER (E) CE 

8
I/O Inserting Hole description：
CN1(V+) and CN5(COM) can provide DC 32V/DC 20V Power.
SKP-C32HL: System selects HI and CN1, CN5 provide with DC32V power
SKP-C32HL: System selects LO and CN1, CN5 provide with DC20V
If users need different DC voltage, then they must use their own step-down circuit to decrease voltage.

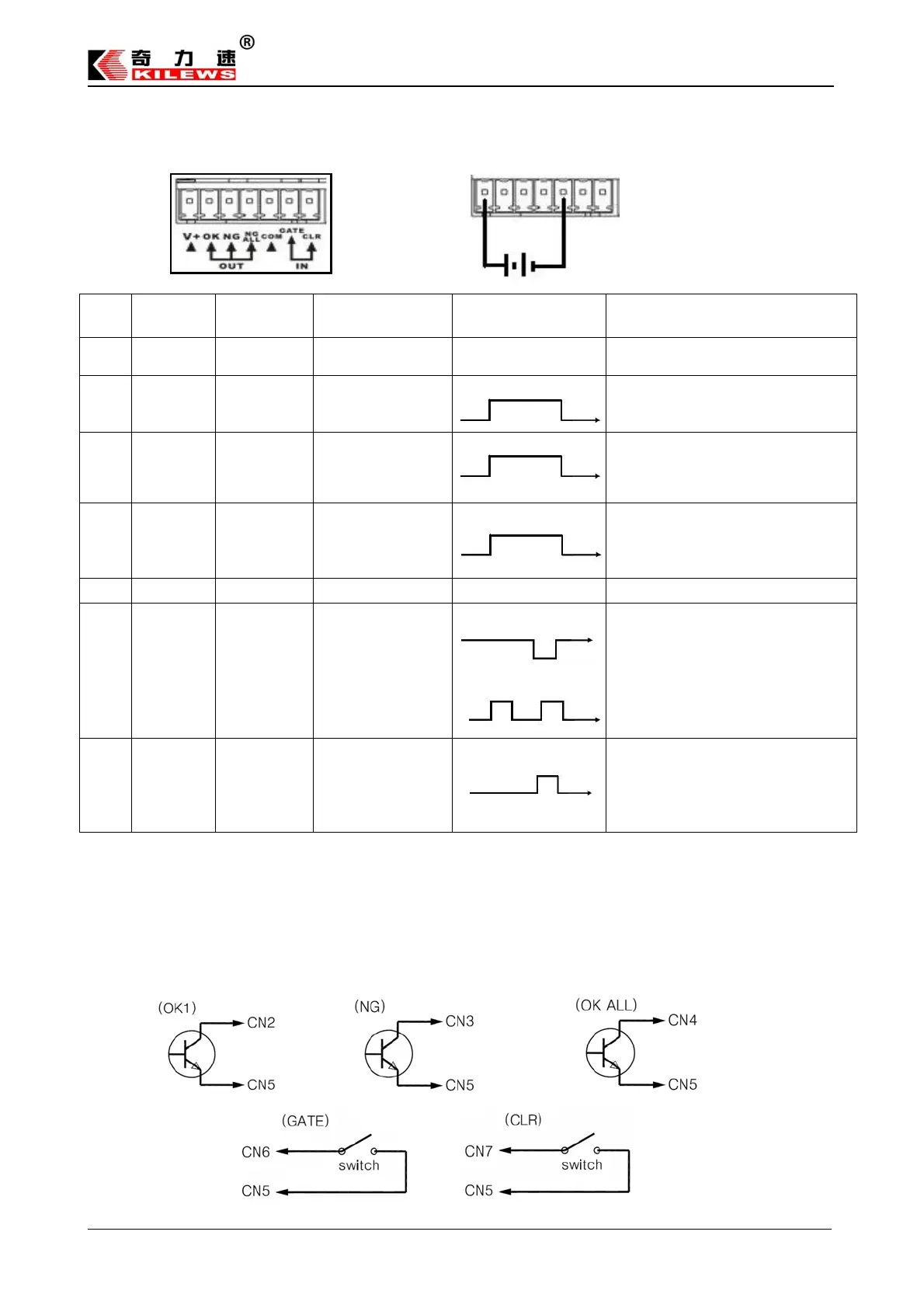

Terminal Connecting Diagram：
Input： *If user need to input voltage to drive the alert instrument, do not use over
DC24V/10mA voltage.
Output：
No Name In/Out Content
wave pattern of
signals
Remark
CN1 V+ +32V/20V
DC32V/DC20V Device built-in output voltage
DC32V/DC20V
CN2 OK Output
Output one signal after
finishing one screwing
job.
Auto start If operator needs to input voltage,
please do not exceed 24V/10mA
CN3 NG Output
Output one signal when
having an erroneous
operation
Auto start If operator needs to input voltage,
please do not exceed 24V/10mA
CN4 OK ALL Output
Output one signal after
finishing the setting
value of screw number
count.
Auto start If operator needs to input voltage,
please do not exceed 24V/10mA
CN5 COM
－
CN6 GATE Input
confirm switch for
external connection
OFF：
ON：
Input one confirming signal which allows
device to judge if the fastener is an effective
value.
Sensing switch: External connection switch
for operation, allows to connect one or two
switches.
To connect any switch, it must be connected
or linked with COM (CN5)
CN7 CLR Input
CLEAR Switch for
external connection
Clear remaining screws count number,
available for the external connection of
confirming switch.
To connect any switch, it must be connected
or linked with COM (CN5)
DC 20V /32V
○
+
○
-
ON
OFF
ON
OFF
OFF
ON
OFF
ON ON
OFF
OFF
OFF
ON
ON
