Killbros 590 - Gear Box Diagram

24

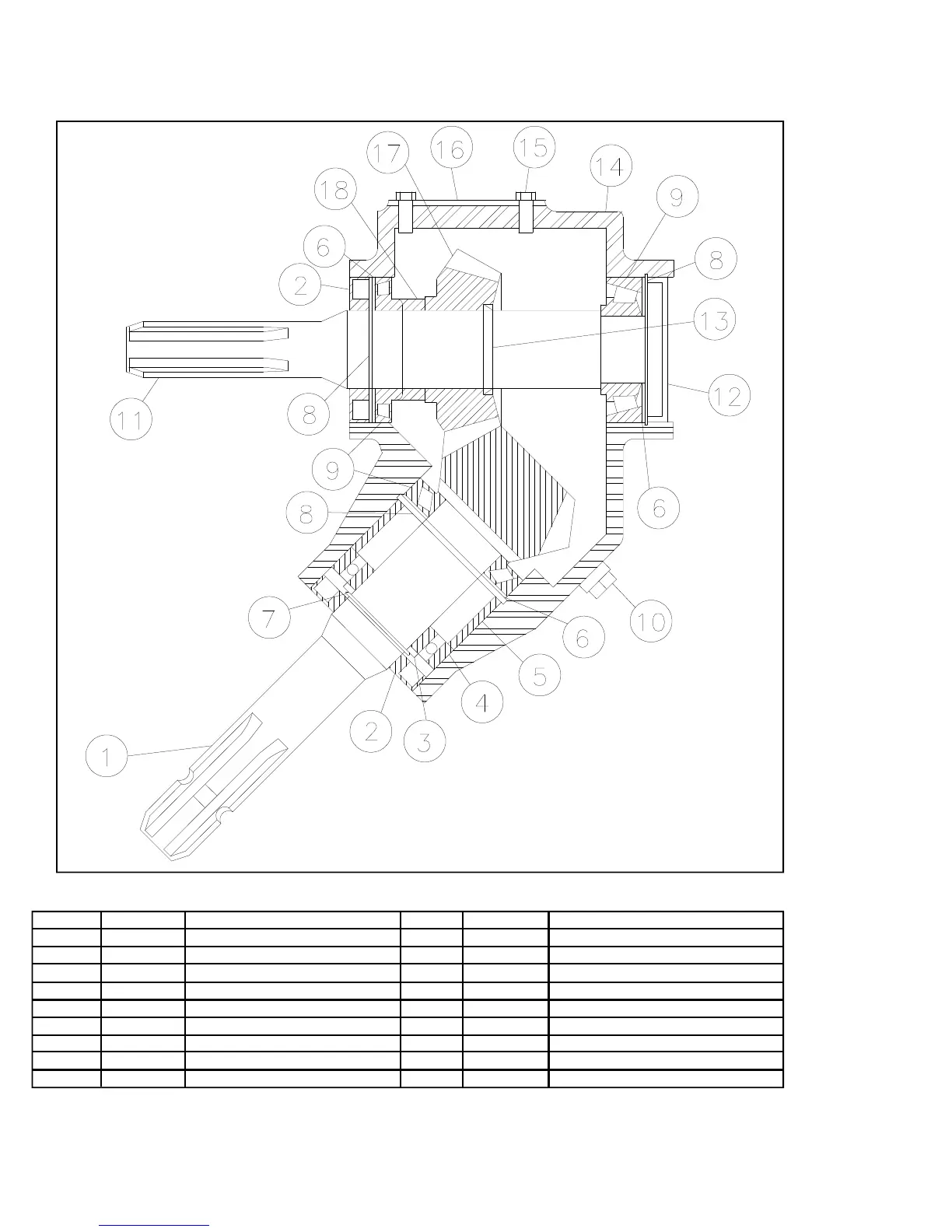

Gear Box Diagram
ITEM
1
2
3
4
5
6
7
8
9
PART NO.
103549
103555
103663
103553
103660
103662
103551
92431
103552
DESCRIPTION
Shaft, Input (with gear)
Oil Seal
Shim, 65.3mm x 45.3mm
Ball Bearing Assembly
Spacer, Input Shaft
Shim, 84.7mm x 75mm
Snap-Ring
Snap-Ring
Bearing Ass’y, Taper Roller
ITEM
10
11
12
13
14
15
16
17
18
PART NO.
103545
103548
103664
103558
103665
103666
103661
103547
103652
DESCRIPTION
3/8”-18 Pipe Plug Hex Socket
Output Shaft
Cap
Snap-Ring
Housing
Bolt, M6x16
Cover
Gear, Output
Spacer, Output Shaft
OM02515
