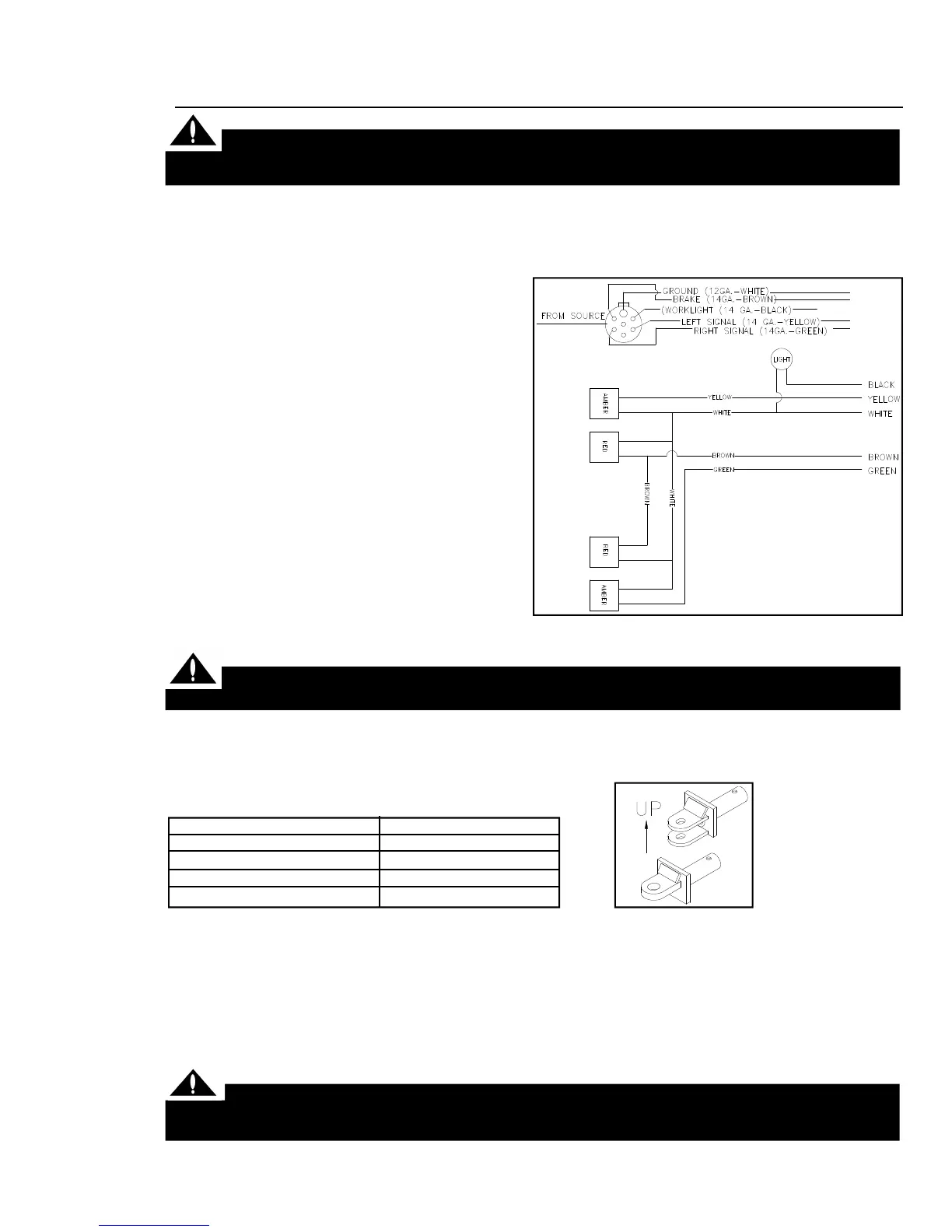

OPERATIONS
ELECTRICAL HOOK-UP
DO NOT attempt to install, attach, or repair any electrical applications on the cart if work
area is wet. Allow area to dry before any work is to be done. Electrical shock or electrocution may
result if work area is not dry.
Your Grain Cart is supplied with a seven-point SAE connector plug, which will adapt to the
receptacle found on several new tractors on the market today. If not available, an SAE J S60A
seven-point outlet socket can be purchased from your Killbros dealer (order #104838).
SAE SEVEN POINT
CONNECTOR PLUG
Grain Cart Wires
White..... Ground
Green..... Right amber flashing lamp
Yellow.... Left amber flashing lamp
Brown.....Tail Light
Note: it may be necessary to install a switch
in the tractor to operate the auger light.
The following schematic complies with ANSI/
ASAE Standard S279.9/SAEJ137 for new pro-
duction tractors. NOTE: Wiring specifications
may be different for older tractor models.
Consult your tractor operator’s manual or dealer
for proper wiring and installation. (Fig. 1)
OM02482
Fig. 1
TRACTOR HOOK-UP
Make certain that you can see the driver and the driver can see you at all times to avoid
being struck by tractor while attempting to hook up the Cart.
--Make sure sufficient counterweight is used on the tractor’s front-end.
--Move draw bar into shortest position.
Selecting the proper hitch pin size for your tractor!
Tractor Size
Category 4 (250-400 H.P.)
Category 3 (110-250 H.P.)
Category 2 (65-110 H.P.)
Category 1 (Under 65 H.P.)
Hitch Pin Diameter
2”
1-1/2”
1-1/4”
1”
OM02548
Information gathered from: ISO/TC2/SC2 N4123
--With cart hitched to tractor, hook up P.T.O. (see pg. 9-C), following all safety precautions.
--Hook up 7-point electrical plug connection to tractor.
--Be sure hitch is positioned as shown. Gusset should be to top.
HYDRAULIC HOOK-UP
CAUTION! When coupling hyd. hoses to ports on tractor, be sure that coupler ends are
clean of dust, dirt and debris. Failure to do so could contaminate hydraulic system resulting in
excessive wear and possible failure.
-- Properly identify the hoses for the auger fold and the flow control operation.
