Killbros 590 - Auxilary Hydraulic Drive Unit

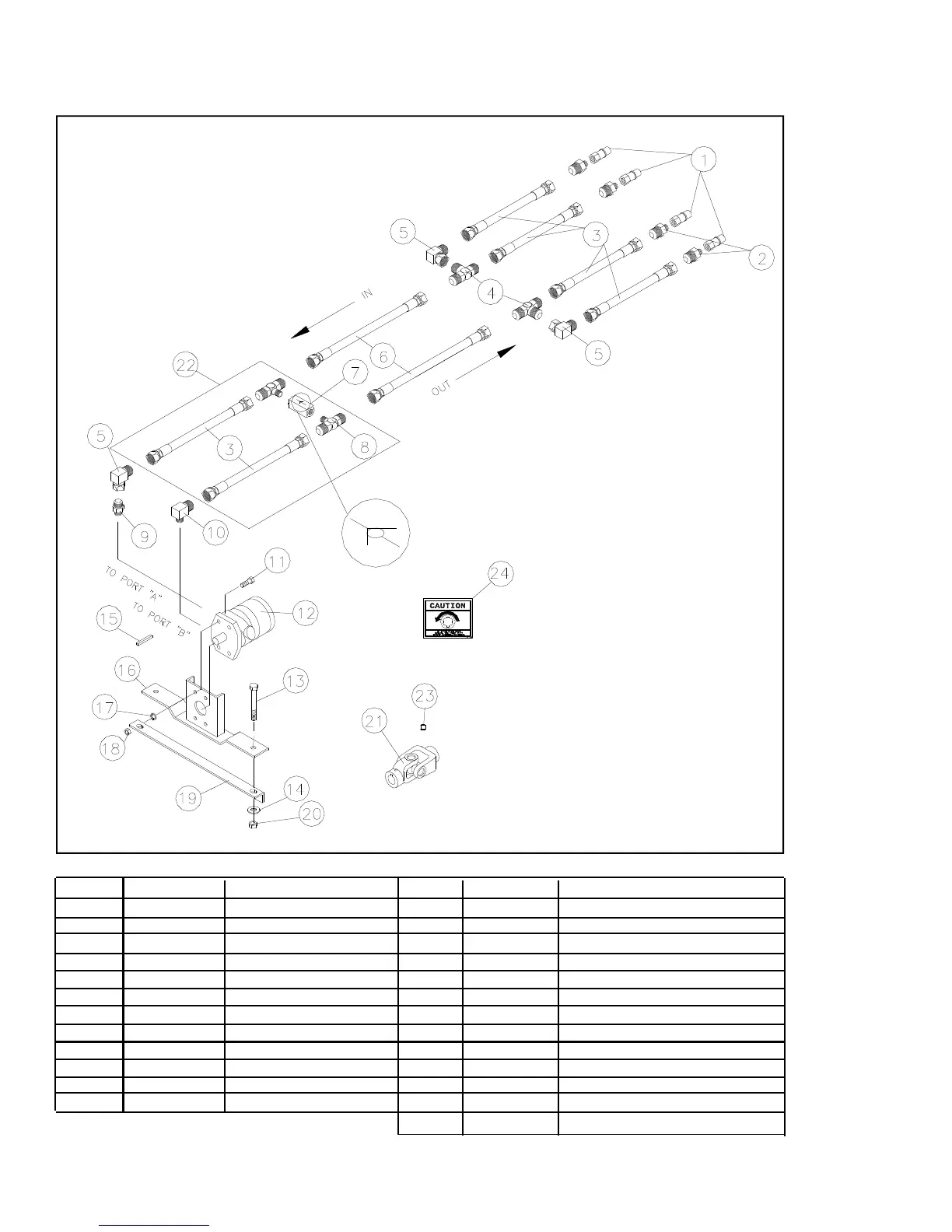

Auxiliary Hydraulic Drive Unit
OM02470
ITEM
1
2
3
4
5
6
7
8
9
10
11
PART NO.
105431
91383
103347
105170
105233
103370
103345
105061
105169
105073
105318
9390-101
DESCRIPTION
Complete Kit
3/4” Q/D Coupler
Male Coupler
Hydraulic Hose (15”)
Male Tee
Swivel Elbow
Hydraulic Hose (84”)
Check Valve
Male Tee
Male Coupler
Male Elbow
1/2” x 1-1/2” HH Bolt
ITEM
12
13
14
15
16
17
18
19
20
21
22
23
24
PART NO.
95988
9390-443
9405-100
101958
105230
9404-025
9394-010
105231
9398-019
105273
105171
9399-094
97124
DESCRIPTION
Hydraulic Motor
5/8” x 10” HH Bolt
5/8” Flat Washer
5/16” x 5/16” x 2-1/2” Key
Mounting Bracket
1/2” Lockwasher
1/2” Hex Nut
Mounting Angle
5/8” Nylon Locknut
Universal Joint
(Optional) Anti-Reverse Kit
Set Screw-3/8”-16UNCx3/8”
“Caution” Decal
