Kimberly-Clark Suretouch - Attaching the Soap Discharge Head

4 5

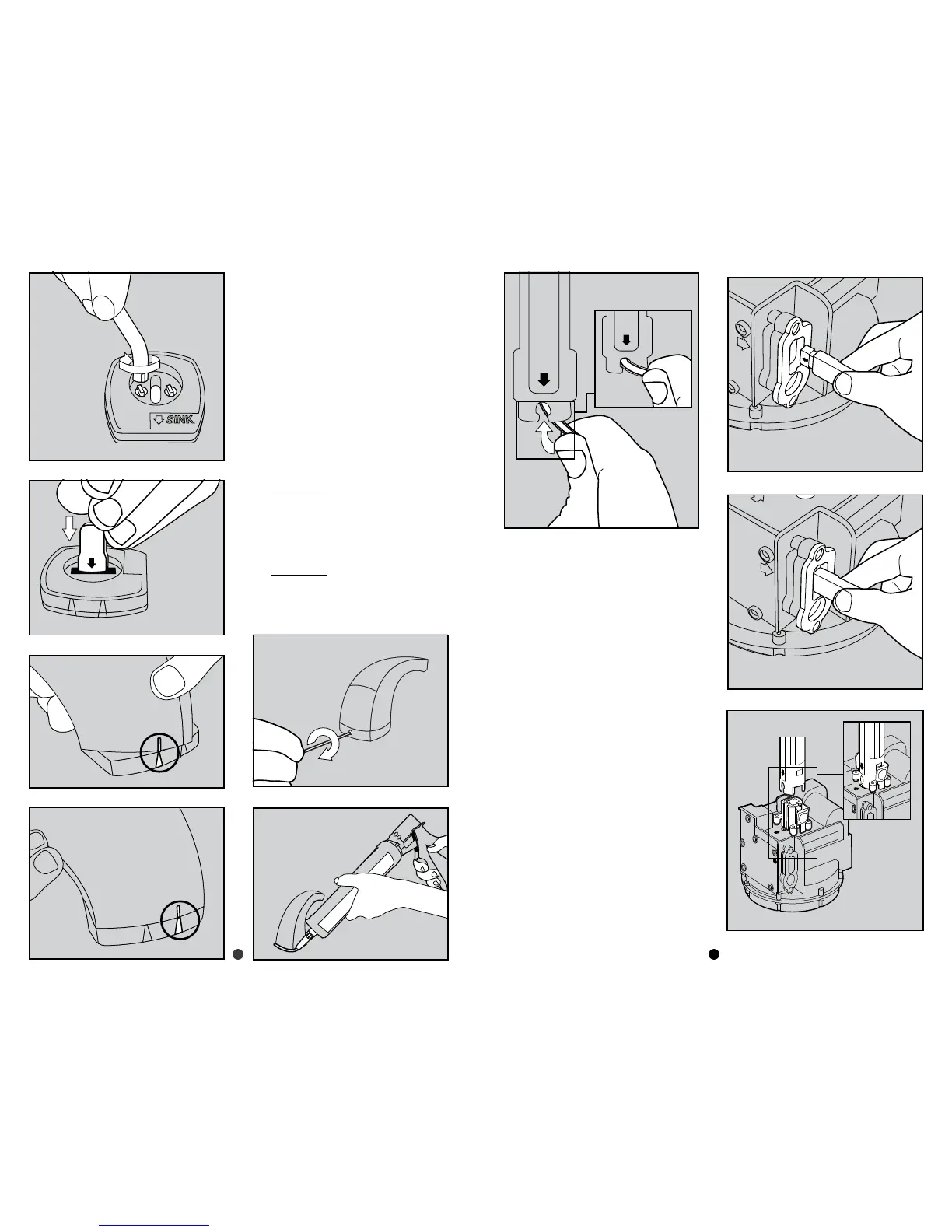

18. Position the clear tube on the signal
cable into the notch on the bottom of the
support shaft (see gure 17).
19. Remove the protective cap on the signal
cable plug. Align the yellow arrow on the
signal cable plug with the yellow arrow
on the motor module receptacle (see
gure 18).
20. Push the signal cable plug into the motor
module receptacle. The connection is
secured when the yellow arrow on the
signal cable plug is no longer visible
(see gure 19).
21. Align the orange arrow on the motor
module with the orange arrow on the
support shaft. Push the motor module
up until BOTH snaps lock into place
(see gure 20).
Fig. 17
12. Use the hand tool provided to complete
the tightening of the support shaft.
Tighten in a clockwise direction (see
gure 11).
13. Push the signal cable attached to the
soap discharge head thru the opening in
the support shaft (see gure 12).
14. Align the notches on the bottom of the
soap discharge head with the tabs on the
support shaft (see gure 13).
15. Rotate the soap discharge head counter
clockwise until the tab on the soap
discharge head is aligned with the rear
tab on the support shaft (see gure 14).
16. IMPORTANT – Using the Allen wrench
provided, tighten the set screw clockwise
on the back of the soap discharge head
until it is tight. The head of the set screw
should be ush to below the surface of
the soap discharge head. (see gure 15).
17. IMPORTANT – Apply a bead of clean
silicone caulk around the perimeter of
the support shaft / head assembly (see
gure 16).
Fig. 12
Fig. 13
Fig. 14
Fig. 16
Fig. 15
Fig. 11
Fig. 20
Fig. 18
Fig. 19
