User Guide for the Electronic SURETOUCH* Foam Soap System

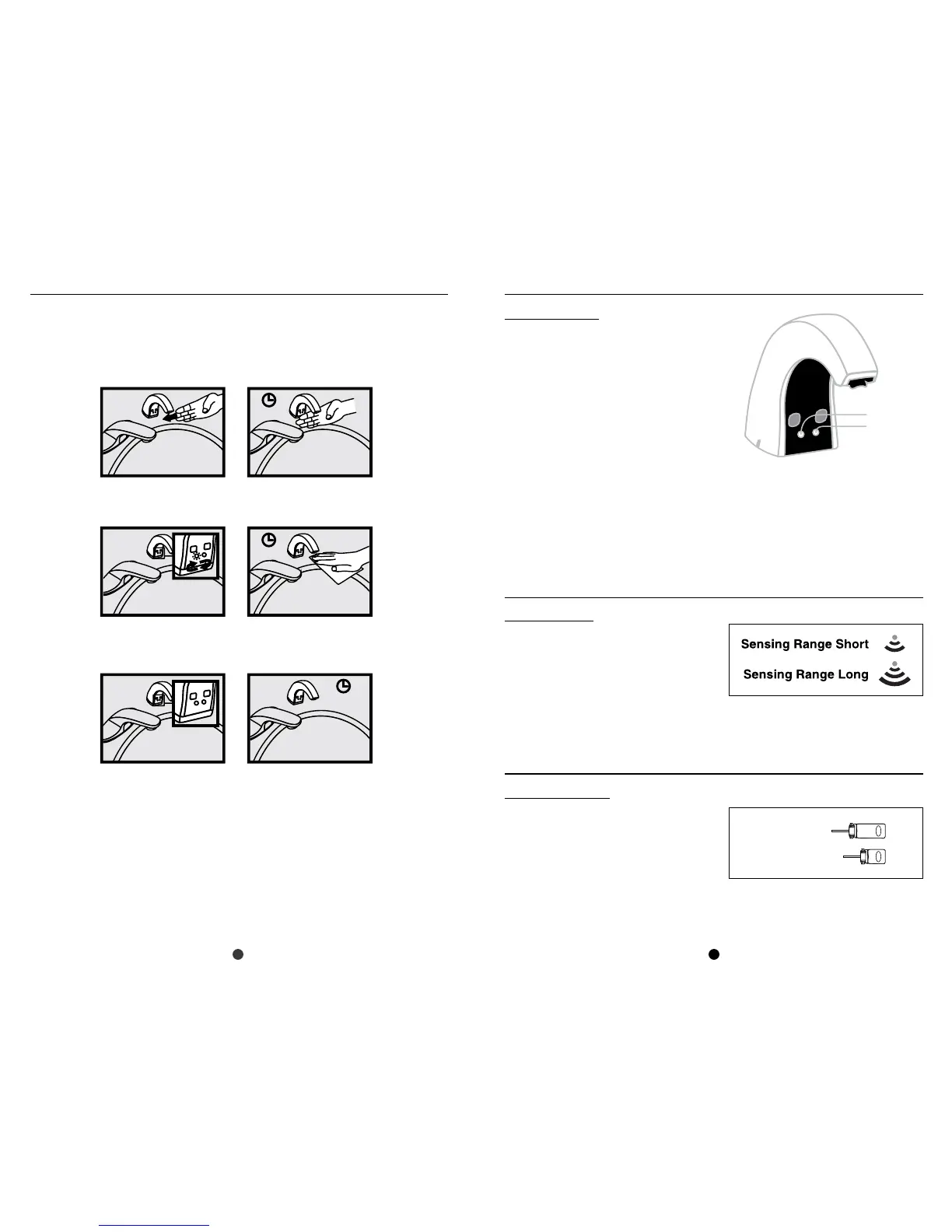

LED INDICATORS:
There are several indicator LED’s on the soap
discharge head which are used as follows:
Yellow LED (Low Product) – The yellow LED
will begin to ash slowly (1 time every second)
when the soap rell has between 50 and 90 shots
of soap remaining.
Red LED (Low Battery) slow flash – The red
LED will begin to ash slowly (1 time every
second) when battery power remaining is
sufcient for approximately 500 additional shots
of soap.
Red LED (Low Battery) rapid flash – The red LED will begin to ash rapidly (4 times every
second) when battery power is not sufcient to activate the dispenser. Replace batteries.
Red LED (Motor Short) – The red LED will begin to ash 2 times every second. Reboot the
dispenser by disconnecting and reconnecting the power.
REFILL SELECTION:
The motor module contains a 2 position
switch that must be set to the proper
rell size being used.
1500ML – Slide switch to the top
(factory default)
800ML – Slide switch to the bottom
Red LED
Yellow LED
SENSOR RANGE:
The motor module contains a 2 position switch
which allows for sensing range adjustment as
follows:
Short Range – Delivers optimum performance
in situations where inadvertent soap dispensing
occurs on the long range setting. An example
being when soap dispenser and the faucet are in
close proximity. Top switch setting.
Long Range – Delivers optimum performance
and fast response time. Bottom switch setting
(factory preset).
Note:
• When power is supplied to the system prior to installing a soap rell, the red and yellow LED will ash,
indicating a good power connection has been established. It will continue to ash until a soap rell is installed.
• When a soap rell is properly loaded into the dispenser the red and yellow LED will stop ashing indicating the
rell is properly installed.
Dispenser Deactivation Instructions
5 sec.
2 min.
5 times/24h
IMPORTANT
Instructions to temporarily deactivate 11331 & 34829
dispensers to permit sink/dispenser cleaning.
Form# 034008
1. Place hand under
dispenser.
2. Hold hand under
dispenser for 5 seconds,
soap will dispense 1 time.
3. After 5 seconds the
LED’s will alternate
blinking, remove hand.
4. The dispenser will
remain deactivated for
2 minutes to allow for
cleaning.
5. After 2 minutes the
LED’s will stop blinking
and the dispenser will be
active.
NOTE: The dispenser can
be deactivated for
cleaning up to 5 times
in a 24 hour period.
DO NOT USE BLEACH OR PRODUCT CONTAINING
BLEACH TO CLEAN THE CHROME DISPENSER.
IMPORTANT
Bleach
IMPORTANTE
Instrucciones para desactivar
temporalmente las distribuidoras
11331 & 34829 para la limpieza de
lavabos y distribuidoras.
1. Ponga la mano debajo de la
distribuidora.
2. Sostenga la mano debajo de
la distribuidora por 5 segundos;
el jabón se dosificará 1 vez.
3. Después de 5 segundos las
luces parpadearán de manera
alternativa; quite la mano de
debajo de la distribuidora.
4. La distribuidora quedará
desactivada por 2 minutos para
permitir la limpieza.
5. Después de 2 minutos las
luces dejarán de parpadear y
la distribuidora se activará.
NOTA: La distribuidora se puede
desactivar un máximo de 5 veces
en un periodo de 24 horas para
efectuar la limpieza.
EVITE EL USO DE BLANQUEADOR
O PRODUCTOS QUE CONTENGAN
BLANQUEADOR PARA LIMPIAR
DISTRIBUIDORAS CROMADAS.
IMPORTANT
Instructions de désactivation
temporaire du distributeur (modèle
11331 & 34829) pour le nettoyage
du lavabo et du distributeur.
1. Placer la main sous le
distributeur.
2. Laisser la main sous le
distributeur pendant 5 secondes.
Une dose de savon sort.
3. Au bout de 5 secondes, la DEL
clignote. Retirer la main.
4. Le distributeur est désactivé
pendant 2 minutes afin de faciliter
le nettoyage.
5. Au bout de 2 minutes, la DEL
cesse de clignoter et le
distributeur est de nouveau activé.
NOTE: Le distributeur peut être
désactivé 5 fois par période
de 24 heures.
NE PAS UTILISER D'EAU DE JAVEL
NI D'AUTRE PRODUIT
JAVELLISANT POUR NETTOYER
LE DISTRIBUTEUR EN CHROME.
1500 ML
800 ML
