GLYCOL PUMP
24
Repair Guide
Figure 29.2
Figure 29.4
Figure 29.3

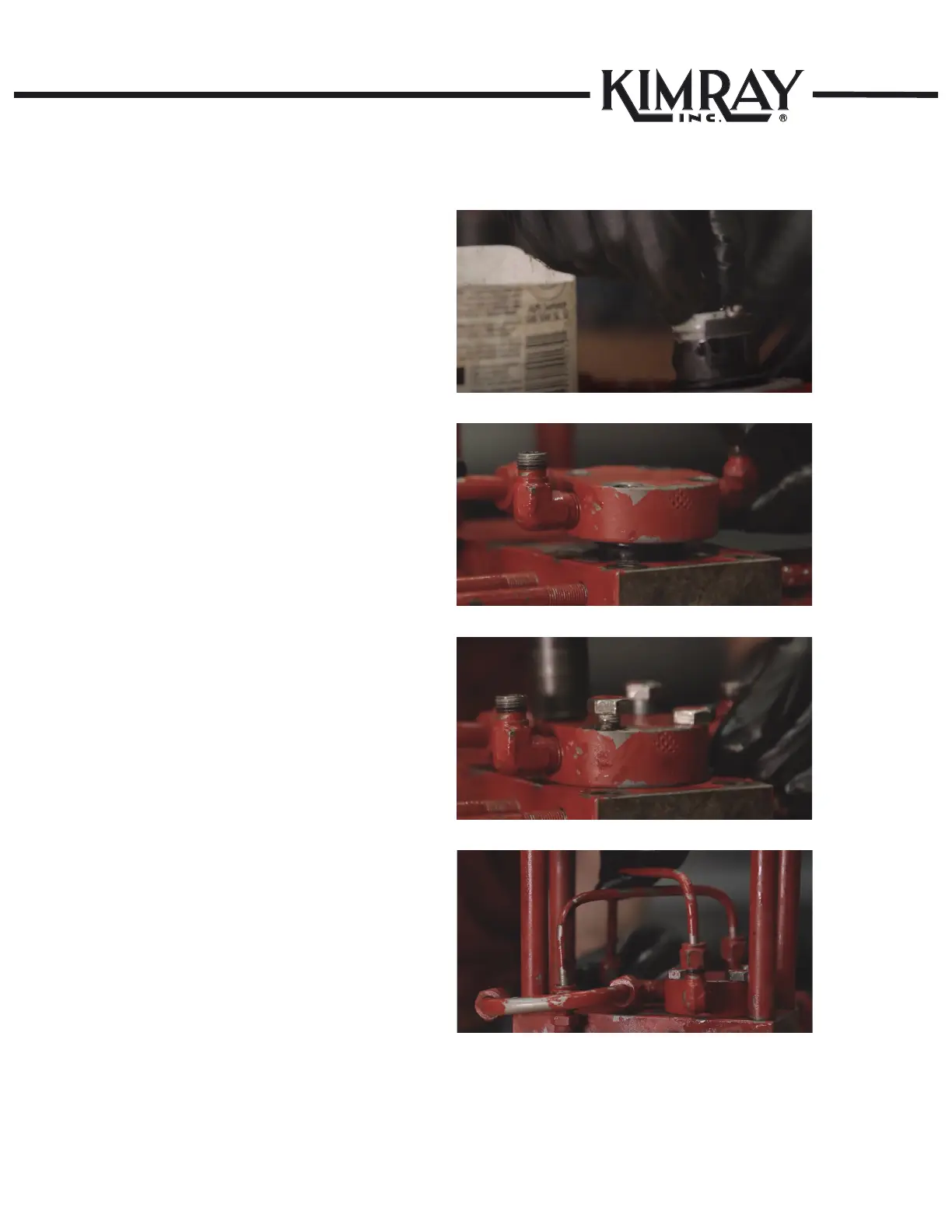

Place D slide on the plate. Use any oil to keep it in place
while inserting Main Piston Valve Housing (Fig 29.2 and
29.3).
Insert the bolts to hold the Main Piston Valve Housing in
place (Fig. 29.4).
Reinstall the legs.
Reinstall the tubing.
Connect the shorter tubing first and then connect the
larger tubing on top (Fig. 29.5).
Figure 29.5
ASSEMBLY
