Kinco-HP
User Manual
16
when the battery is empty.
The lithium battery is CR2032(3V) with connector. As shown in figure, user can order the
battery separately.

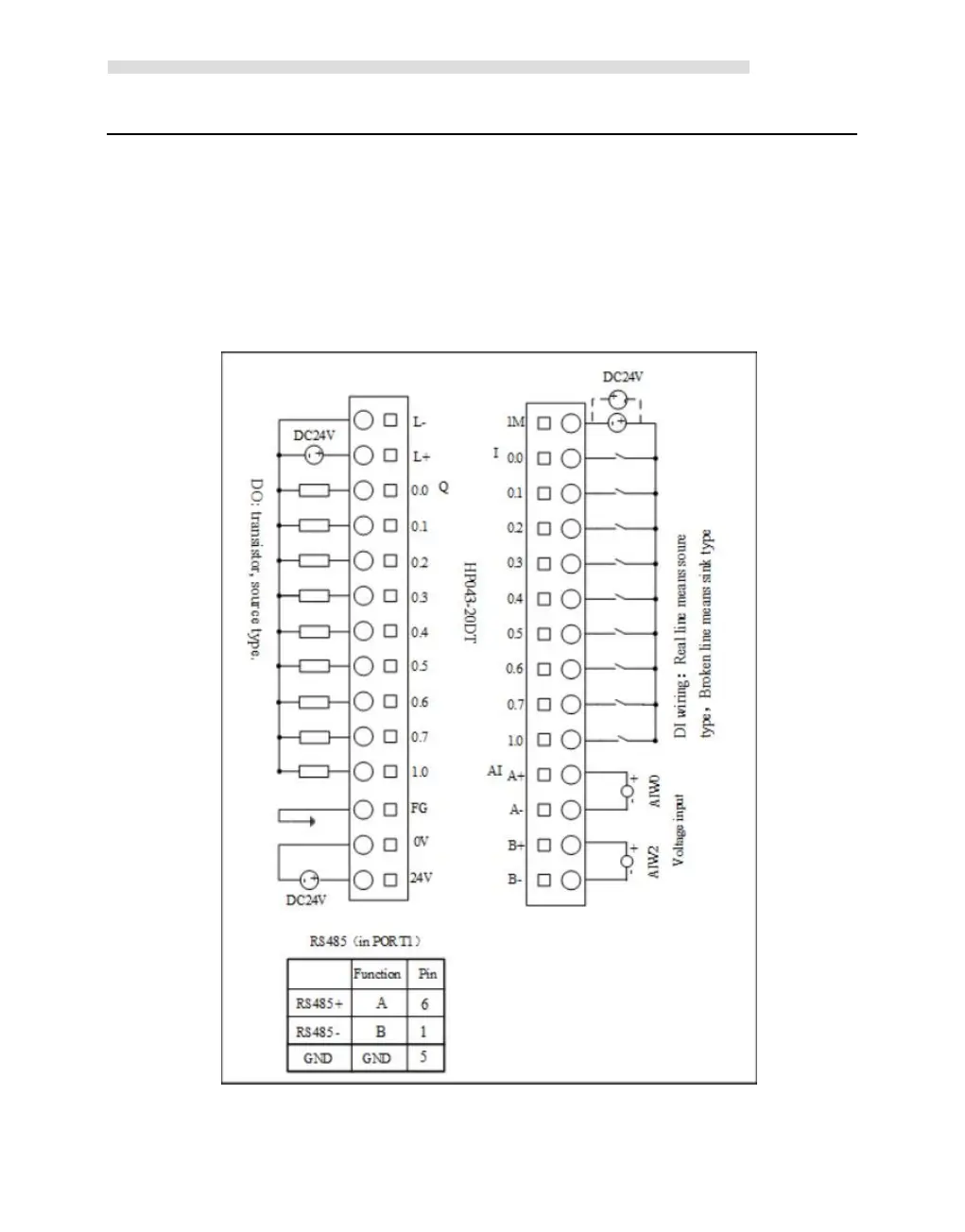

2.2 Wiring diagram
HP043-20DT
