Page 7
Sat 99°/101°
Power LED
SWM2 SWM1 PWR
18V 13V
For access to 101°satellite
programming, connect the
MAIN and AUX ports of the
antenna to both LNB inputs
labeled Sat 99°/101°
Not more than 100 ft of
total RG-6 coax between
antenna and DSWM30
Not more than 50 ft of RG-6
coax between antenna and
power inserter
Unused SWM outputs:
screw on dust cap
(no center pin)
Not necessary if DSWM30
is used in dry conditions
CONNECT COAX TO
PROPER INPUTS!
MAIN TO 18V
AUX TO 13V
AUX MAIN
DSWM30
110 AC
110 AC/DC
Power Supply
Optional Splitter for
more than one
receiver
To SWM Receivers
KC1194
4 Way SWM Splitter
MSPLIT 4R1-03
Receivers can be non-DVR or DVR receivers**
**If connecting to a DVR receiver, do not connect a coaxial cable
to the Satellite 2 input. With SWM, only connect to the
Satellite 1 port (labeled FTM or SWM)
Back of SWM Receiver
SAT IN (SWM-1)
110 AC/DC
Power Supply
SWM Power Inserter PI-29Z
(Do not use PI-21)
Power to SWM
Signal to IRD
KING Power Inserter
ANT REC
KING Antenna, KING Power Inserter (with power supply),
50’ coax and short coax included. All other items sold separately.
POWER INSERTER FOR INDOOR USE ONLY.
DO NOT use DSWM30H or your receiver
may be damaged.
DSWM30 is compatible with H21 or later
receivers and HR20 or later DVRs.
It is not compatible with D12 receivers.

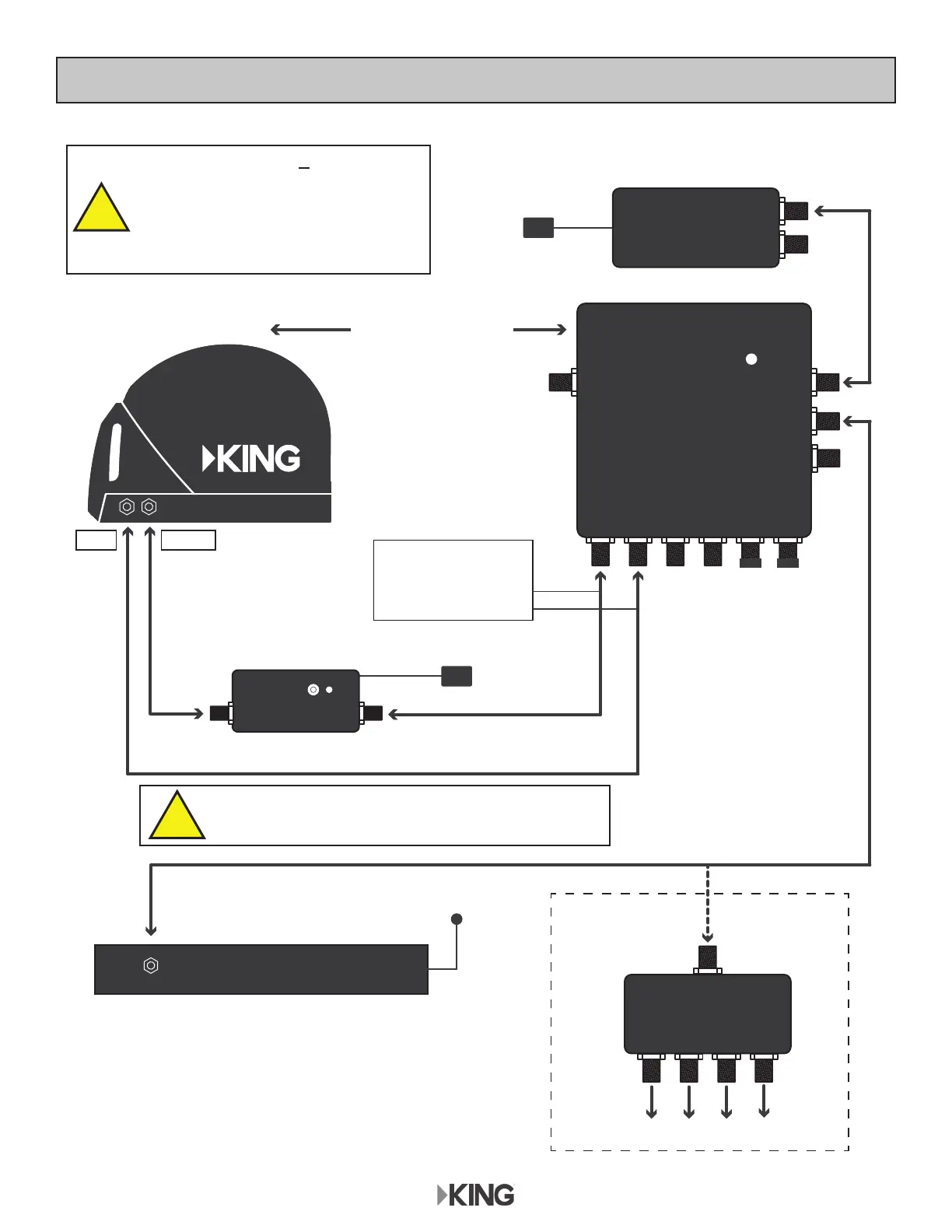

RECEIVERS H/HR25 OR HIGHER: USE THIS DIAGRAM
!
!
