King Quest VQ4100 - CONNECT ANTENNA BASED ON RECEIVER; RECEIVERS NOT H;HR25 OR HIGHER

Page 6
Receivers sold separately
Coax sold separately
AUX MAIN
110 AC/DC
Power Supply
MAIN Receiver
Optional AUX Receiver
110 AC
SAT IN
110 AC
SAT IN
KING Power Inserter
50’ RG-6 Coax Short Coax
ANT REC
KC1334
HAND-TIGHTEN COAX. OVER-TIGHTENING CAN DAMAGE CONNECTIONS.
POWER INSERTER FOR
INDOOR USE ONLY.
No kinks or sharp bends!
KC1286

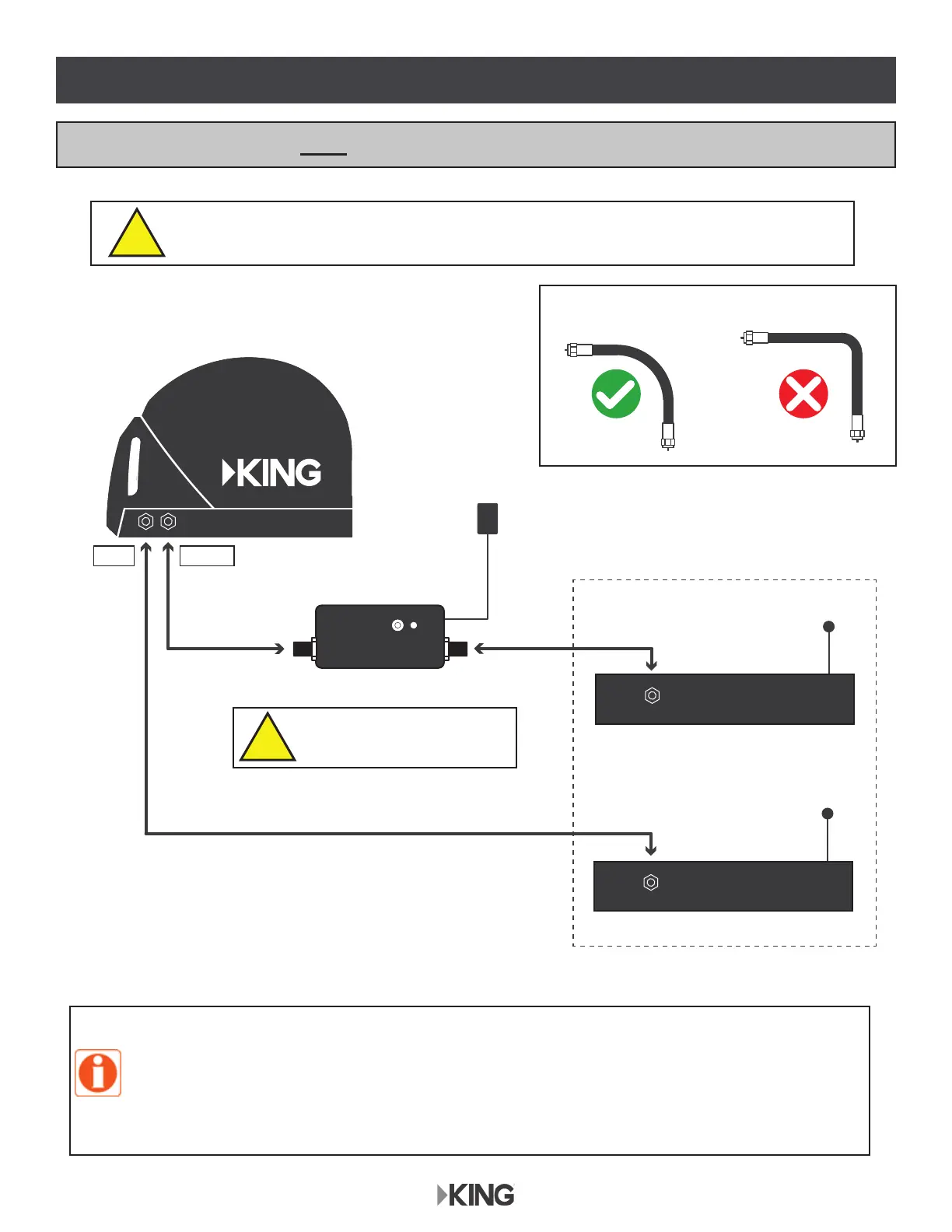

RECEIVERS NOT H/HR25 OR HIGHER: USE THIS DIAGRAM
6HFRQGUHFHLYHUPXVWEHFRQ¿JXUHGWKHVDPHDVWKHPDLQUHFHLYHUVHHSDJH
Second receiver must be the same as main receiver (SWM vs. non-SWM).
If your main receiver has a second “satellite in” port and built in DVR, you can connect
WKLVLQSXWWRWKH$8;SRUWWRUHFRUGSURJUDPVRQDGLႇHUHQWFKDQQHOWKDQWKHRQH\RXDUH
watching.
!
!
CONNECT ANTENNA BASED ON RECEIVER: PAGE 6 OR 7
