King Technology Pool Frog - Pool FROG Parts Identification; Cycler Parts List (Series 5400;5600); Cycler Parts List (Series 5100;5200); Off-Line Installation Parts

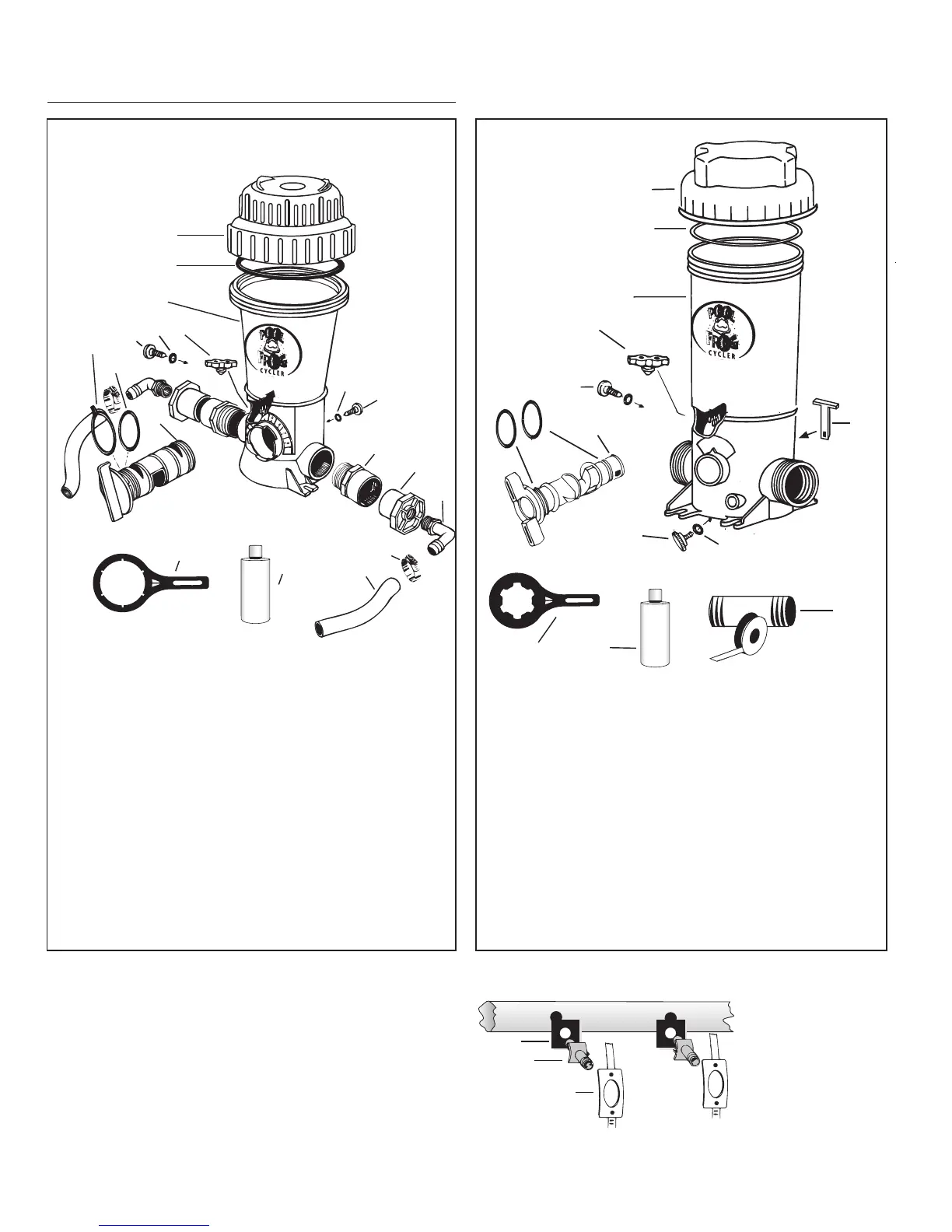

CYCLER DIAGRAM/PARTS LIST • 5100/5200 SERIES
REF. # PART NUMBER DESCRIPTION QTY. REQ.
1 & 2 01-22-1412 Cap w/O'Ring 1
2 01-22-1920 Cap O'Ring 1
3 N/A Body 1
4 01-22-9480 Pressure Relief Valve 1
5, 6, 7 01-22-1441 Control Dial
with Assembly Kit 1
6 01-22-1450 Control Dial O'Ring Set 1
7 01-22-1461 Control Dial Locking Pin 1
8 & 9 01-22-9941 Knob with O'Ring 2
10 01-22-1710 Nipple Kit 1
11 01-22-9790 Cap/Control Dial Tool 1
12 01-22-9970 Silicone Lubricant 1
11
Parts List
CYCLER DIAGRAM/PARTS LIST • 5400/5600 SERIES
REF. # PART NUMBER DESCRIPTION QTY. REQ.
1 & 2 01-22-9412 Cap w/O'Ring 1
2 01-22-9920 Cap O'Ring 1
3 N/A Body 1
4 01-22-9480 Pressure Relief Valve 1
5, 6, 7 01-22-9441 Control Dial
with Assembly Kit 1
6 & 7 01-22-9450 Control Dial O'Ring Kit 1
8 & 9 01-22-9941 Knob with O'Ring 2
10 01-22-9490 2" Male Adapter 2
18 01-22-8870 Cap/Control Dial Tool 1
19 01-22-9970 Silicone Lubricant 1
10
OFF-LINE PARTS Included with 5430/5630 Series
REF. # PART NUMBER DESCRIPTION QTY. REQ.
11* 01-22-8620 2" X 1/2" Bushing 2
12 01-22-7800 90 Degree Elbow 2
13 01-22-7690 Small Clamp 4
14 01-22-7700 6’ PVC Tubing 1
15 01-22-7850 Scoop Gasket 2
16 01-22-7790 Venturi Scoop 2
17 01-22-7910 Scoop Clamp 2
C
O
P
Y
C
O
P
Y
C
O
P
Y
C
O
P
Y
O
T
H
E
R
C
O
P
Y
?
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
11
12
7
9
1
2
3
4
8 & 9
8
6
5
1
2
3
4
5
7
6
8
9
10
11
12
13
14
C
O
P
Y
C
O
P
Y
C
O
P
Y
C
O
P
Y
O
T
H
E
R
C
O
P
Y
?
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
18
19
17
16
15
9
8
