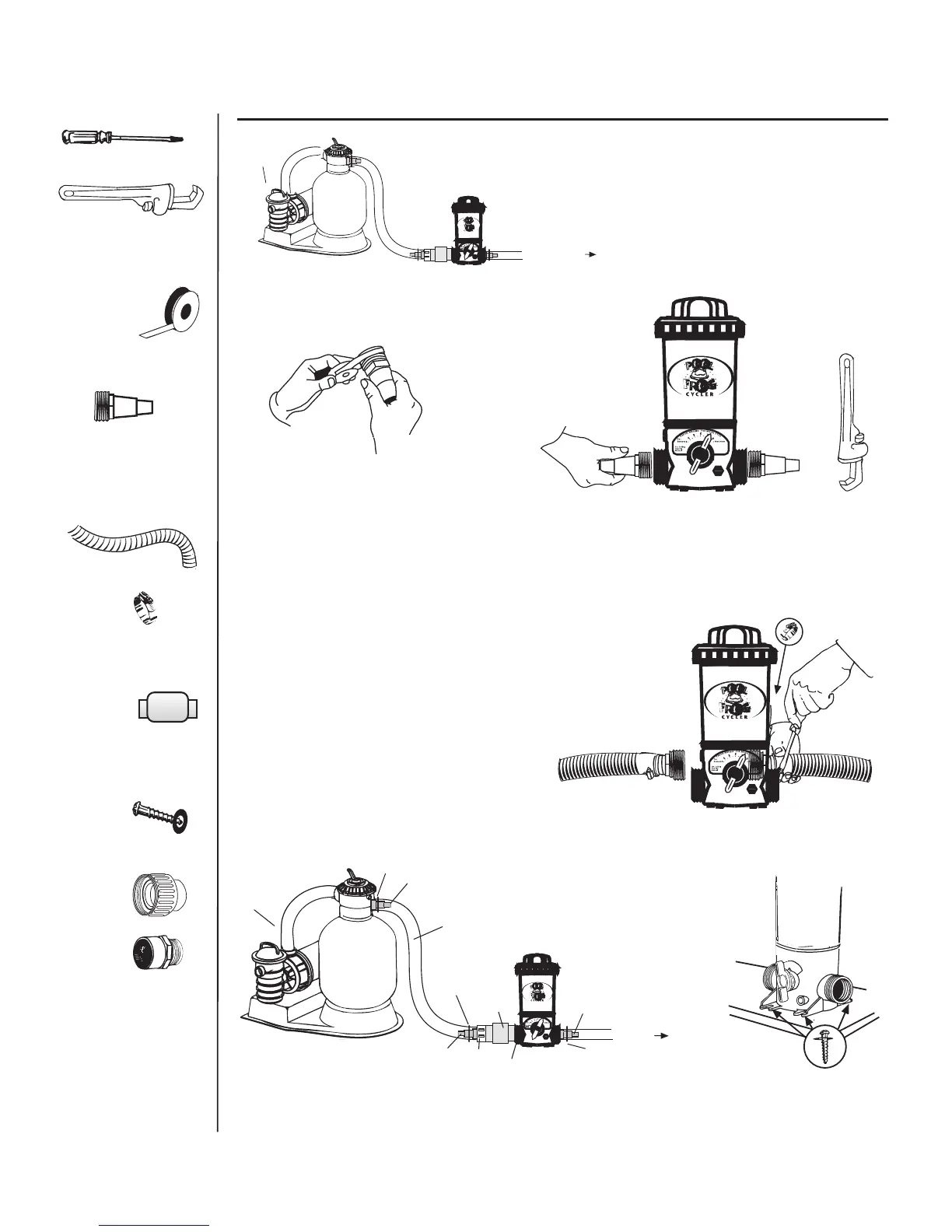

King Technology Pool Frog - Above Ground Base Installation (Models 5100;5200); Connecting Cycler to Pump and Filter; Attaching Flex Hose and Clamps; Mounting the Cycler on a Base

15
Apply teflon tape to the
threaded end of both hose
adapters.
Screw adapters into
each end of Cycler.
Tighten turning 1 to 2
Attach the filter section of
flex hose to one hose
adapter and the return
section of flex hose to the
other hose adapter with
clamps and tighten with
screwdriver.
Above Ground, Base Installation – Models 5100/5200
TOE NIPPLE
CHECK
VALVE
BUSHING
HOSE
CLAMP
HOSE
ADAPTER
HOSE
CLAMP
HOSE
ADAPTER
TO POOL
1 1/2" OR 1 1/4"
FLEX HOSE
1 1/2" X 1 1/2" X 1 1/4"
HOSE ADAPTER
HOSE
CLAMP
FILTER &
PUMP
The Cycler should always be installed
between the filter and pool (or between
heater and pool if applicable).
TO POOL
PUMP
FILTER
revolutions with wrench.
Do Not over tighten.
1.
2.
3.
4.
5.
MATERIALS NEEDED:
Two
Hose
Clamps
Check Valve
Rainbow #172288
RECOMMENDED:
OPTION:
1 1/2" Threaded by
1 1/2" Slip Bushing.
When installing with
hard PVC pipe, use
either a half union on
the outside port
threads or a bushing
on the inside port
threads.
#10 X 1 1/4" Phillips
Pan Head Screws with
Washers
Half
Union
or
TOOLS NEEDED
If using a chlorine Bac Pac installing a corrosion resistant check
valve is recommended.
Teflon Tape
Two Hose Adapters
1 1/2" X 1 1/2" X 1 1/4"
Two Sections of
of 1 1/2" Flex Hose
(one provided with
filter)
For better stability, Cycler
may be mounted on a base
using Phillips pan head screws.
Screwdriver
Wrench
