Special Inground
Installations
B. With In-floor Cleaners
A. With High GPMS
Install T-fittings exactly as
shown.
If using POOL FROG
®
with
the chlorine Bac Pac,
special installations
should be considered
when:
1. Water flow is higher than
80 gpm.
2. In-floor cleaner is included
with pool.
3. Pool and spa combination
with common equipment.
NOTE: Over chlorination or
damage to the Cycler or
other equipment could result
if these special installations
are not used in these
situations.

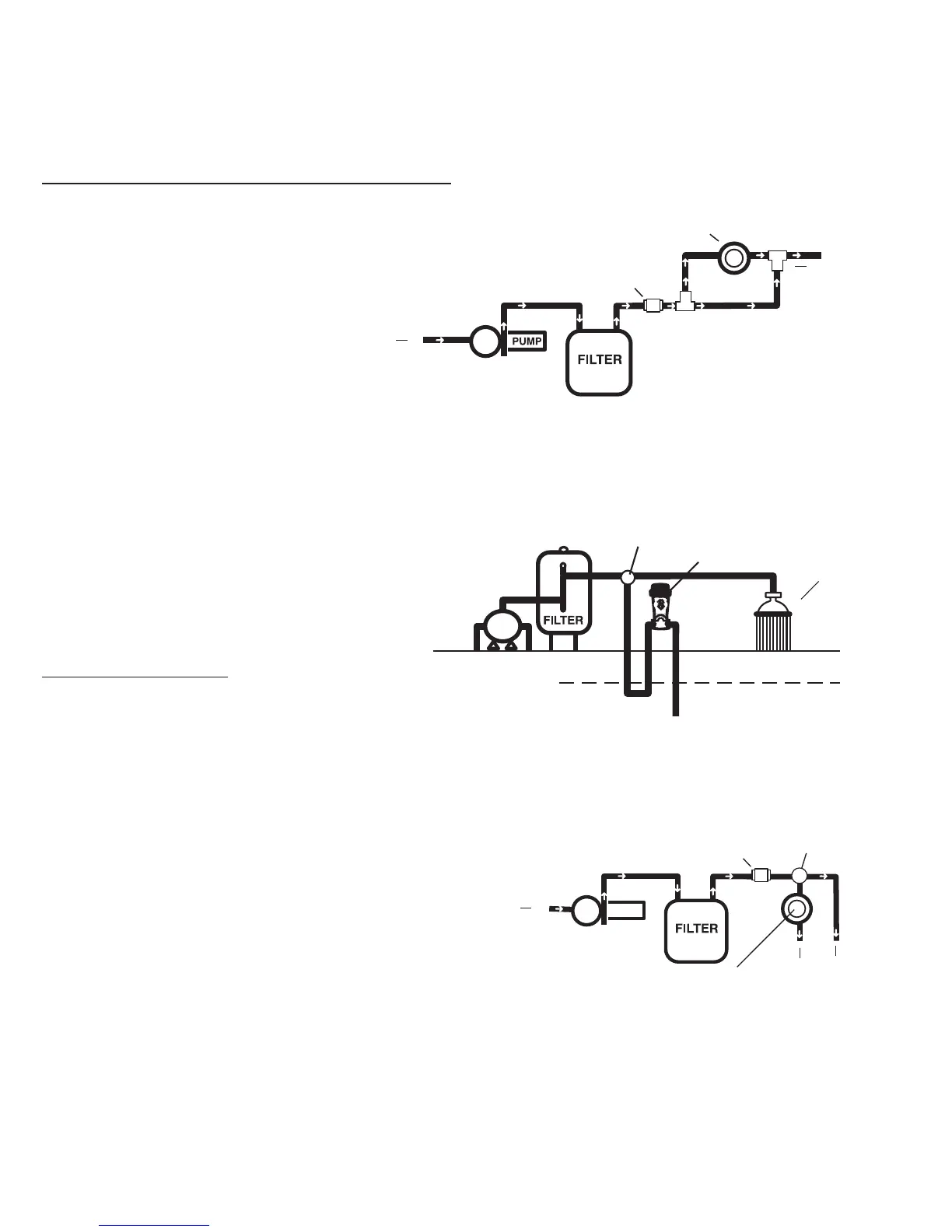

C. Pool and Spillover Spa Combination
TO POOL
TO SPA
3-WAY
CYCLER
CHECK VALVE
PUMP
SUCTION
FROM
POOL/SPA
➜
➜
➜
➜
➜ ➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
➜
CYCLER
PUMP
3-WAY VALVE
TO POOL
CYCLER
SUCTION
FROM
POOL/SPA
CHECK
VALVE
BACK PRESSURE
3 to 8 psi is the
recommended back
pressure for this system.
Higher back pressures result
in over chlorination. Adjust
eye ball fittings in the return
jets to a larger size to
decrease back pressure or a
smaller size to increase back
pressure.
IN-FLOOR
VALVE
POOL WATER LEVEL
