KING 2016E - Wiring Diagram

19

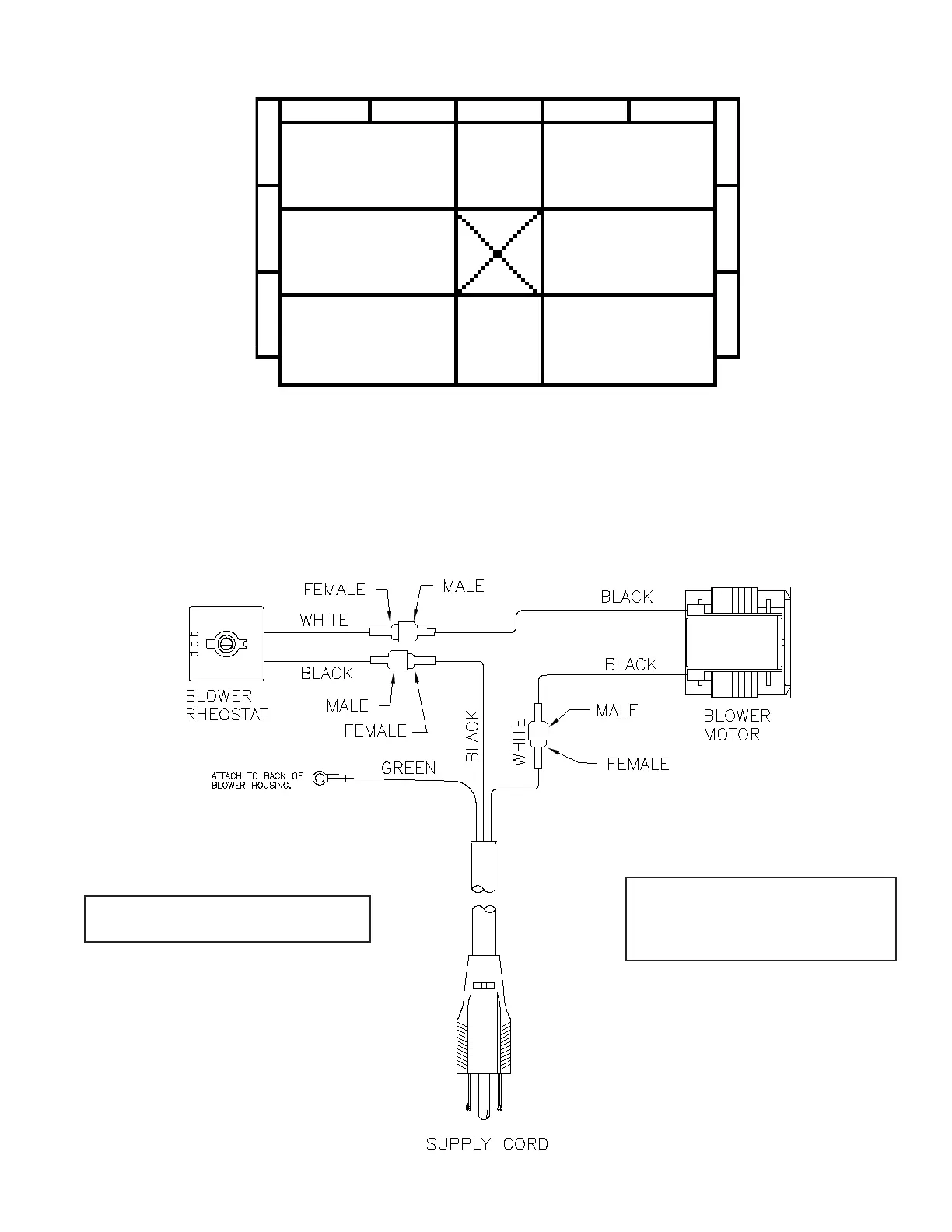

Wiring Diagram
WARNING: do not route the supply
cord near or across hot surfaces!
CAUTION: The blower assembly
must be disconnected from the
source of electrical supply before
attempting any maintenance.
Brick Placement - (Top Inside View Of Firebox)
1. Insert right & left side rebrick as shown.
2. Insert rear rebrick as shown.
3. Insert bottom 1/2 rebrick and ash dump cover as shown.
1/2
BRICK
1/2
BRICK
