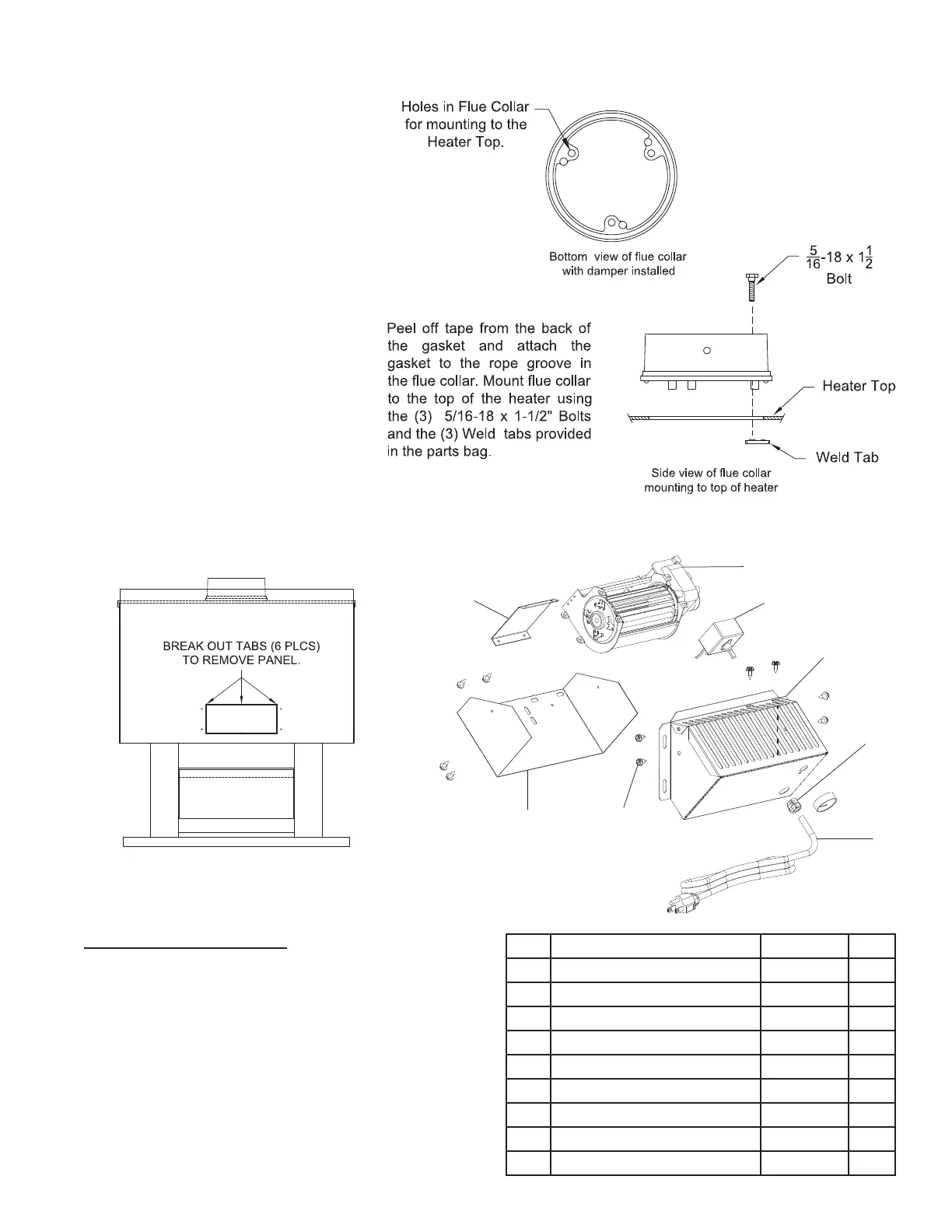

KING 2016E - Mounting Cast-Iron Flue Collar; Blower Assembly

7
This heater comes equipped with a
cast-iron ue collar.
Flue Collar - 40292
5/16-18 x 1-1/2" Bolts (3 req.)
Weld Tab (3 req.)
Gasket
Mounting Cast-Iron Flue Collar
KEY DESCRIPTION PART NO. QTY.
1 Blower Housing Back 25089B 1
2 Blower Housing Front 25090B 1
3 Blower Motor 80442 1
4 Rheostat w/Nut and Knob 80090 1
5 Strain Relief Bushing 80109 1
6 Power Supply Cord 80232 1
7 Heat Shield 891861 1
8 10AB x 3/8 Hex Screw 83172 12
N/S #12 x 3/4 Teks Screw C23799 4
ASSEMBLY INSTRUCTIONS
Step 1: THE BLOWER ASSEMBLY MUST BE
DISCONNECTED FROM THE SOURCE OF ELECTRICAL
SUPPLY BEFORE ATTEMPTING THE INSTALLATION.
With pliers, cut the 6 micro-joints and remove panel.
Note: Discard the panel.
Step 2: Fix the assembly to the back of the stove with
the four screws provided.
THE BLOWER ASSEMBLY IS INTENDED FOR USE ONLY
WITH A STOVE THAT IS MARKED TO INDICATE SUCH
USE.
DO NOT ROUTE THE SUPPLY CORD NEAR OR ACROSS
HOT SURFACES!
Blower Assembly
1
2
3
4
5
6
7
8
