Minimum Clearance To Combustible Walls
D
E
D
E
A
F
B
G
C
D
E
D
E
A
F
B
G
C
D
E
D
E
A
F
B
G
C
Minimum clearances for corner
installation is 12 inches (305mm) from the
corners of the heater to the nearest wall.
The provision that clearances may only
be reduced by means approved by
regulatory authority
CAUTION: Keep furnishings and other
combustible materials away from the
heater.

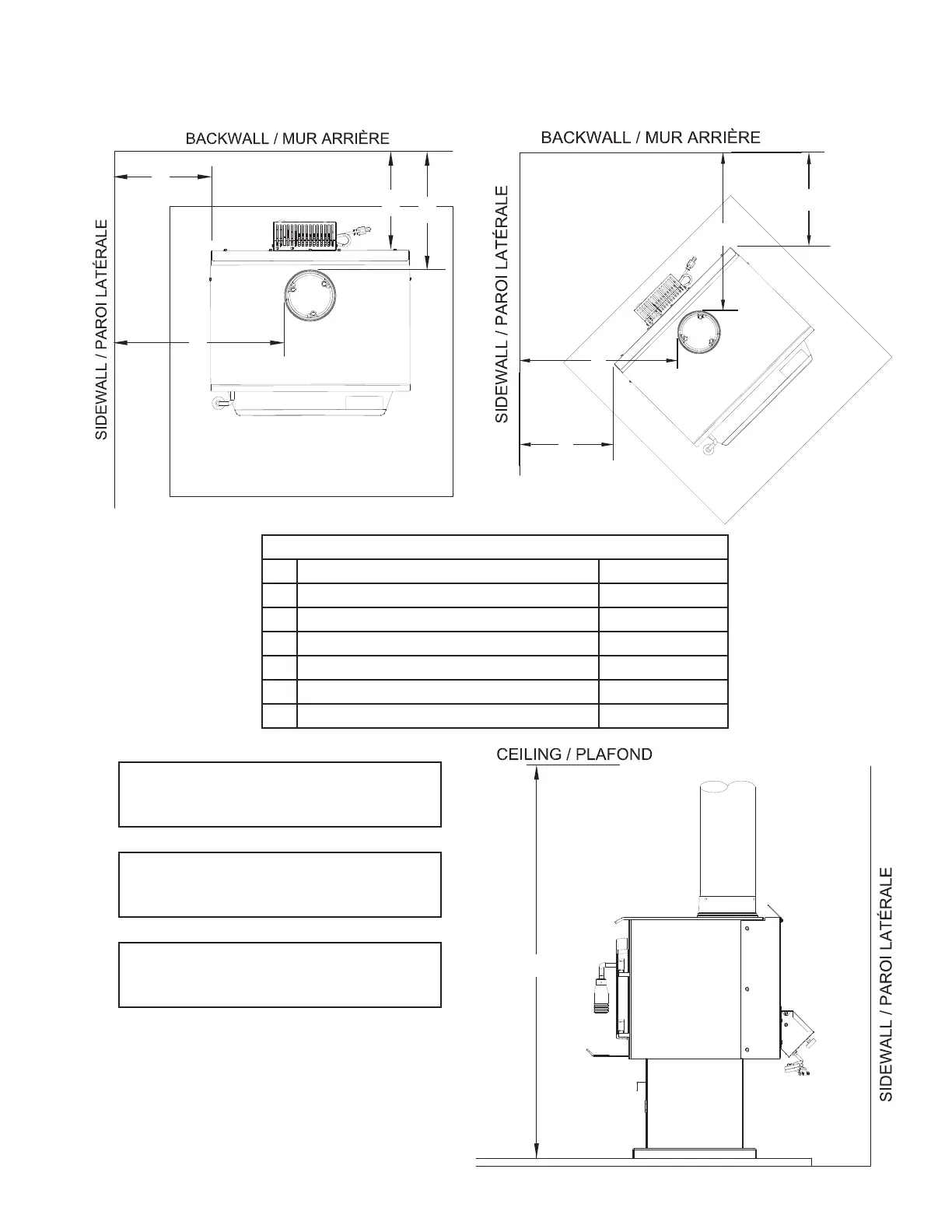

Stove Clearances
A Side Wall 18" (457mm)
B Back Wall 12" (305mm)
C Ceiling Height 84" (2134mm)
D Closest Wall to Corner 12" (305mm)
E Wall to Chimney Connector (Alcove) 21" (533.4mm)
F Side Wall to Chimney Connector 22.25" (565mm)
G Back Wall to Chimney Connector 15" (381mm)
