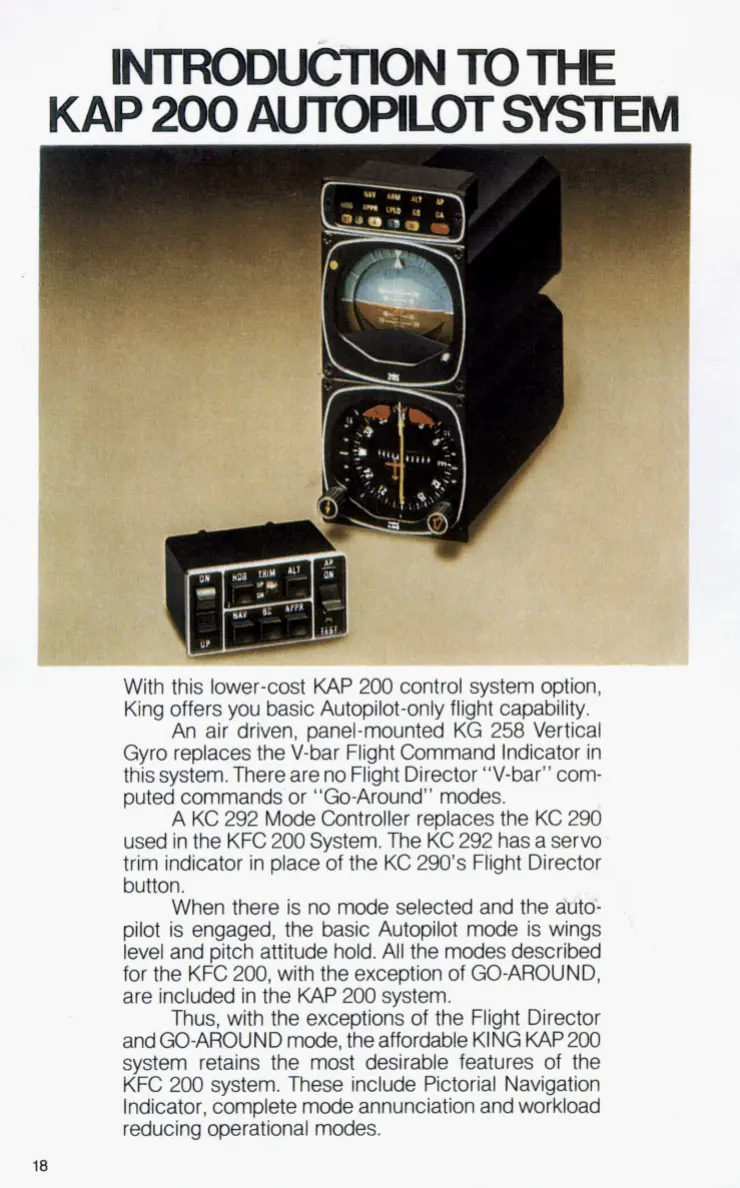

With this lower-cost KAP 200 control system option,
King offers you basic Autopilot-only flight capability.
An air driven, panel-mounted KG 258 Vertical
Gyro replaces the V-bar Flight Command Indicator in
this system. There are no Flight Director “V-bar” com-
puted commands or “Go-Around’’ modes.
A KC 292 Mode Controller replaces the KC 290
used in the KFC 200 System. The KC 292 has a servo
trim indicator in place of the KC 290’s Flight Director
button.
When there is no mode selected and the abtd-
pilot is engaged, the basic Autopilot mode is wings
level and pitch attitude hold. All the modes described
for the KFC
200,
with the exception of GO-AROUND,
are included in the KAP 200 system.
Thus, with the exceptions of the Flight Director
and GO-AROUND mode, the affordable KING KAP200
system retains the most desirable features of the
KFC
200
system. These include Pictorial Navigation
Indicator, complete mode annunciation and workload
reducing operational modes.
18
