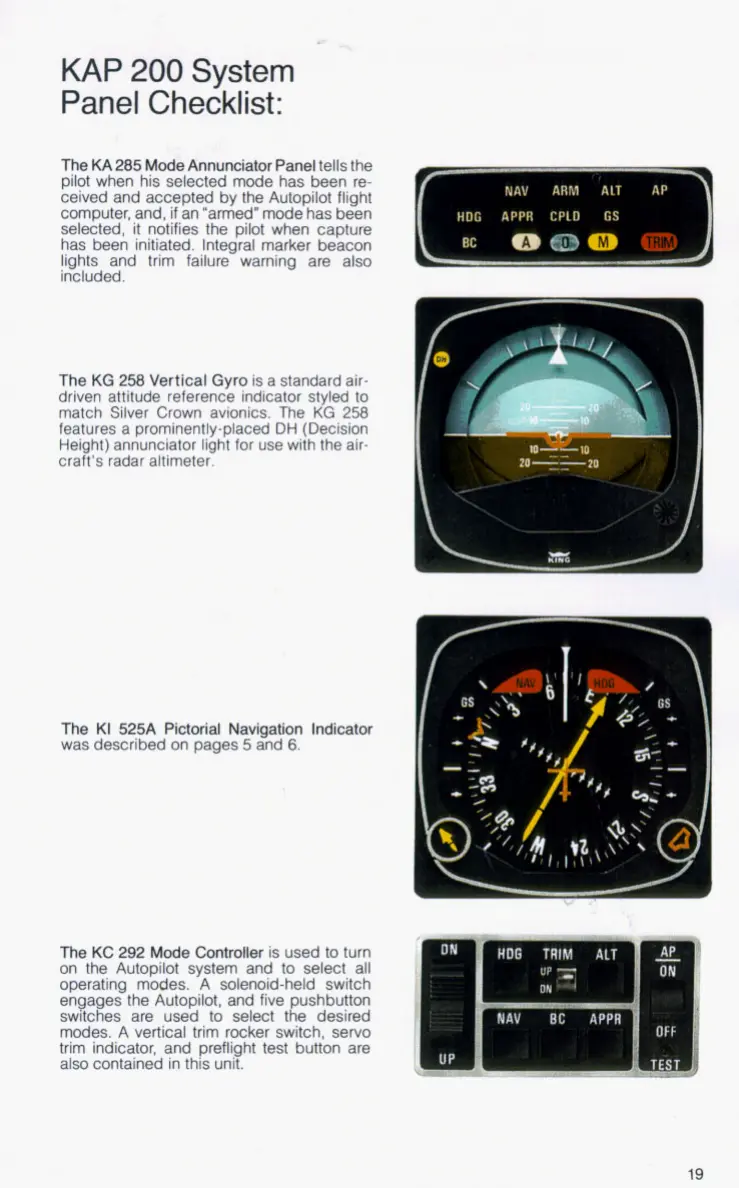

KAP 200 System
Panel Checklist:
The KA 285 Mode Annunciator Panel tells the
pilot when his selected mode has been re-
ceived and accepted by the Autopilot flight
computer, and,
if an 'armed" mode has been
selected, it notifies the pilot when capture
has been initiated. Integral marker beacon
lights and trim failure warning are also
included.
NAV ARM ALT AP
HOG APPR CPLD GS
" II
I
The KC 292 Mode Controller is used to turn
on the Autopilot system and to select all
operating modes.
A solenoid-held switch
engages the Autopilot, and five pushbutton
switches are used to select the desired
modes.
A vertical trim rocker switch, servo
trim indicator, and preflight test button are
also contained in this unit.
19
