KING QUEST VQ4200 - Typical Roof Installation Routing; Cable Termination

Page 23
HEIGHT OF
OBSTRUCTION
APPROXIMATE MINIMUM DISTANCE
TO EDGE OF ANTENNA UNIT
10” 8”
11” 10”
12” 12”
13” 14”
14” 16”
15” 18”
16” 20”

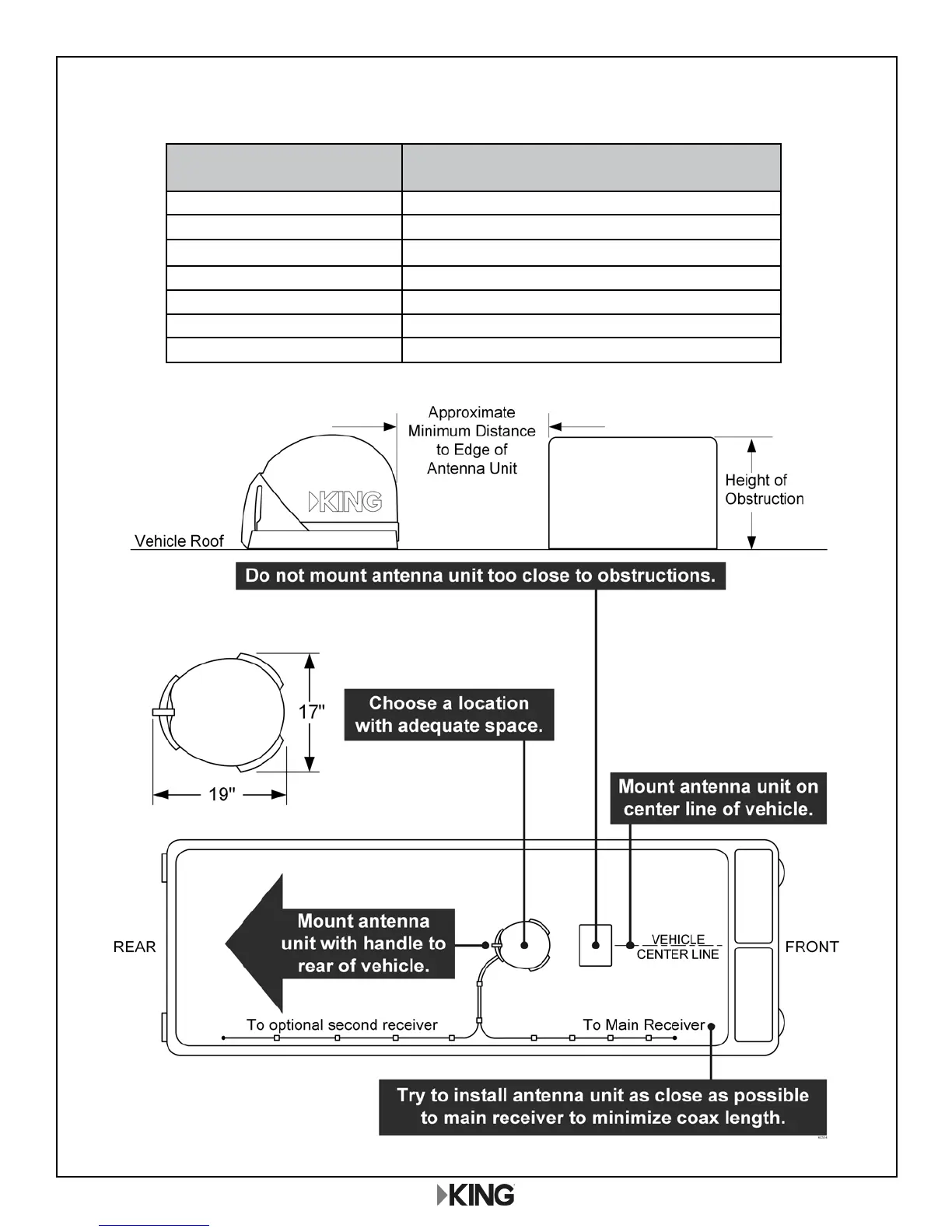

ANTENNA UNIT LOCATION
