Getting Started . . .
Before you start

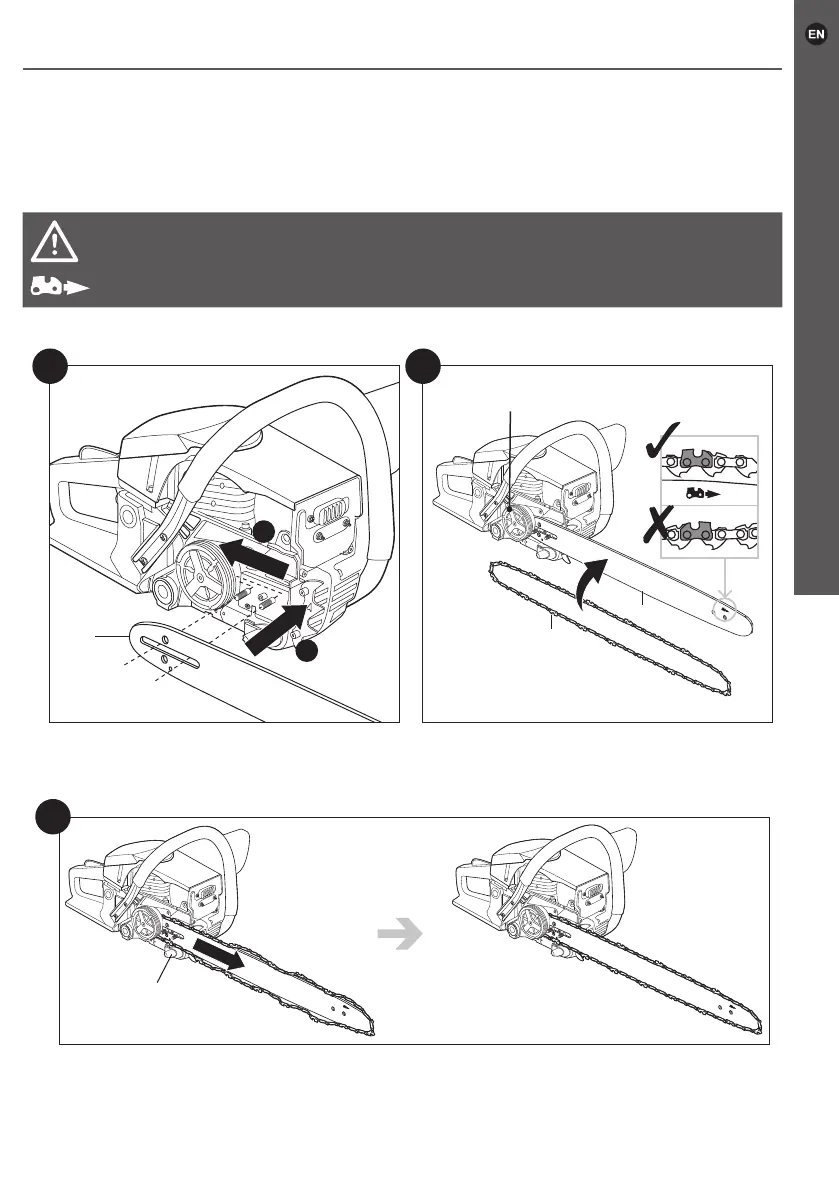

3. Place the slot on the guide bar (2) over the 2 bolts. Make sure to t the guide bar
with the saw chain “cutter” symbol at the top of the bar (step 1, Fig. 3).
4. Push the guide bar (2) to the left towards the drive sprocket (step 2, Fig. 3).
WARNING! The direction of the saw chain “cutters” must be as indicated by
the symbol and arrow on the guide bar!
5.
Place the saw chain (3) over the drive sprocket and t around the guide bar (Fig. 4).
3
1
2
2
4
Drive sprocket
(behind the clutch)
2
3
6.
Pull the guide bar carefully towards the right to tighten the saw chain. Make sure
the saw chain is placed above the chain catcher (20) (Fig. 5).
5
20
