SIZING PTO SHAFT
STEP 1
Cutting the PTO shaft to length. NOTE: Be sure
to cut equal lengths of each PTO shaft section.
Clamp end of PTO shaft in a vice and cut off
shield where marked. (Figure 1-A & 1-B)
STEP 2
Using cut section of the shield as a guide cut shaft
off the same amount. (Figure 2)
STEP 3
Repeat steps 1 and 2 for other PTO shaft section.
STEP 4
Use a file to deburr PTO shafts. Clean up all
chips, burrs and filings from both ends of the PTO
shaft.
Note: If you shear the bolt that attaches the PTO shaft
to the gearbox re-place with a grade 2 bolt only.
Replacement with another grade of bolt will void
your warranty and may cause terminal damage to
the PTO shaft, gearbox, or tractor.

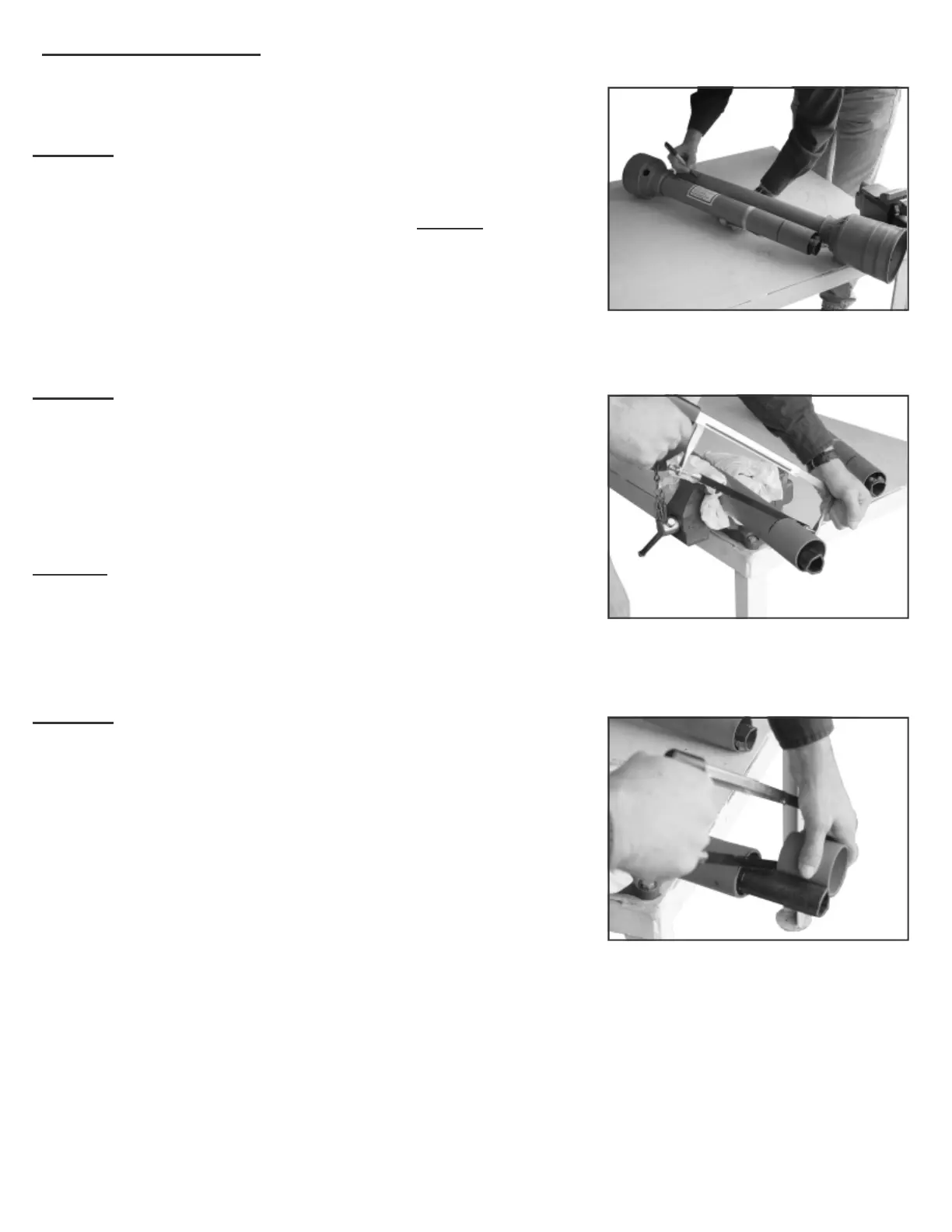

Figure 1-A
Figure 1-B
Figure 2
