REPLACEMENT OF THE SPREADER VANES
In case the spreader vanes of the disc brake or get damaged, it will be
necessary to replace them with new ones.

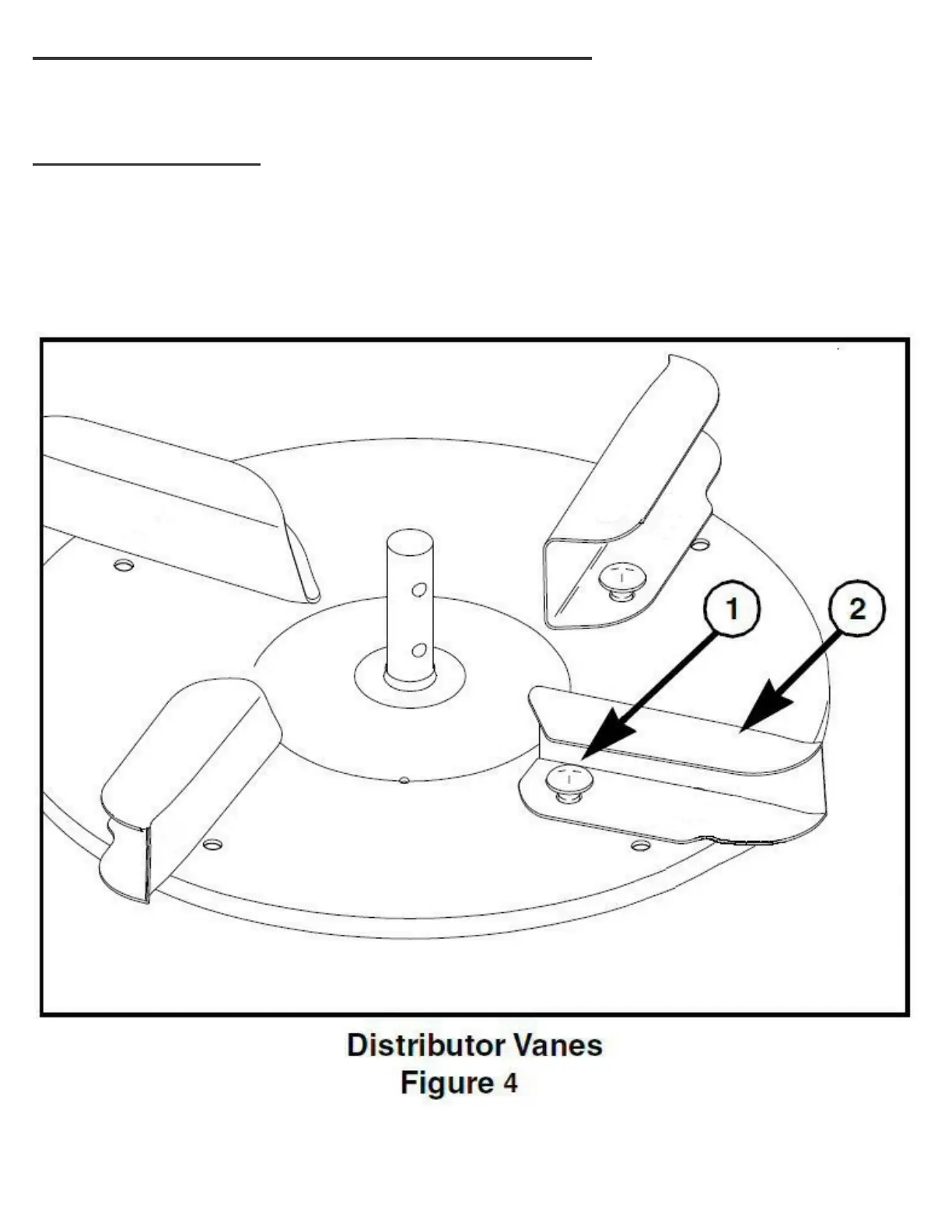

See Figure 4 Below
Unscrew the nut (#1)and replace the damaged vane (#2). The nuts and bolts
you remove, if not damaged may be reused. If they are damaged or worn
replace them with the same type and size nuts and bolts.
