3. Assembly Tutorial 4. Assembly Tutorial
54

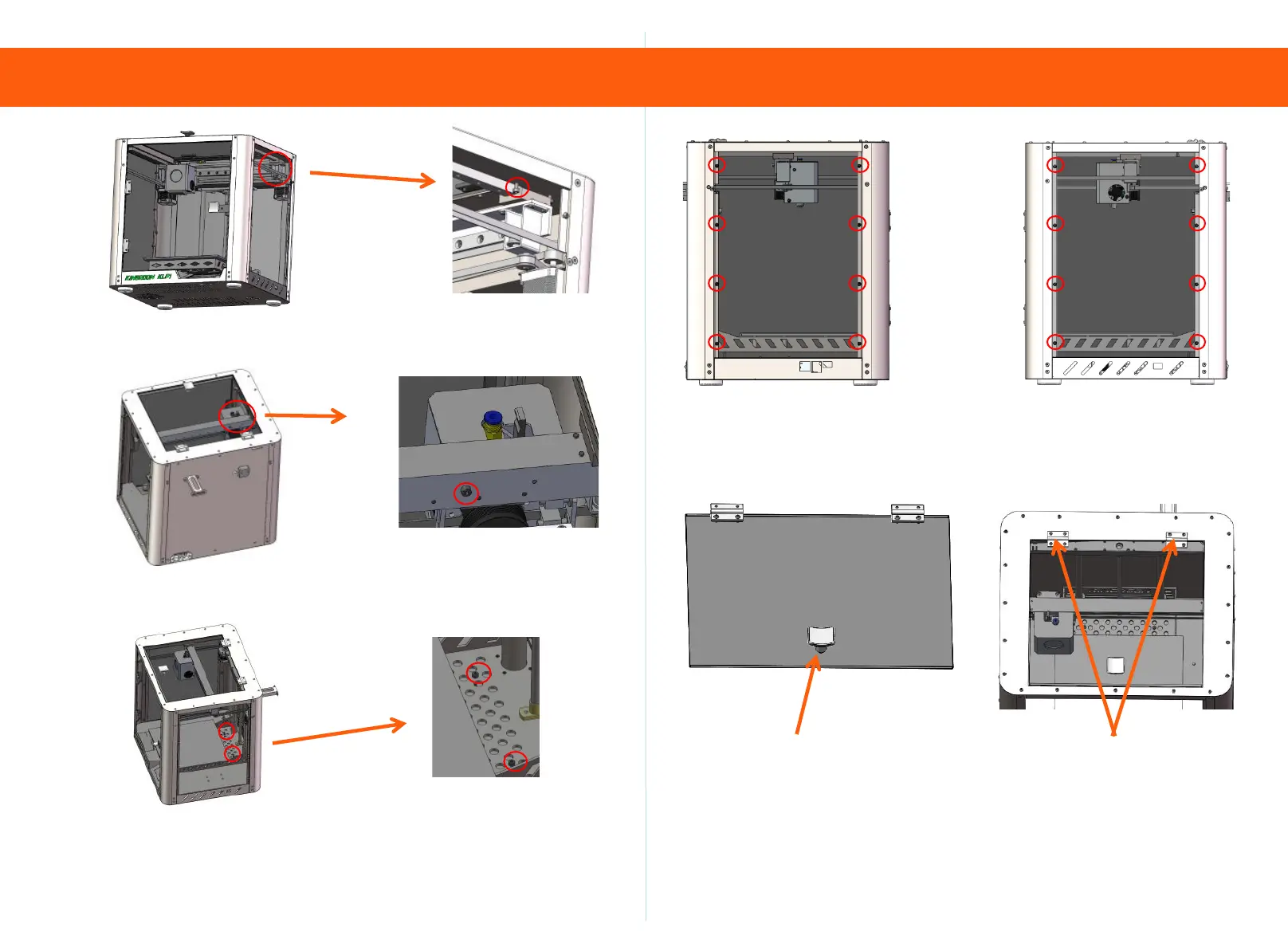

Step 1
Remove the fixing screws on the Y-axis.
Step 2
Remove the fixing screws on the X-axis.
Step 3
Remove the fixing screw on the Z-axis.
Step 4
Tear off the protective film on board 1 and use 16 M3 * 16 screws to
secure the two boards on the left and right sides of the machine.
M3*6-16PCS
No.1 -2PCS
M4*6-1PCS
M3*6-4PCS
Step 5
Tear off the protective film on board 2 and use one M4 * 6
screw to secure the handle to board 2.Use 4 M3 * 6 screws to
secure the No.2 board to the top of the machine.
No.2 -1PCS
To Next Page
