3

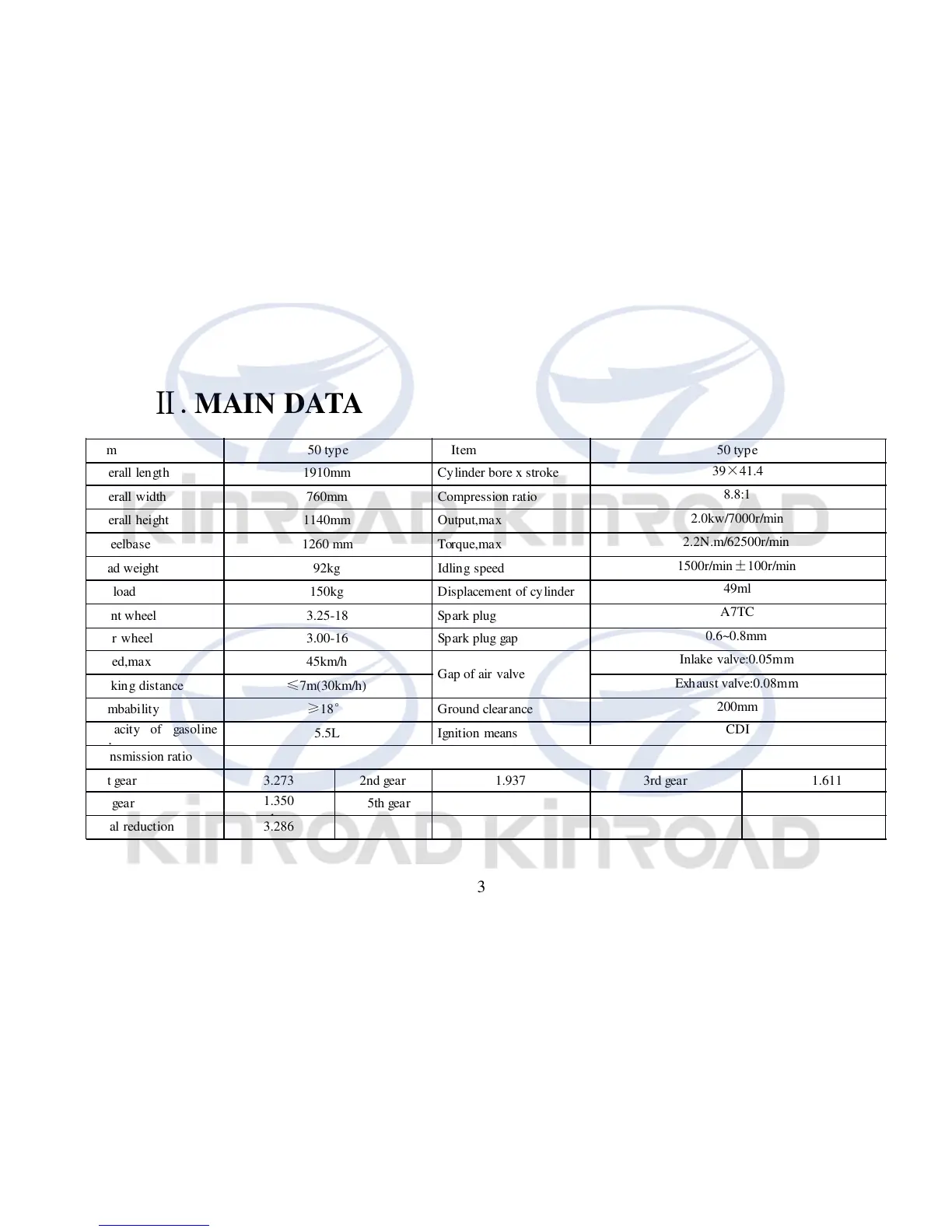

Ⅱ.MAIN DATA
Item 50 type Item 50 type
Overall length 1910mm Cylinder bore x stroke
39×41.4
Overall width 760mm Compression ratio
8.8:1
Overall height 1140mm Output,max
2.0kw/7000r/min
Wheelbase 1260 mm Torque,ma x
2.2N.m/62500r/min
Dead weight 92kg Idling speed
1500r/min±100r/min
Payload 150kg Displacement of cylinder
49ml
Front wheel 3.25-18 Spark plug
A7TC
Rear wheel 3.00-16 Spark plug gap
0.6~0.8mm
Speed,max 45km/h
Gap of air valve
Inlake valve:0.05mm
Braking distance ≤7m(30km/h)
Exhaust valve:0.08mm
Climbability ≥18° Ground clearance
200mm
Cap acity of gasoline
