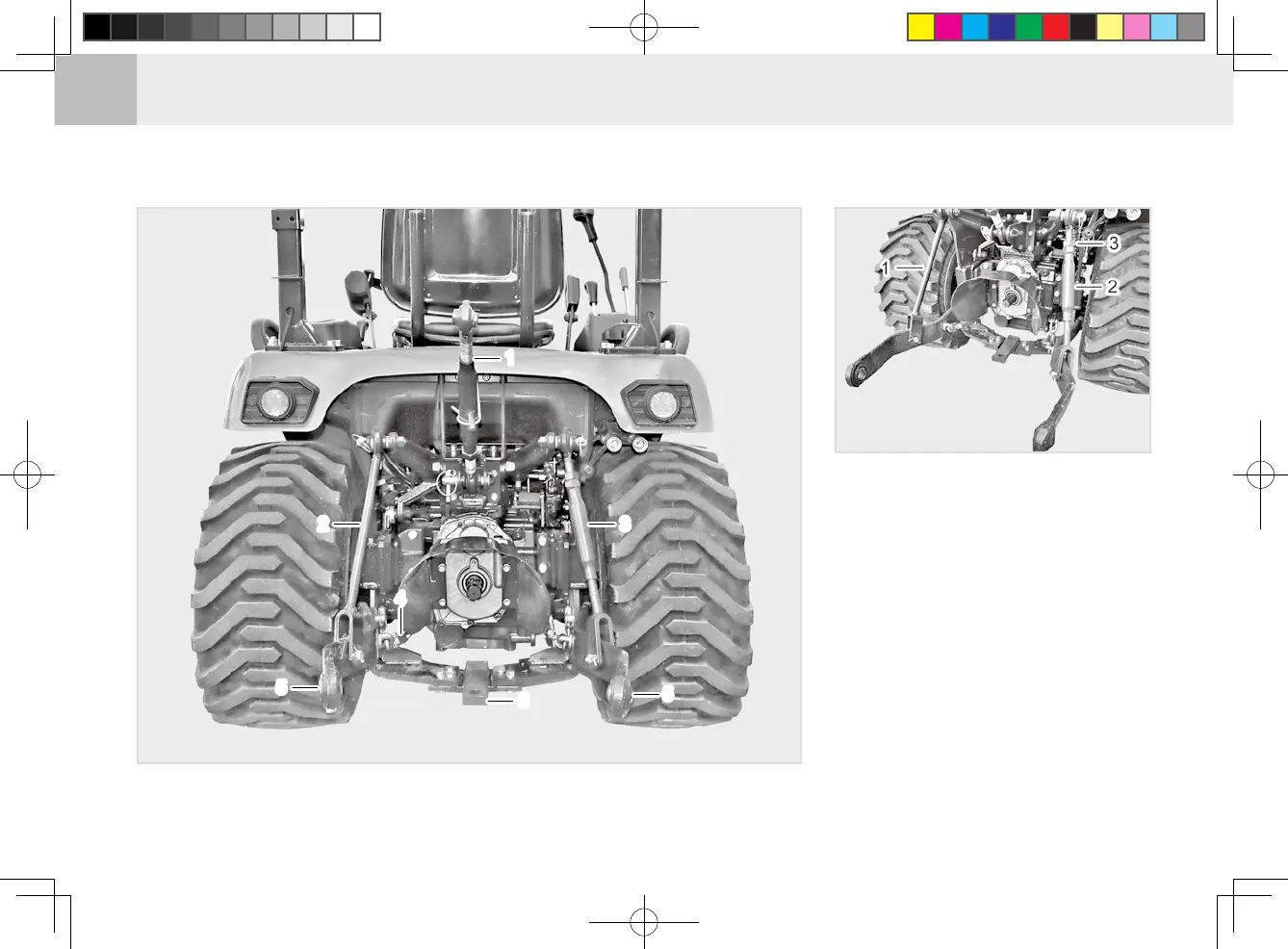

OPERATION TIP FOR 3-POINT HITCH ELEMENTS
(1) Lift Rod (2) Turnbuckle
(3) Lock Nut
1. Adjust the implement level bal-
anced by turning the turnbuckle.
2.Afteradjustment,xitwiththelock
nut
(1) Top Link
(2) Crank Lifting Rod (L)
(3) Crank Lifting Rod (R)
(4) Check Link
(5) Lower Link
(6) Drawbar
ADJUSTMENT OF LIFT ROD
