19
MAINTENANCE
7

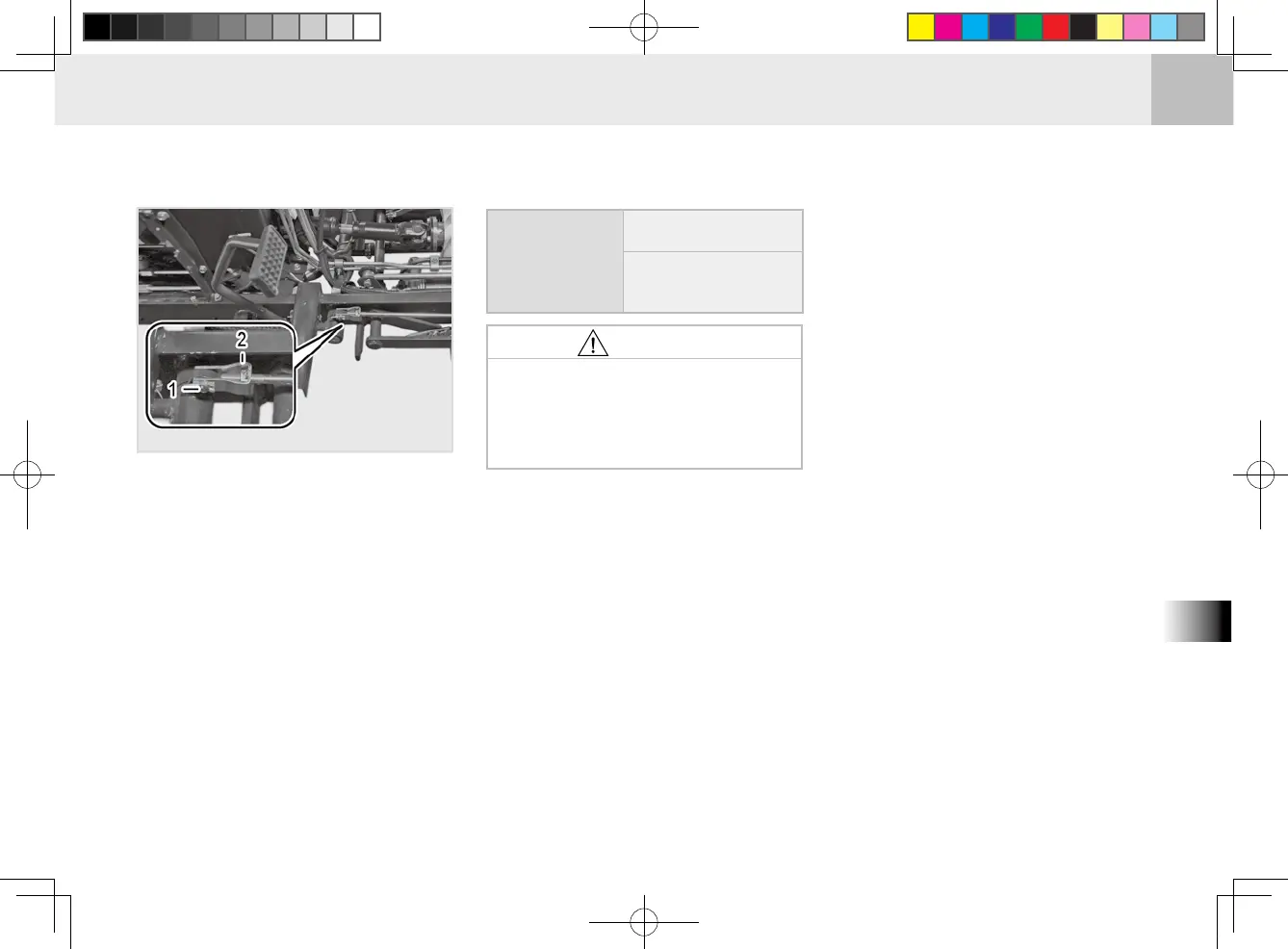

3. Release the pin and turn the turn
buckle to adjust the brake pedal.
(1) Pin (2) Turn Buckle
M46O718A
Proper brake
pedal free travel
(A)
0.8 ~ 1.2 in.
(20 ~ 30 mm)
Keep the free travel
in the right and left
brake pedals equal
To avoid personal injury:

Stop the engine and chock the
wheels before checking brake
pedal.
CAUTION
