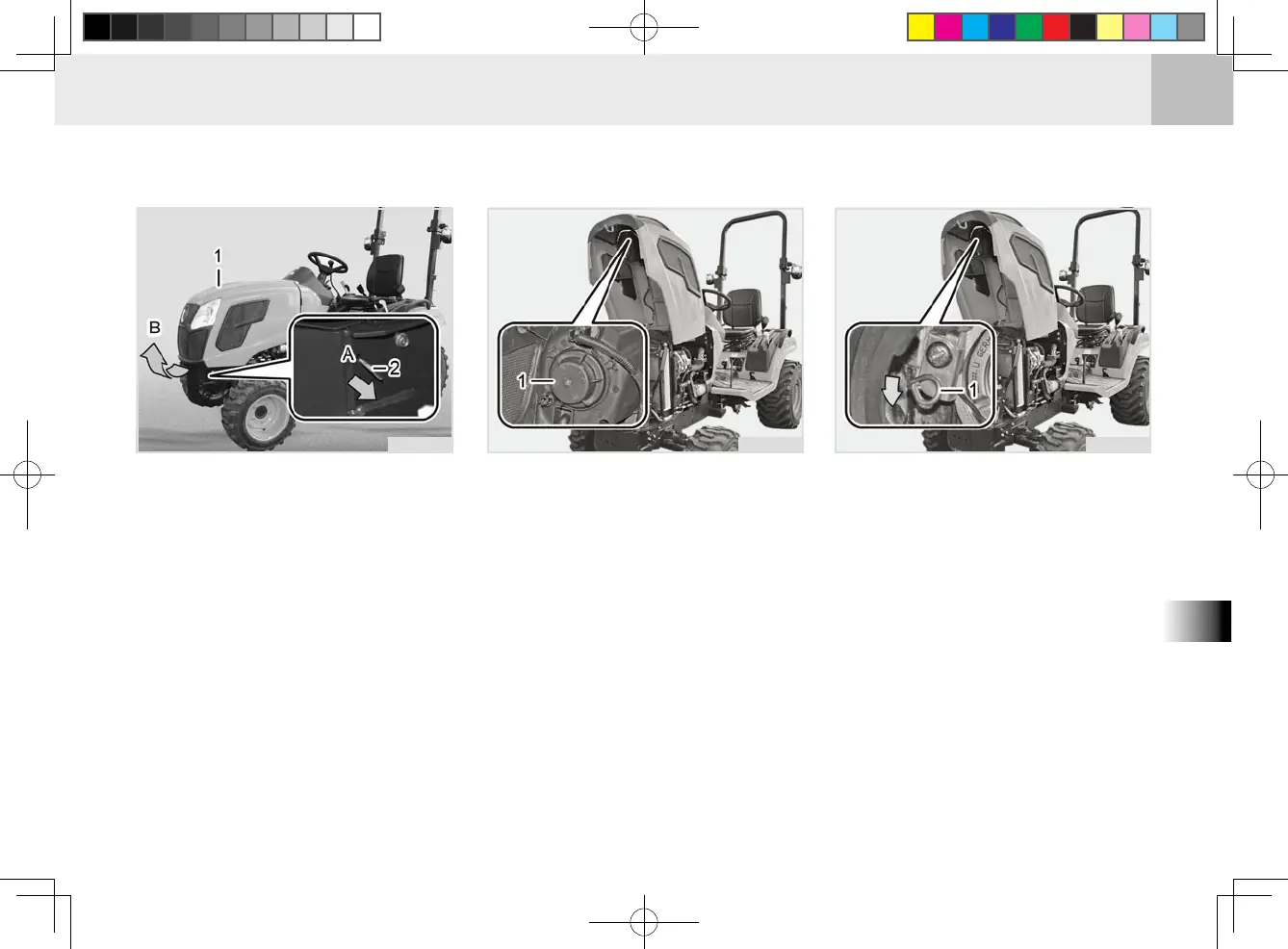

HEAD LAMP
(1) Handle (2) Handle
(A) Pull (B) Open
1. Turn the key switch to the "OFF"
position and open the hood.
(1) Cover
2. Disconnect the connector.
3. Open the cover.
M46O739A tb3O714A
4. Turn the spring counterclockwise
to remove the bulb and replace it
with a new one.
5. Installation is carried out in reverse
order of removal.
(1) Spring
tb3O715A
