4-12 DK35/40/450L
615O425A

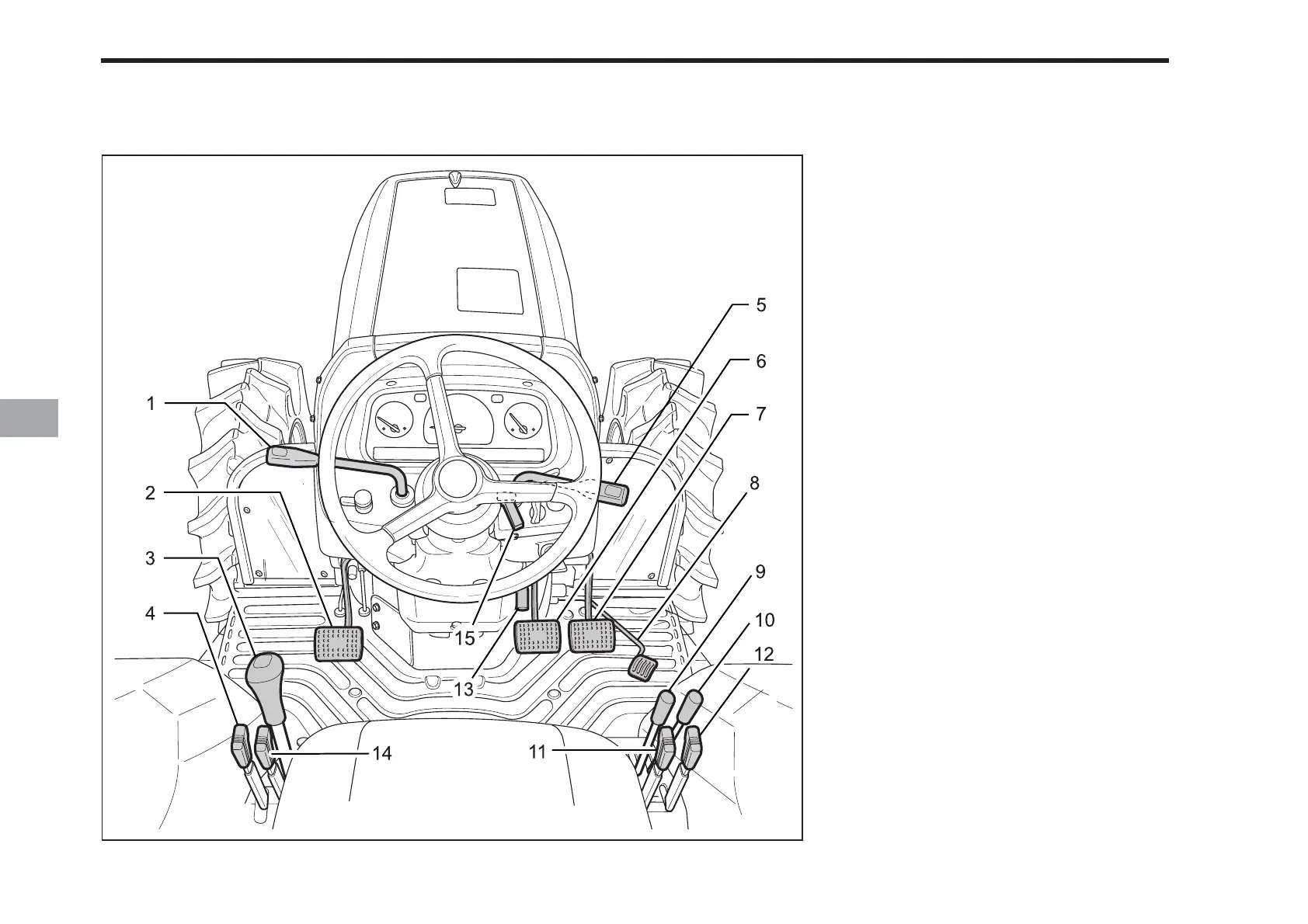

OPERATING THE CONTROLS
(1) Shuttle Shift Lever
(2) Clutch Pedal
(3) Main Gear-Shift Lever
(4) Hi-Lo Shift
(5) Hand Accelerator Lever
(6) Brake Pedal (L)
(7) Brake Pedal (R)
(8) Foot Throttle
(9) Double Action Lever (A, B)
(10)Double Action Lever (C, D) (USA-Option)
(11)Draft Control Lever
(12)Position Control Lever
(13)Parking Brake (Only USA, AU)
(14)Creep Speed Lever (Option)
(15)Tilting Steering Lever
