OPERATING 5-21
615O528A
TIRES
Though the tire pressure is factory-set
to the prescribed level, it naturally drops
slowly in the course of time. Thus, check
it everyday and inflate as necessary.
(A) Insuffient (B) Standard
(C) Excessive
Attachment
Plow and
harrow
Rotavator,
mower,
hayrack and
cultivator
Adjustment of
chain length
Loosen the chain for an
attachment to sway later-
ally by 50 to 60 mm.
(1.97 to 2.36in.)
Fasten lightly

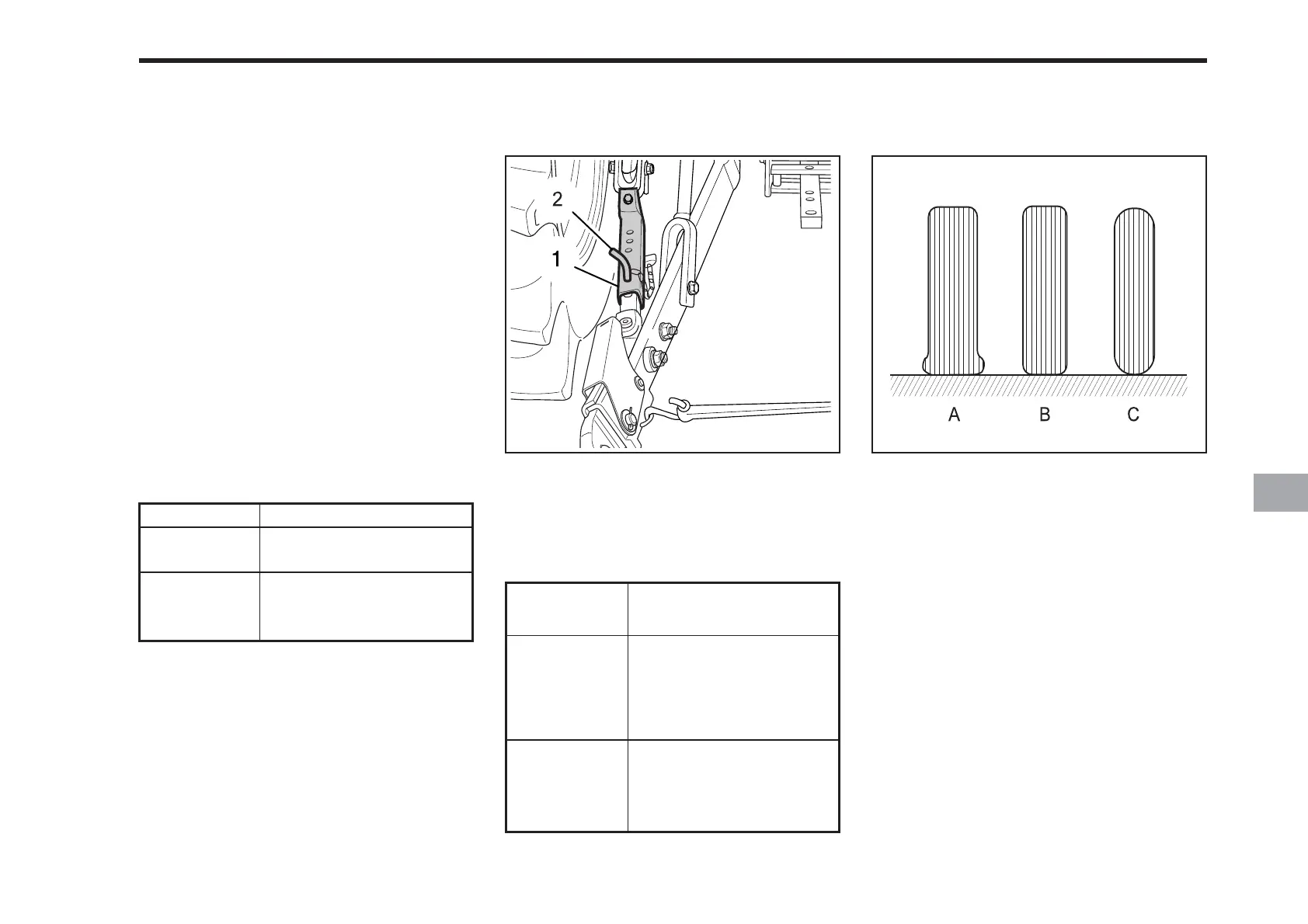

ADJUSTMENT OF CHECK LINK
(WITHOUT AU, DK450L-EU)
Adjust the check links to control horizon-
tal sway of the implement.
615O527A
(1) Check Link (2) Pin
1. Fix lower link (LH. RH) not to touch
with wheels when implement is not
attached.
2. Fix Top link into fixed bracket.
WHEN IMPLEMENT IS NOT ATTACHED
1. Extend or reduce Top link to adjust the
inclination of an attachment.
2. Fix Top link with fixed nut after adjust-
ing top link.
3. The position for mounting Top link var-
ies depending on the kind of attach-
ment.
ADJUSTMENT OF TOP LINK
ADJUSTMENT OF LOWER LINK
Implement
Soil engaging
(plough etc)
Non-soil
engaging
(mower etc)
Stabiliser adjustment
Place pin in slotted hole
Place pin in a non slotted
hole so that implement
cannot sway laterally.
ADJUSTMENT OF LIFT ROD
1. Adjust the length of the lift rod accord-
ing to the property of implement.
A standard length is 430 mm (16.9 in.)
from lifting arm.
2. Fasten the fixed nut after keeping the
implement from leaning by turning.
Turn buckle of the lift rod on the right
side.
