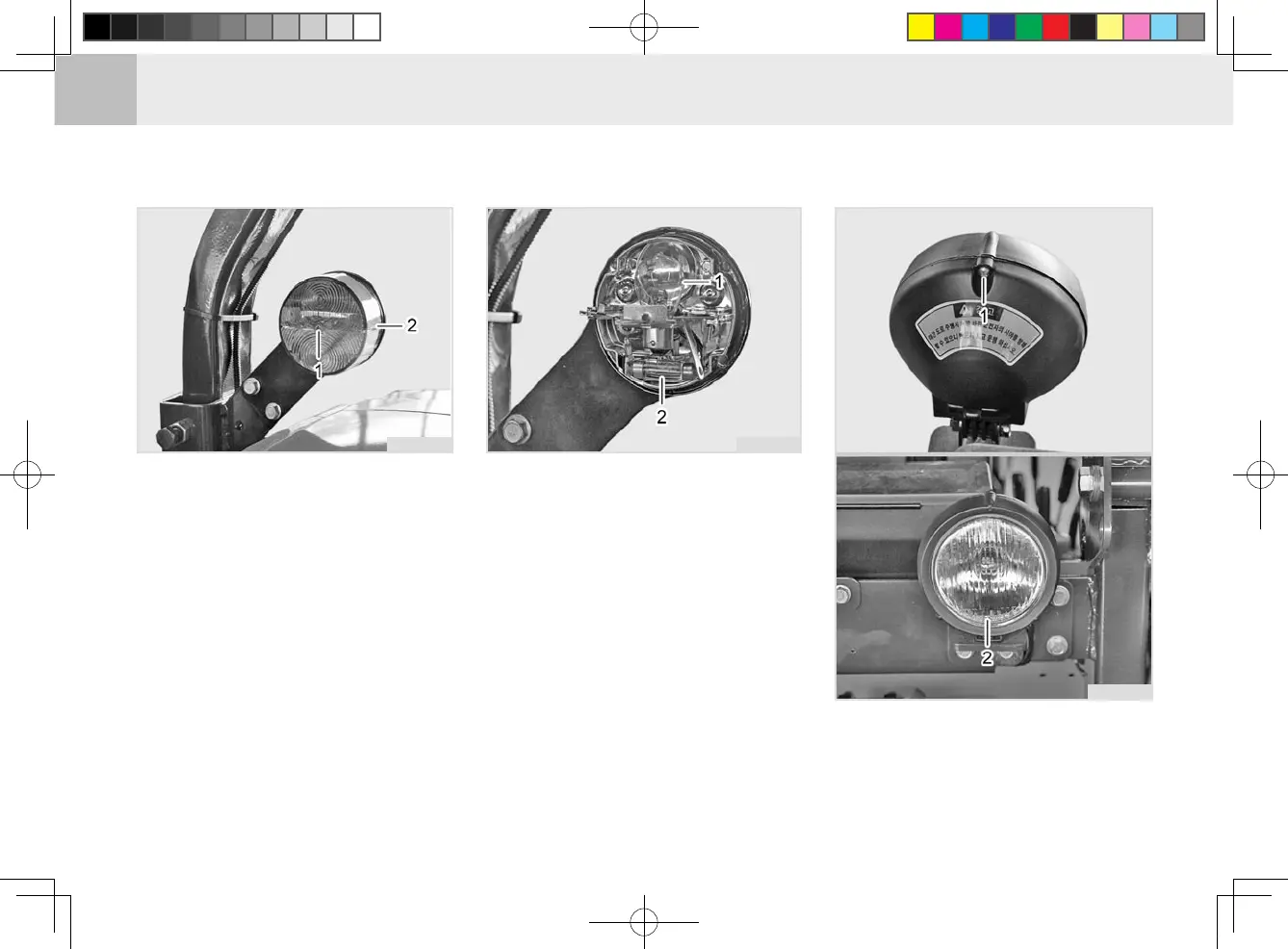

FRONT TURN SIGNAL LAMP AND POSITION LAMP
1. The front turn signal lamps are in
-
stalled onto the ROPS frame.
2.
Loosen the screw to remove the lens.
3. Remove the bulb by turning its
socket counterclockwise. Install a
new bulb.
td2O744A td2O745A
(1) Screw (2) Lens (1) Turn Signal Lamp Bulb
(2) Position Lamp Bulb
BACKUP LAMP
td2O746A
(1) Screw (2) Lens
1.
Loosen the screw to remove the lens.
To Next Page
