(1) Main Shift Lever
(A) Hand Clutch
Tf1O433A

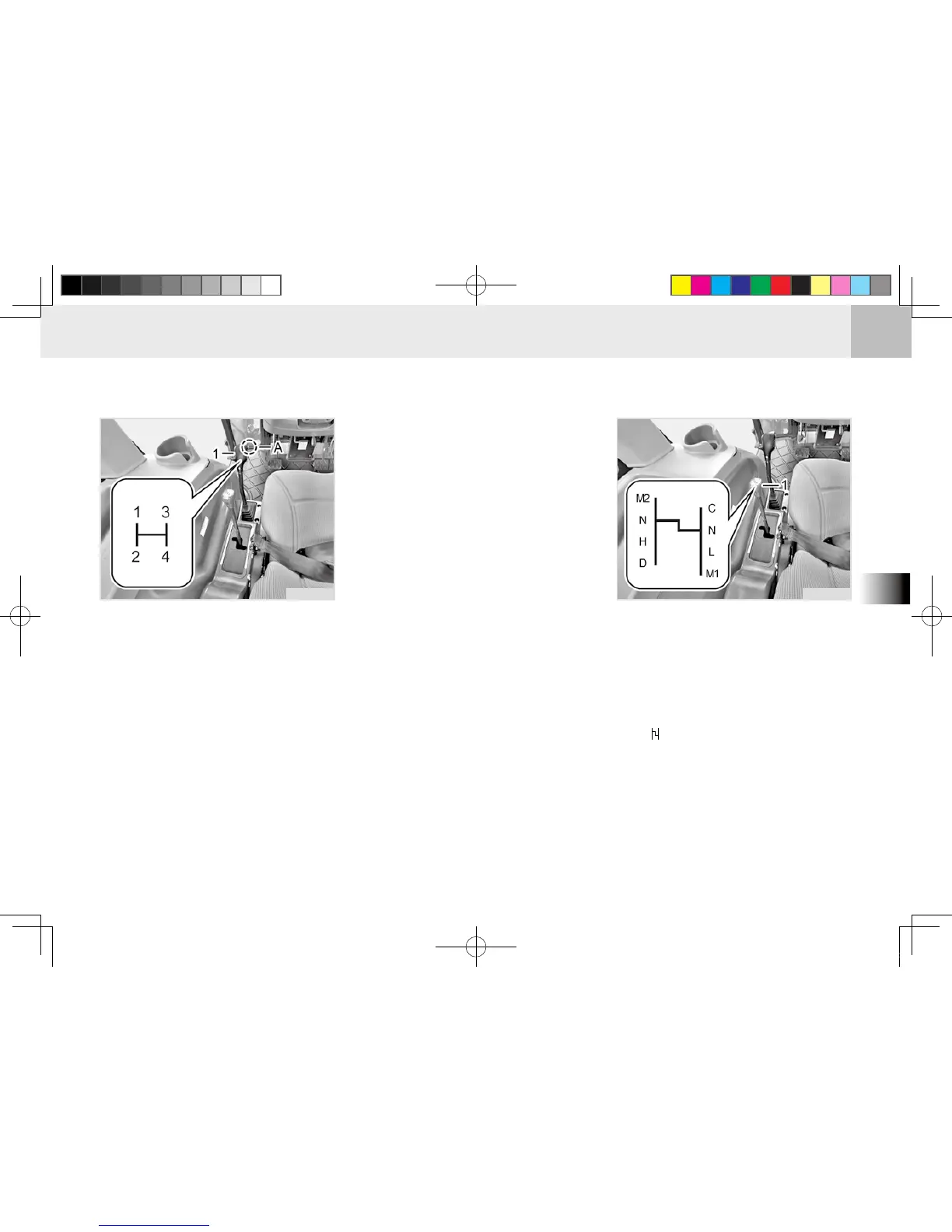

MAIN SHIFT LEVER
Four speeds can be selected by
moving this main shift lever in the
「
H
」
shaped path. It is possible to
shift this lever from the 1st to 4th
gears even when the tractor is mov-
ing by disengaging the clutch as
these gears are synchromeshed.
There are 4 speeds for the main shift
lever, 3 speeds for the range shift
lever and 2 directions for the shuttle
shift lever. Therefore, there are 12
forward driving speeds and 12 re-
verse driving speeds in total.
RANGE GEAR SHIFT LEVER
Tf1O434A
(1) Range Gear Shift Lever (6 Speeds)
(C) Creep Speed (L) Low Speed
(N) Neutral (M1) Middle Speed 1
(M2) Middle Speed 2 (H) High Speed
(D) Drive
6 speeds can be selected by oper-
ating the range gear shift lever in
the
「 」
shaped pattern. Only shift
this lever after the tractor is com-
pletely stopped by depressing
the clutch pedal. If the lever does
not move freely or makes abnormal
noise, put the lever in the neutral po-
sition, depress the clutch pedal, and
then try to shift the lever.
HAND CLUTCH
This functions as the foot clutch ped-
al. When pressing this button during
driving, the main shift lever can be
operated. (Without depressing the
foot clutch pedal)
