KIP 7900 - Page 49

Chapter 3 Error Correction 3-4

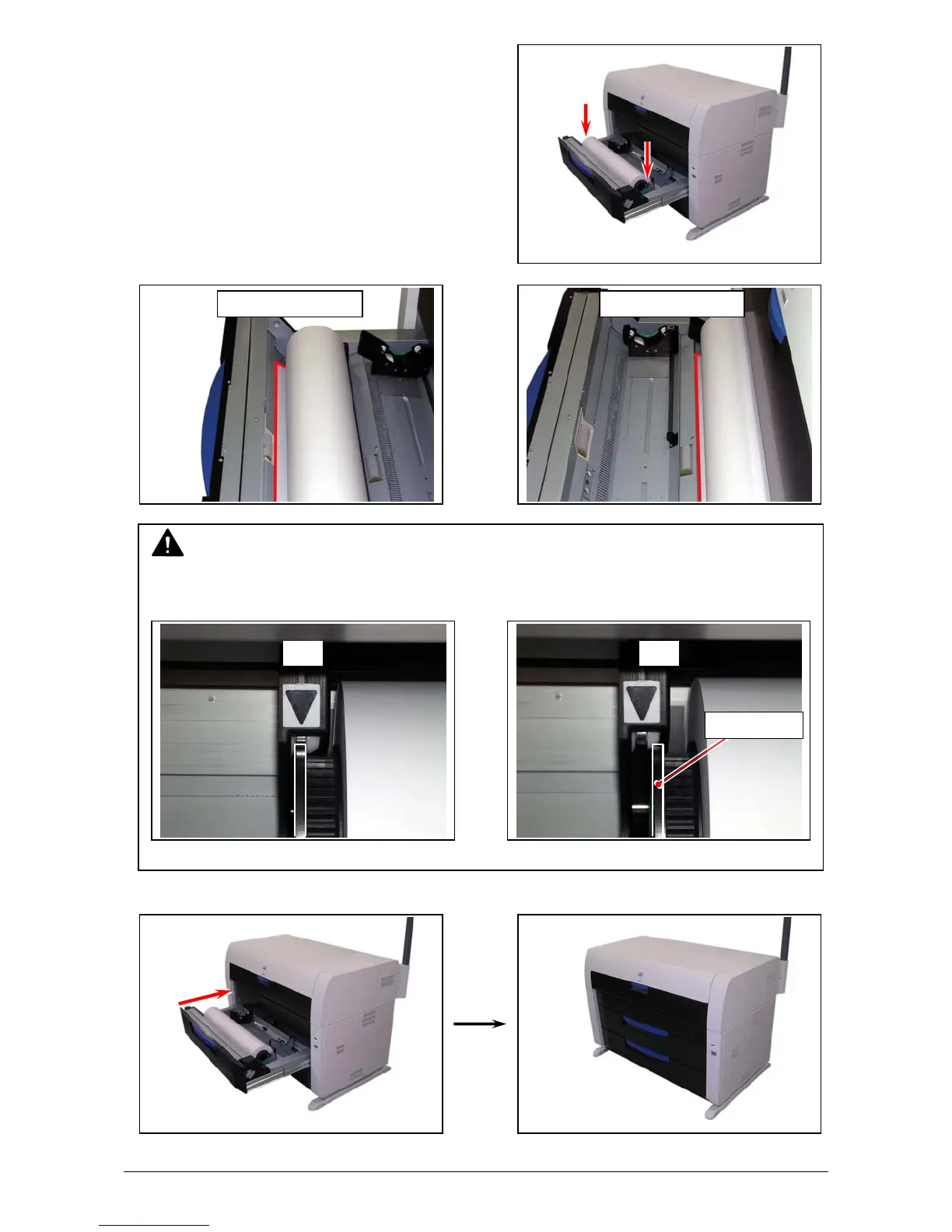

3. Set the roll media correctly.
4. Close the Roll Deck.
NOTE
The outside rim of Flange should meet the black triangle marked on Slide Guide. Otherwise
the roll media may fall in Roll Deck or result in an incorrect media feeding.
Correct Wrong
OK NG
Out of
p
osition
Front Deck
(
Roll 1 / 3
)
Rear Deck
(
Roll 2 / 4
)
