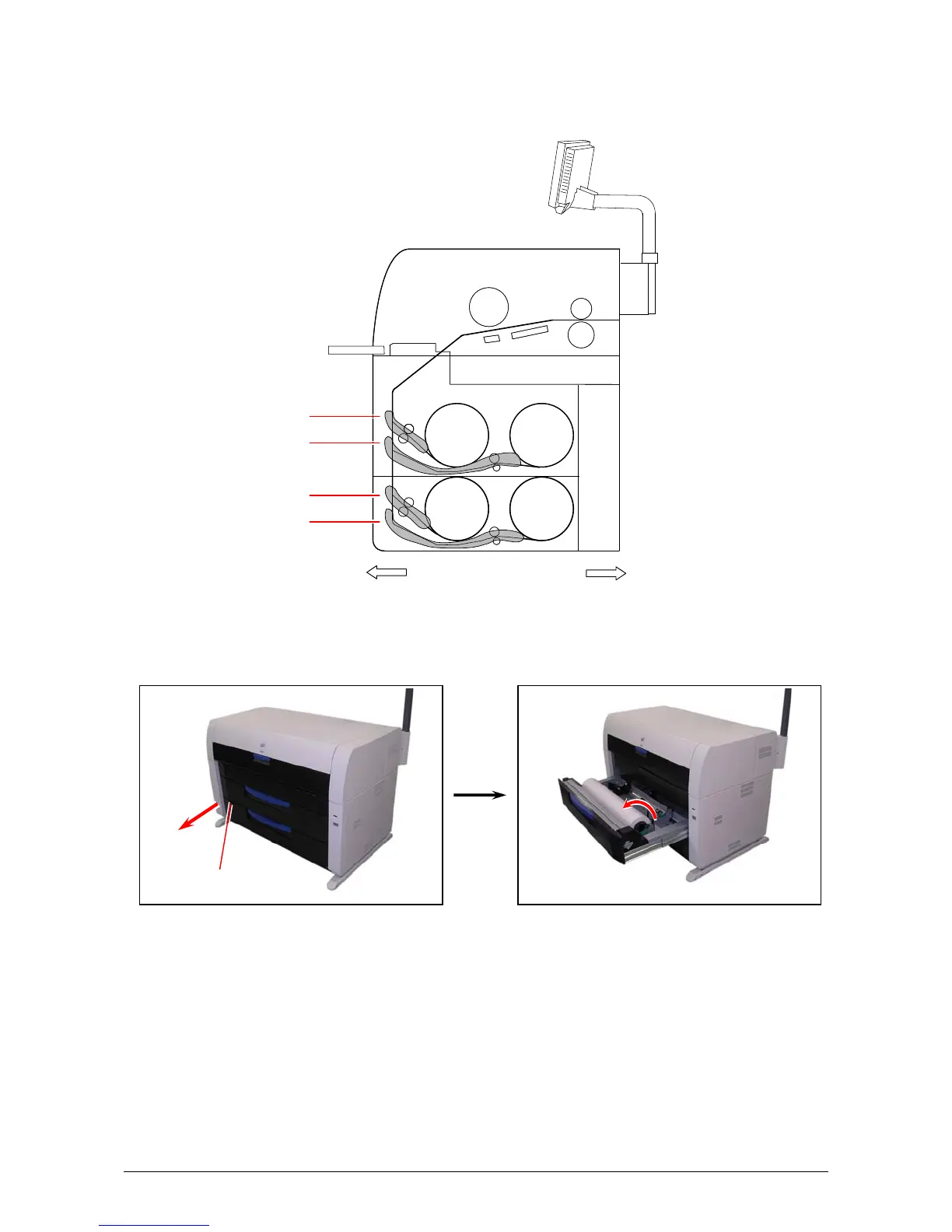

3. 1. 1 Roll Deck Section (J-01, J-02, J-03, J-04)
When a Paper Mis-feed occurs in the Roll Deck, the UI shows J-01 / J-02 / J-03 / J-04.
J-01: Roll 1 (Upper Roll Deck)
J-02: Roll 2 (Upper Roll Deck)
J-03: Roll 3 (Lower Roll Deck)
J-04: Roll 4 (Lower Roll Deck)
Clear the Paper Mis-feed using the following procedure:
1. Open the Roll Deck in issue. And then rewind the roll onto the media core.
2. If the leading edge of the media is torn or folded, cut it off.
Front Rear
J-01
J-02
J-03
J-04
Roll 1 Roll 2
Roll 3
Roll 4
Roll Deck
